SER14xx Series

High Current Shielded Power Inductors

符合RoHS 无卤素 AEC-Q flag
SER14xx Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
  • Rugged flat wire construction
  • Exceptionally low DC resistance
  • Ferrite core for flat L vs. I characteristics
  • Magnetically shielded to minimize EMI
  • AEC-Q200 Grade 1 (−40°C to +125°C) — SER1412 only
立即购买:
计数 单价
1 $3.13
300 $2.50
600 $2.18
1200 $1.69

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C427 13 (3 of each) $55.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
SER1408-301ME_ 0.30 0.48 0.55 140 43.2 49.6 53.0 38.0 42.0
SER1412-301ME_ 0.30 1.3 1.4 154 87.0 92.8 106 30.0 37.0
SER1408-501ME_ 0.50 0.48 0.55 83.0 25.8 29.6 31.4 38.0 42.0
SER1412-501ME_ 0.50 1.3 1.4 122 56.1 59.3 62.5 30.0 37.0
SER1408-681ME_ 0.68 0.48 0.55 63.0 18.8 21.6 23.2 38.0 42.0
SER1412-681ME_ 0.68 1.3 1.4 100 41.2 43.5 45.8 30.0 37.0
SER1408-102ME_ 1.0 0.48 0.55 48.0 12.1 14.2 16.1 38.0 42.0
SER1412-102ME_ 1.0 1.3 1.4 78.0 28.9 31.0 32.2 30.0 37.0
SER1410-152ME_ 1.5 0.90 0.99 53.0 16.8 18.9 20.3 33.0 39.0
SER1412-152ME_ 1.5 1.3 1.4 62.0 21.8 23.6 24.6 30.0 37.0
SER1410-202ME_ 2.0 0.90 0.99 45.0 12.1 13.9 15.0 33.0 39.0
SER1412-202ME_ 2.0 1.3 1.4 50.0 16.9 18.5 19.4 30.0 37.0
SER1412-362ME_ 3.6 1.3 1.4 35.0 9.6 11.2 12.1 30.0 37.0
注释
  1. When ordering, please specify termination and packaging codes: e.g. SER1410-202MED
  2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF840 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4395A network analyzer and an Agilent/HP 16193A test fixture. Details
  5. Isat: Typical dc current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Typical current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • E = RoHS compliant tin-silver over copper.
  • T = RoHS tin-silver-copper over copper (95.5/4/0.5). (Special order, added cost)
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape
  • SER1408: 300 parts/full reel;  SER1410SER1412: 250 parts/full reel
  • B = Less than full reel
    In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C with (40°C rise) Irms
储存温度范围:
Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+165°C (ambient + temp rise).
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

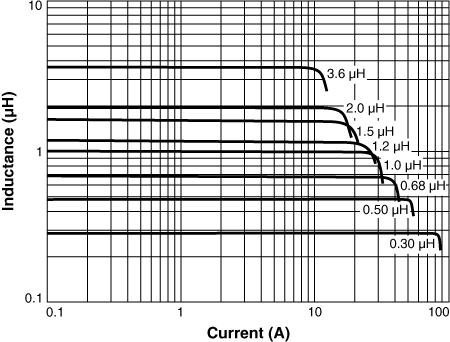

Inductance vs Current

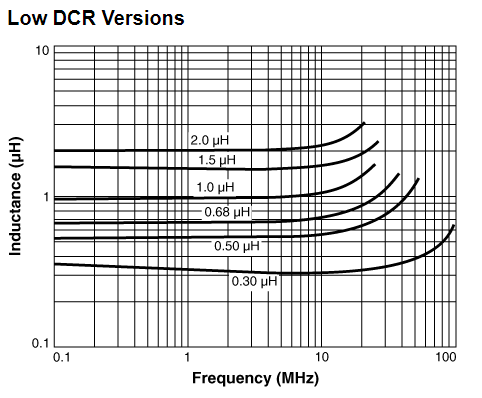

Inductance vs Frequency

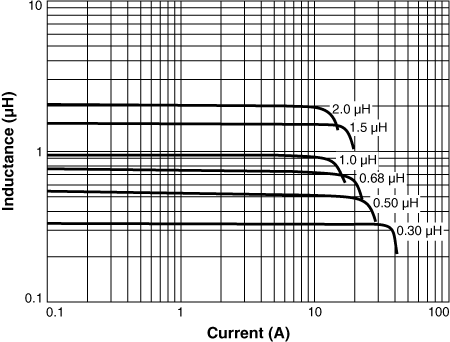

Inductance vs Current

Inductance vs Frequency

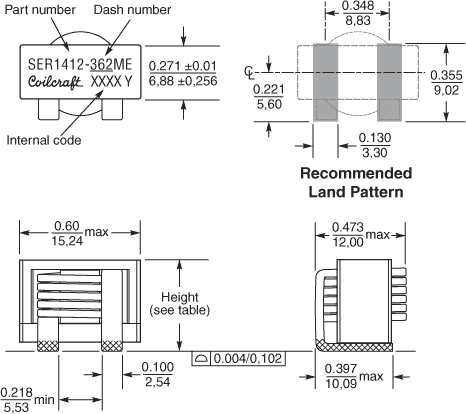

物理特性




Series Height max
(inches / mm)
SER1408 0.325 / 8,26
SER1410 0.416 / 10,56
SER1412 0.498 / 12,66

卷装规格




  Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
  13" (330 mm) A B C D E W P Po P1 H T
SER1408 300 330 100 13 38,4 32,4 32 20 4 2 8,6 0,5 part_or_bp.gif
SER1410 250 330 100 13 38,4 32,4 32 20 4 2 10,8 0,5
SER1412 250 330 100 13 38,4 32,4 32 20 4 2 12,8 0,5

一般规格

核心材料:
Ferrite
重量:
SER1408 = 3.5 – 3.8 g; SER1410 = 4.8 – 5.2 g; SER1412 = 6.1 – 6.7 g
包装:
SER1408: 300/13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 8.6 mm pocket depth
SER1410: 250/13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 10.8 mm pocket depth
SER1412: 250/13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 12.8 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
