SER1590 Series

High Current Shielded Power Inductors

符合RoHS AEC-Q flag
SER1590 Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
  • Rugged flat wire construction
  • Exceptionally low DC resistance
  • Ferrite core for flat L vs. I characteristics
  • Magnetically shielded to minimize EMI
  • AEC-Q200 Grade 3 (-40°C to +85°C)
立即购买:
计数 单价
1 $2.07
250 $1.65
500 $1.44
1000 $1.12
2500 $0.96
5000 $0.88

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C366 9 (4 of each) $60.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop
SER1590-301ML_ 0.30 0.66 0.72 260 53.0 56.0 57.0 32.0
SER1590-501ML_ 0.50 0.87 0.94 202 39.0 42.0 44.0 27.0
SER1590-601ML_ 0.60 0.87 0.94 182 33.0 35.0 36.0 27.0
SER1590-681ML_ 0.68 0.87 0.94 160 30.0 32.0 33.0 27.0
SER1590-801ML_ 0.80 0.87 0.94 123 25.0 26.0 27.0 27.0
SER1590-901ML_ 0.90 1.08 1.15 160 27.0 28.0 29.0 22.0
SER1590-102ML_ 1.0 0.87 0.94 115 20.0 22.0 23.0 27.0
SER1590-122ML_ 1.2 1.08 1.15 90.0 20.0 22.0 23.0 22.0
SER1590-152ML_ 1.5 1.08 1.15 73.0 17.0 18.0 19.0 22.0
注释
  1. When ordering, please specify termination and packaging codes: e.g. SER1590-102MLD
  2. . Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/ HP 4284A LCR meter or equivalent.
  3. DCR measured at 25°C on a Keithley 580 micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
    Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves. When Irms is greater than Isat, Isat is the more critical specification and Irms is shown in gray type. See temperature rise vs Current.

端子:

  • L = RoHS compliant tin-silver-copper (96.5/3.5) over copper.
  • T = RoHS tin-silver-copper over copper(95.5/4/0.5) over copper. (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

  • 13" reel, machine-ready
    EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel
    Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C with (40°C rise) Irms
储存温度范围:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+125°C (ambient + temp rise).
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

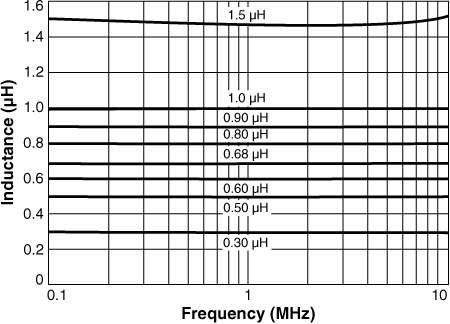

Inductance vs Frequency

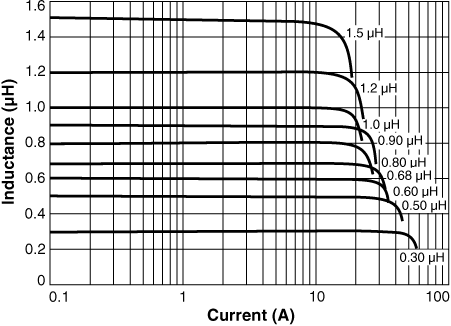

Inductance vs Current

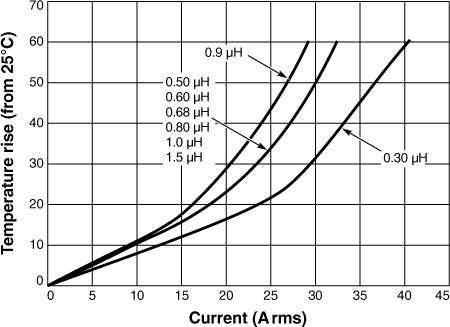

Temperature Rise vs Current

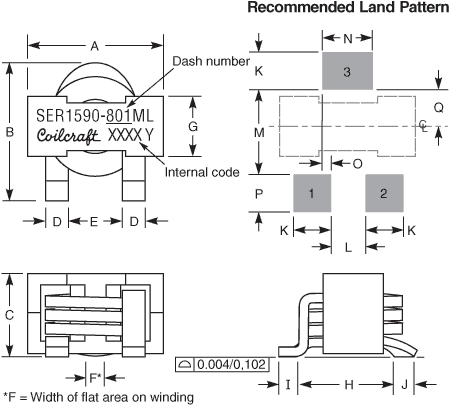

物理特性


A max B max C max D E F G H
0.62 0.64 0.40 0.10 0.23 0.09 0.260 ±0.006 0.45 inches
15,75 16,26 10,16 2,54 5,84 2,29 6,60 ±0,15 11,43 mm

I J K L M N O P Q
0.08 0.10 0.15 0.18 0.35 0.25 0.035 0.16 0.15 inches
2,03 2,54 3,81 4,57 8,89 6,35 0,89 4,06 3,81 mm


卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_r.gif
250 330 100 13 38,4 32,4 32 32 4 2 10,4 0,4

一般规格

核心材料:
Ferrite
重量:
4.14 – 5.2 g
包装:
250 per 13″ reel; Plastic tape: 32 mm wide, 0.4 mm thick, 32 mm pocket spacing, 10.4 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
