Datasheet 3Dモデル

GA3568, HA3809 Flyback Transformers

for Akros AS1135 PoE Controller

Referenced on Akros Silicon Application Note AN025
Designed for 30 Watt applications
For 13 Watt applications see HA3585-BL / HA3586-BL

今すぐ購入:

部品番号

部品を検索

個数	単価
1	$5.46
100	$4.96
250	$4.13
500	$3.49
1000	$3.01
2500	$2.59
5000	$2.38

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Packaging

D = 13" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

部品番号

部品を検索

一般的な用途

Akros Silicon AS1135に対応

部品番号	入力電圧	出力 1		電力	Fsw
部品番号	入力電圧	Sec	Sync	電力	Fsw
HA3809-ALD	10 V — 57 V	3.3 V , 9.1 A	5 V , 0.02 A	30 W	300 kHz
GA3568-DLD	36 V — 57 V	3.3 V , 9.1 A	5 V , 0.02 A	30 W	300 kHz

仕様

Electrical specifications at 25°C.

部品番号 2 (Hover for schematics)	インダクタンス＠0A (µH) 3 (公差: ±10%)	最小インダクタンス (µH)	DCR max 4				漏れインダクタンス最大 (µH) 5	巻数比 6	絶縁電圧 (Vrms) 7
部品番号 2 (Hover for schematics)	インダクタンス＠0A (µH) 3 (公差: ±10%)	最小インダクタンス (µH)	Pri (Ω)	Sec (mΩ)	Bias (mΩ)	Sync (mΩ)	漏れインダクタンス最大 (µH) 5	Pri : Sec : Bias : Sync	絶縁電圧 (Vrms) 7
HA3809-ALD	30	25 @ 3.9 A	0.042	10.000	165.000	165.000	0.68	1 : 0.176 : 0.29 : 0.29	1500
GA3568-DLD	60	54 @ 2.6 A	0.132	5.500	200.000	220.000	1.2	1 : 0.167 : 0.29 : 0.29	1500

メモ

Output of the secondary is with the windings connected in parallel. Bias winding output is 5 V, 20 mA.
When ordering, please specify termination and packaging codes: HA3809-ALD
. Inductance is for the primary, measured at 300 kHz, 0.7 Vrms. For the GA3568-DL inductance is per winding.
DCR for the secondary is with the windings connected in parallel. For GA3568-DL DCR for the primary is with both windings connected in parallel.
Leakage inductance is for the primary windings with the secondary windings shorted
Turns ratios are for the primary (windings connected in parallel for the GA3568-DL) and with the secondary windings connected in parallel.
1500 Vrms, one minute isolation from primary and bias to secondary

終端処理:

L = RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order)
S = non-RoHS tin-lead (63/37). (Special order)

パッケージ:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

環境

環境:

RoHS準拠

周囲温度範囲:

–40°C to +125°C

保管温度範囲:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

回路図

Primary windings and secondary windings each to be connected in parallel on the PC board.

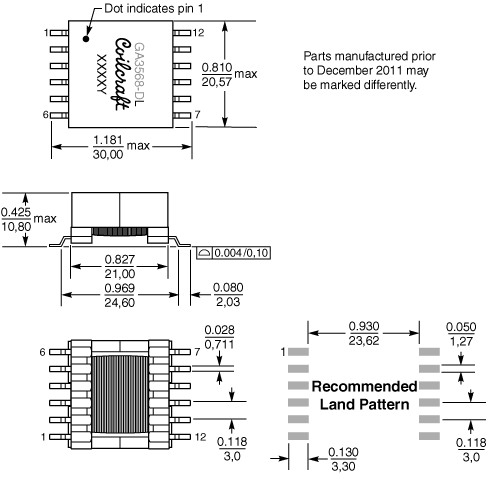

物理的特徴

テープ＆リール仕様

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	12,0	0,4

一般仕様

コア材料:

Ferrite

重量:

11.4 – 11.8 g

パッケージ:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
