3D Model Datasheet

C1023 PoE Transformer

for TI LM5070 PoE Interface

Developed for the TI LM5070 PD Interface in 13 W applications
Operates at frequencies up to 1 MHz
RoHS-compliant 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations

今すぐ購入:

個数	単価
1	$4.49
175	$3.84
700	$3.34
1400	$2.91
2800	$2.50
5000	$2.29

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Packaging

D = 13" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

一般的な用途

Texas Instruments LM5070に対応

入力電圧	出力	電力	Fsw
36 V — 72 V	3.3 V , 4.5 A	15 W	1000 kHz

仕様

Electrical specifications at 25°C.

部品番号 1 (Hover for schematics)	インダクタンス＠0A (µH) 2 (公差: ±10%)	最小インダクタンス＠ 1.5 A (µH)	DCR max (Ω) 3			漏れインダクタンス最大 (µH) 4	巻数比 5	絶縁電圧 (Vrms) 6
部品番号 1 (Hover for schematics)	インダクタンス＠0A (µH) 2 (公差: ±10%)	最小インダクタンス＠ 1.5 A (µH)	Pri	Sec	Bias	漏れインダクタンス最大 (µH) 4	Pri : Sec : Bias	絶縁電圧 (Vrms) 6
C1023-AL_	110	99	0.139	0.016	0.656	1.4	1 : 0.19 : 0.69	1500

メモ

When ordering, please specify packaging code: e.g. C1023-ALD
Inductance is for the primary, measured at 10 kHz, 0.1 Vrms, 0 Adc.
DCR for the secondary is per winding.
Leakage inductance is for the primary winding with all other pins shorted.
Turns ratio is with the secondary windings connected in parallel.
1500 Vrms, one minute isolation (hipot). Isolation is measured from the primary and aux to the secondary.

終端処理:

RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze. Other terminations available at additional cost.

パッケージ:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (175 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

環境

環境:

RoHS準拠

周囲温度範囲:

–40°C to +85°C

保管温度範囲:

Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

回路図

Secondary windings to be connected
in parallel on the PC board.

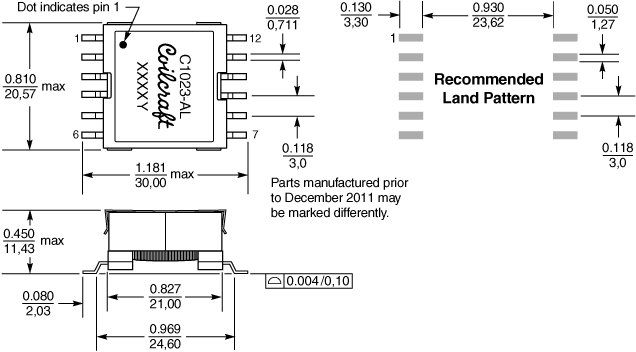

物理的特徴

テープ＆リール仕様

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	11,9	0,4

一般仕様

コア材料:

Ferrite

重量:

12.4 g

パッケージ:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
