SMT Wideband Transformers

for ADI D/A Converter

RoHS-konform
  • Developed for Analog Devices D/A High-Speed Converters
  • 400 Vrms primary to secondary isolation
  • 250 mA maximum current rating
  • Tapped secondary
Jetzt kaufen:

The part number you have selected is not available through our online store.

Please click the "Request Quote" button for pricing and more information.

. Auf Lager, noch heute versandbereit.
Muster anfordern:

Technische Daten

Electrical specifications at 25°C. Measurements are referenced to 50 Ohms.

Teilenummer 1 L pro Wicklung (µH) DCR max (Ω) 2 Imp. ratio
pri:sec 3
Nennstrom (mA) Einspeisungs-
dämpfung (db)
Bandbreite (MHz) Farbpunkt
Pri Sec Pri Sec
Z9280-AL 9,5 9,5 0,075 0,075 1 : 1 250 0,58 0,25 450 Orange
Z9314-AL 30,0 4,5 0,080 0,038 1 : 6,25 250 1,1 0,35 1700 Black
Hinweise
  1. When ordering, please specify termination and packaging codes: e.g. Z9280-ALC
  2. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  3. Impedance ratio is for the full primary winding to the full secondary winding.

Anschlüsse:

  • L = RoHS compliant tin-silver-copper over silver-platinum-glass frit.
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

  • 7" reel, machine-ready
    EIA-481 embossed plastic tape, special order (250 parts per full reel).
  • B = Less than full reel
    In tape, not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
  • 13" reel, machine-ready
    EIA-481 embossed plastic tape. Factory order, not stocked (1000 parts per full reel).
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform
Umgebungstemperaturbereich:
–40°C to +85°C
Lagertemperaturbereich:
Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):
60 per billion hours / 16,666,667 hours, calculated per Telcordia SR-332

Kennlinien

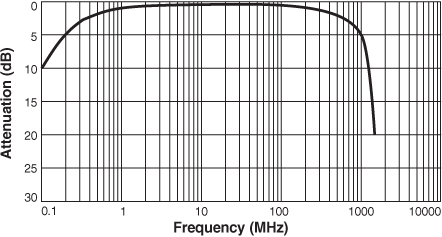

Frequency Response

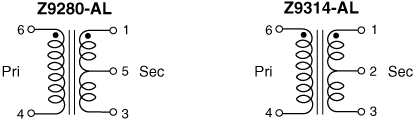

Pläne/Diagramme

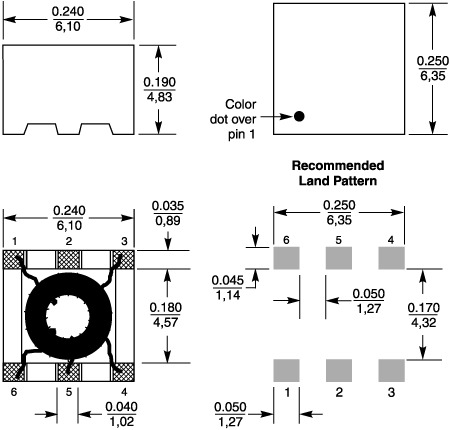

Physikalische Eigenschaften


All dimensions ±0.005" (±0,127 mm)

Gurt/Rolle-Spezifikationen



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_w.gif
250 1000* 178/330 60/100 13 22,4 16,4 16 12 4 2 4,83 0,34
* Special order

Allgemeine Spezifikation

Kernmaterial:
Ferrite
Gewicht:
0.4 g
Verpackung:
250/7″ reel; 1000/13″ reel; Plastic tape: 16 mm wide, 0.343 mm thick, 12 mm pocket spacing, 4.83 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
