XEL4012V, 4014V High Voltage

Shielded Power Inductors

Exceptionally low DCR and ultra low AC losses for high-switching
frequencies (2 to 5 MHz)
Superior current handling with soft saturation characteristics
Composite construction minimizes audible buzzing
High-voltage rating of 120 V—50% higher than the standard series.
Learn more about Voltage Ratings for Inductors
AEC-Q200 Grade 1 (−40°C to +125°C)
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
For higher Isat ratings, consider our XEL4020V and XEL4030V Series
COTS Plus tin-silver-copper and tin-lead terminations available

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$2,10
100	$1,85
250	$1,38
500	$0,84
1000	$0,65
2500	$0,57
5000	$0,51

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

Tolerance

N = 30%

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C. Operating voltage 0 – 120 V

Teilenummer 1	Induktivität (nH) 2	Toleranz (%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
Teilenummer 1	Induktivität (nH) 2	Toleranz (%)	typ	max	SRF typ (MHz) 4	Isat (A) 5	20°C rise	40°C rise
XEL4012V-920	92	30	5,2	5,7	279	24,0	11,5	16,5
XEL4012V-221	220	30	9,7	10,6	146	16,0	6,5	9,0
XEL4014V-221	220	20	7,5	9,5	150	18,2	9,0	12,0
XEL4014V-331	330	20	9,9	12,0	110	14,6	6,5	9,0
XEL4014V-561	560	20	16,5	18,4	80	11,6	5,5	7,5
XEL4014V-781	780	20	20,3	22,8	70	9,8	5,0	6,5

Hinweise

When ordering, please specify packaging code: e.g. XEL4014V-781MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes a 30% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Anschlüsse:

RoHS compliant, tin-silver over copper.

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (4000 parts per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +125°C with (40°C) Irms current

Lagertemperaturbereich:

Component: –55°C to +165°C
Tape and reel packaging: –55°C to +80°C

Maximale Bauteiltemperatur:

+165°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

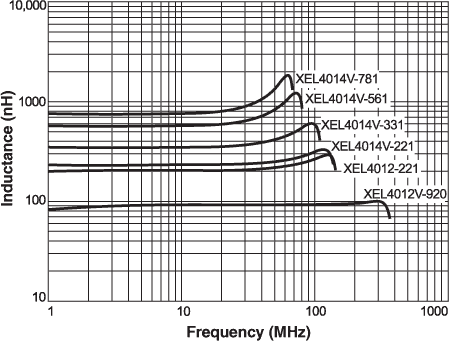

Inductance vs. Frequency

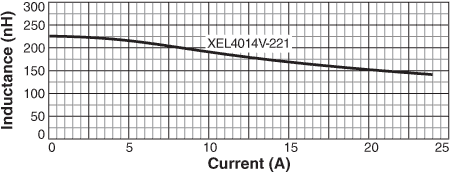

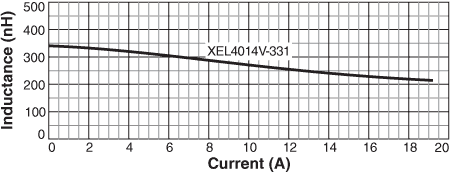

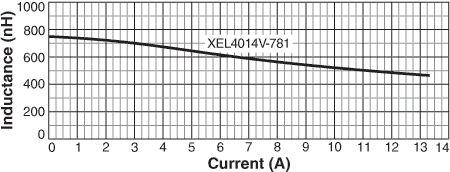

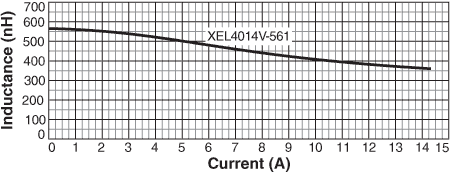

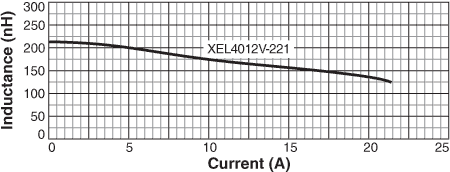

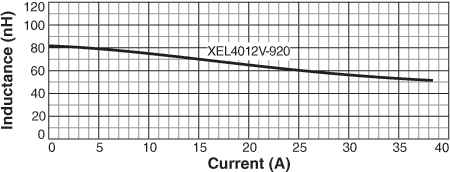

L vs. Current

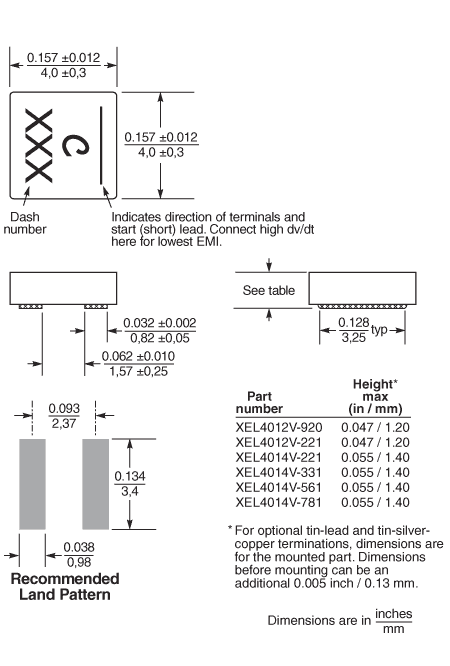

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

	Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)
	7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
XEL4012	1500	5000*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,40	0,23
XEL4014	1000	4000*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,78	0,23

* Special order

Allgemeine Spezifikation

Kernmaterial:

Composite

Gewicht:

0.11 g

Verpackung:

XEL4012V: 1500/7″ reel; 5000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.40 mm pocket depth
XEL4014V: 1000/7″ reel; 4000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.78 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
