CST2010V Series

SMT Current Sense Transformers

High isolation voltage CST2010 current sense transformer
Sensed current up to 40 A
Designed for use up to 1 MHz and above
2100 Vrms, one minute isolation (hipot) between windings
AEC-Q200 qualified
Designed to comply with IEC61558-1, IEC62369-1, and IEC60664-1 for providing Reinforced or Basic Insulation
- 5.5 mm creepage and 5.0 mm clearance to meet reinforced insulation for working voltage up to 136 V and basic insulation for working voltage up to 550 V with material group 3, pollution degree P2, OVCII, and altitude up to 2 km.

立即购买:

计数	单价
1	$3.08
250	$2.63
500	$2.31
1000	$2.00
2500	$1.71
5000	$1.57

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (mH) 1 (公差: ±30%)	DCR max 2		匝数比	电压-时间乘积 (V-µs) 3	频率 (kHz) 4	电流 (A) 5	终端电阻 R_T (Ω) 6	隔离电压 (Vrms) 7
零件号 (Hover for schematics)	0A时的电感 (mH) 1 (公差: ±30%)	Pri (Ω)	Sec (Ω)	Pri : Sec	电压-时间乘积 (V-µs) 3	频率 (kHz) 4	电流 (A) 5	终端电阻 R_T (Ω) 6	隔离电压 (Vrms) 7
CST2010V-150LD	19	0.00036	3.6	1 : 150	381	1 — >1000	40	4	2100

注释

Inductance measured between secondary pins at 1 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Volt-time product is for the secondary, between pin 2 and 4.
For specific questions regarding frequency range, please contact us at [email protected].

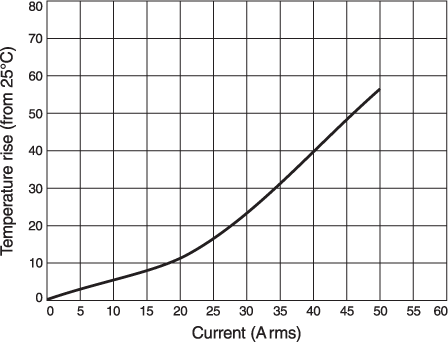

Primary current of 40 A causes approximately 40°C temperature rise from 25°C ambient. Higher current causes a greater temperature rise (see Temperature Rise vs Current curve).
Terminating resistance (R_T) value is based on 1 Volt output with 40 Amps flowing through the primary. Varying terminating resistance increases or decreases output Voltage/Ampere according to the following equation:
R_T= V_out × N_sec / I_in.
2100 Vrms, one minute isolation (hipot) winding to winding.

端子:

RoHS compliant tin-silver over tin over nickel over phos bronze (pins 2-4);
RoHS compliant matte tin over nickel over copper (pins 11-12)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +165°C.
Tape and reel Packaging: –40°C to +80°C

最高元件温度:

+165°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

原理图

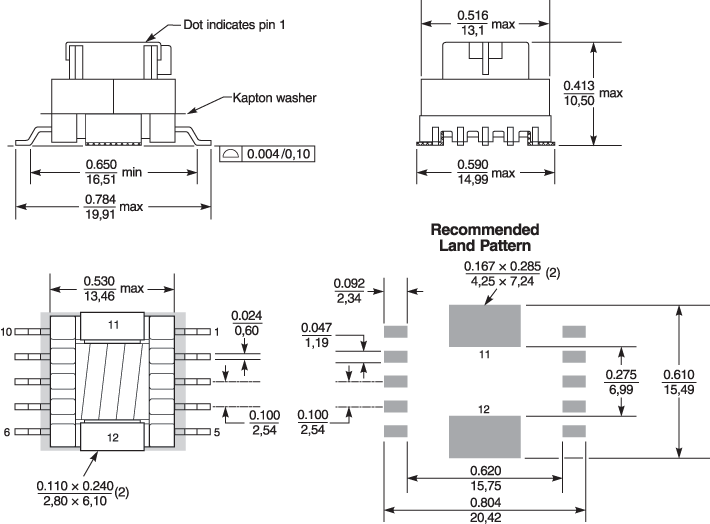

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	330	100	13	38,4	32,4	32	20	4	2	11,2	0,5

一般规格

核心材料:

Ferrite

重量:

3.8 g

包装:

250/13″ reel; Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 11.2 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
