High Frequency Current Sense Transformers

符合RoHS
  • For use at frequencies up to 1000 kHz
  • Incorporates current and sense windings in one small, encapsulated package
  • Designed to meet UL/CSA/IEC 60950 Reinforced Insulation; 3 mm creepage/clearance
  • Samples of all values plus sensor-only versions available in Coilcraft Designer's Kit P403
立即购买:
计数 单价
1 $5.57
100 $4.64
250 $3.86
500 $2.68
1000 $2.15
2500 $1.94
5000 $1.77

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
P403 10 (17 total) $50.00

规格

Electrical specifications at 25°C.

零件号 最小
电感 (mH) 1
DCR max (Ω) 2 匝数比 电压-时间
乘积 (V-µs) 3
频率 (kHz) 电流 (A) 终端
电阻 RT (Ω) 4
隔离
电压 (Vrms) 5
Pri Sec Pri : Sec
CS4050V-01L 5.0 0.0010 0.70 1 : 50 149 3 1000 35.0 1.4 3750
CS4100V-01L 20 0.0010 1.4 1 : 100 298 2 1000 35.0 2.9 3750
CS4200V-01L 80 0.0010 4.0 1 : 200 596 1 1000 35.0 5.7 3750
注释
  1. Inductance is for the secondary, measured at 15.75 kHz, 1 Vrms.
  2. DCR at 25°C, For other operating temperatures,use this DCR at Temperature calculator.
  3. Volt-time product is for the secondary, based on 2000 Gauss.
  4. Terminating resistance (RT) value is based on 1 Volt output with 35 Amps flowing through the primary. Varying terminating resistance increases or decreases output Voltage/Ampere according to the following equation:
    RT = Vout × Nsec / Iin.
  5. 3750 Vrms, one minute winding to winding isolation (hipot).

端子:

  • RoHS-compliant. Tin-silver over copper terminations.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C
储存温度范围:
Component: −40°C to +85°C
Packaging tubes: −40°C to +80°C

原理图

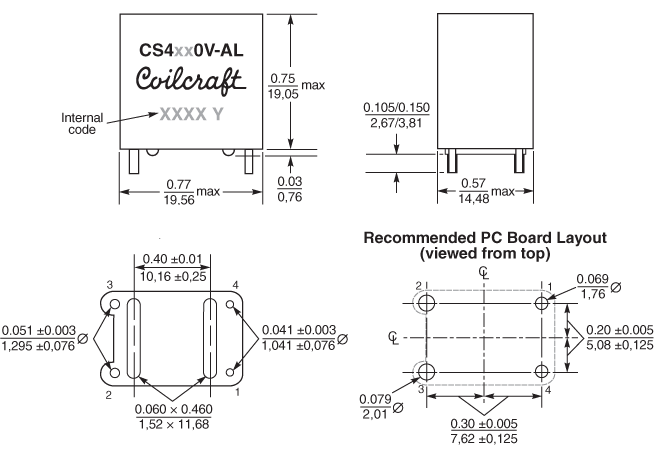

物理特性


一般规格

重量:
8.8 – 9.3 g
包装:
29 parts per tube

清洗

PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
