SD54-104

符合RoHS

有关该元件的更多信息和规格。

前往系列
立即购买:
计数 单价
1 $1.10
400 $0.82
800 $0.48
1600 $0.38
3200 $0.33
4800 $0.30

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±10%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
SD54-104KL_ 100 503 553 7.4 0.62 0.72 0.77 0.64 0.88
注释
  1. When ordering, please specify packaging code: e.g.SD54-224-KLC
  2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4284A impedance analyzer or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • RoHS compliant tin-silver over tin over nickel over silver.

包装:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (400 parts per full reel).
  • B = Less than full reel
    In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter C instead.
  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape. Factory order only, not stocked (1500 paets per full reel).
环境
环境:
符合RoHS
环境温度范围:
−40°C to +85°C with (40°C rise) Irms
储存温度范围:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

Inductance vs. Current

Inductance vs. Frequency

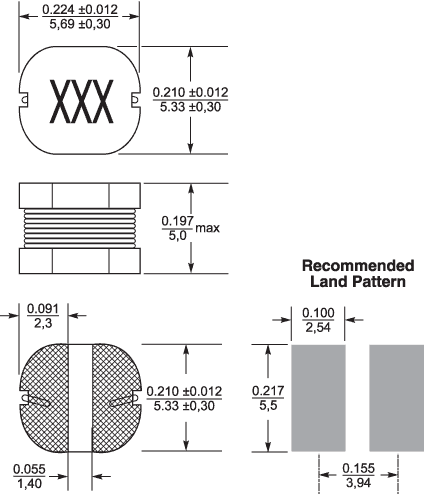

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_q-(1).gif
400 1500* 178/330 60/100 13 18,4 12,4 12 8 4 2 4,7 0,4
* Special order


一般规格

核心材料:
Ferrite
重量:
0.35 – 0.43 g
包装:
400/7″ reel; 1500/13″ reel; Plastic tape: 12 mm wide, 0.4 mm thick, 8 mm pocket spacing, 4.7 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
