XGL1313 Series

Ultra-Low Loss Shielded Power Inductors

符合RoHS 无卤素 AEC-Q flag
XGL1313 molded power inductors offer our lowest DC losses and extremely low AC losses for a wide range of DC-DC converters.  Additional performance benefits include a wider range of inductance values and improved Irms current ratings.
  • Industry’s lowest DCR and low power losses
  • Wide inductance range up to 47 µH
  • High current handling with soft saturation characteristics
  • AEC-Q200 Grade 1 (–40°C to +125°C) with a 165°C max part temperature

立即购买:
计数 单价
1 $6.83
200 $5.51
600 $3.31
1000 $2.57
2600 $2.21
5000 $2.02

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C518 11 (3 of each) $45.00

规格

Electrical specifications at 25°C. Operating voltage 0 — 60 V

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
XGL1313-152MED 1.5 1.0 1.2 30.0 24.5 39.0 53.0 35.4 48.7
XGL1313-222MED 2.2 1.4 1.6 25.0 21.0 33.5 46.0 32.9 45.1
XGL1313-332MED 3.3 2.0 2.3 20.0 18.0 29.0 40.0 28.9 39.7
XGL1313-472MED 4.7 2.5 2.8 16.0 16.0 25.0 35.0 26.7 36.7
XGL1313-682MED 6.8 3.8 4.3 13.0 12.5 19.5 26.5 22.5 31.0
XGL1313-822MED 8.2 4.4 5.2 12.0 11.3 18.2 25.0 20.9 28.7
XGL1313-103MED 10 5.5 6.3 10.0 10.5 17.0 23.0 19.0 26.0
XGL1313-153MED 15 8.0 9.2 8.1 8.1 13.0 17.5 15.5 21.3
XGL1313-223MED 22 11.6 13.3 7.1 7.3 11.5 15.4 12.6 17.2
XGL1313-333MED 33 18.3 20.7 5.8 5.6 8.5 11.6 9.3 12.6
XGL1313-473MED 47 26.5 30.0 5.0 4.7 7.3 9.7 7.1 9.1
注释
  1. When ordering, please specify termination code: e.g. XGL1313-473MED
  2. Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4395A or equivalent.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
    Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
    Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

端子:

  • E = Halogen free component. RoHS compliant tin-silver over copper terminations.
  • T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C with (40°C rise) Irms current
储存温度范围:
Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C
最高元件温度:
+165°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

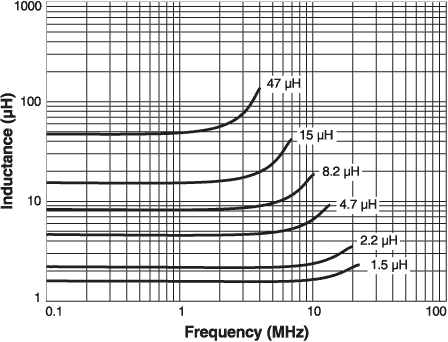

L vs Frequency

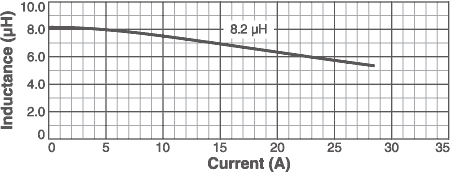

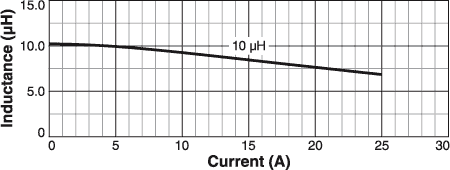

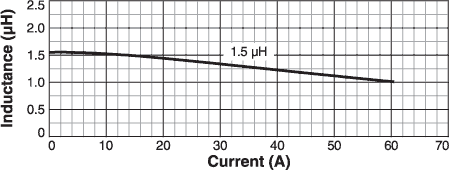

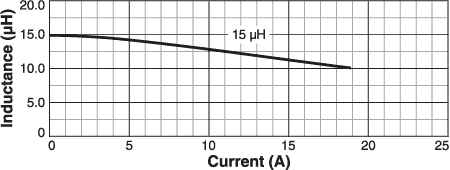

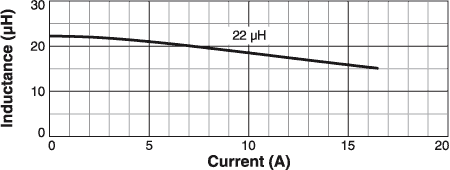

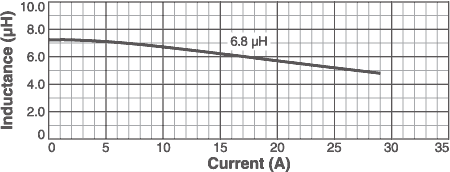

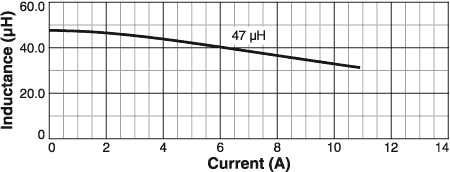

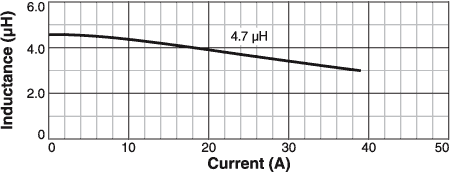

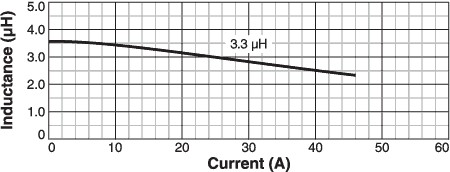

L vs Current

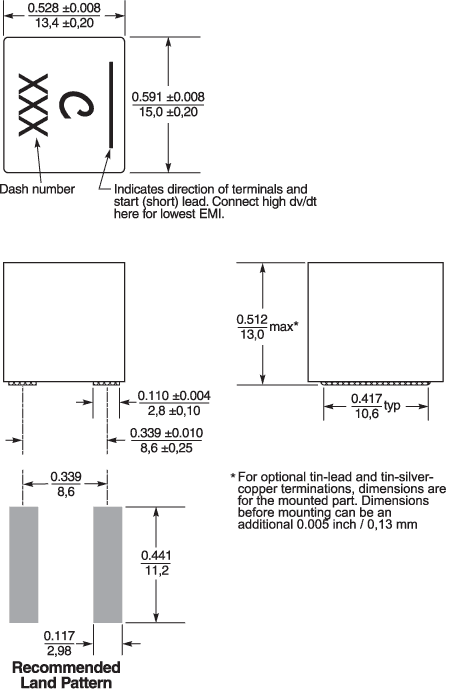

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_ac.gif
200 330 100 13 38,4 32,4 32 24 4 2 13,2 0,5

一般规格

核心材料:
Composite
重量:
13 – 16 g
包装:
200/13″ reel Plastic tape: 32 mm wide, 0.50 mm thick, 24 mm pocket spacing, 13.2 mm pocket depth.

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
