ZE2401 Series

Low Profile Common Mode Chokes

Common mode choke suitable for use in FPD-Link III & FPDLink IV up to 13.5 Gbps link rates
Attenuate common mode signal with minimal effect on differential signal in forward channel and backchannel for maintaining stable signal integrity

Refer to Designing Common Mode Filters for design guidance.

立即购买:

索取样品:

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (GHz) 2	共模典型衰减 (dB)			最小电感 (nH) 3	Irms (mA) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (GHz) 2	10 MHz	100 MHz	500 MHz	最小电感 (nH) 3	Irms (mA) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
ZE2401-AE_	2	0.16 @ 3.0 GHz	5.0	1.5	5.3	7.1	30	100	0.35	250

注释

When ordering, please specify packaging code: e.g. ZE2401-AEC
Frequency at which the differential mode attenuation equals –3 dB.
Inductance measured at 100 MHz, with windings connected in parallel, using an Agilent/HP 4286A impedance analyzer and a Coilcraft SMD-A fixture.
Irms: Current per winding that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
250 Vrms, 1 minute interwinding isolation (hipot).

端子:

Matte tin over nickel over silver-palladium-glass frit.

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (7500 parts per full reel).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C with Irms current.

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

140°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

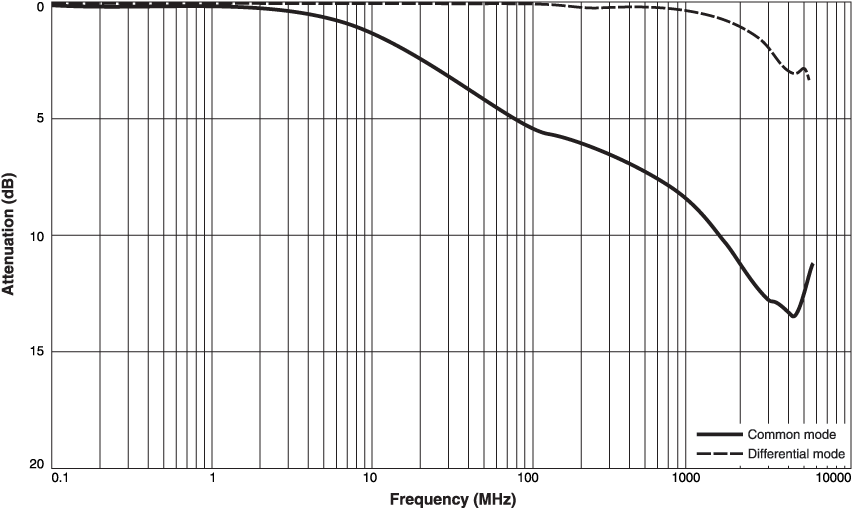

Typical Attenuation (Ref: 50 Ohms)

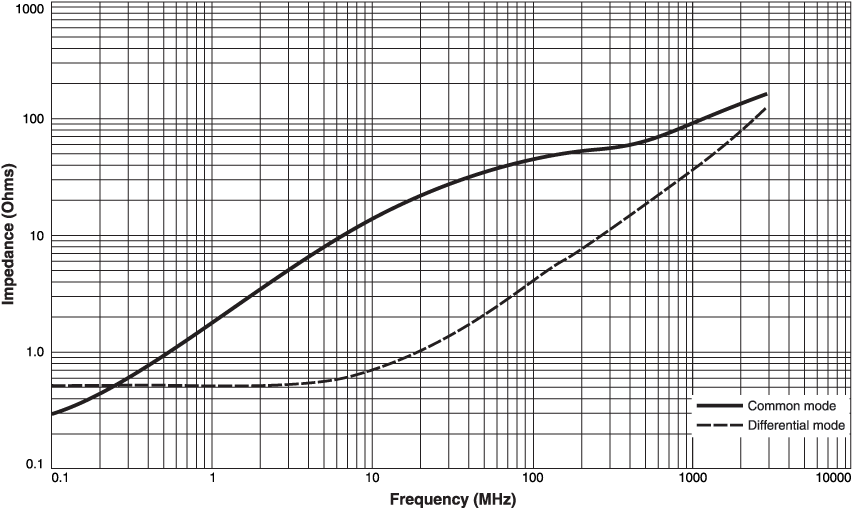

Typical Impedance vs Frequency

原理图

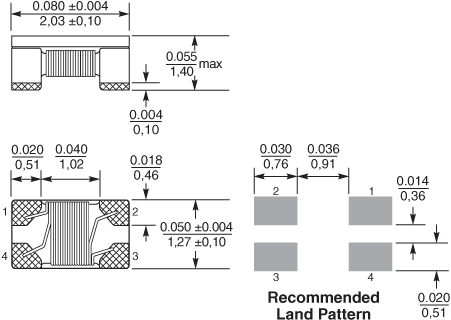

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,295	0,23

*Special order

一般规格

核心材料:

Ferrite

重量:

14.7 – 15.5 mg

包装:

2000/7″ reel; 7500/13″ reel; Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.295 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
