0805USBN Series

Low-profile Common Mode Chokes

符合RoHS 无卤素
Our 0805USBN Series low-profile common mode chokes are great for noise suppression in ultra-high-speed signal lines (USB 3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.) and in high-speed differential signal lines (USB 2.0, IEEE1394, and LVDS). They are also suitable for USB-type C specification 1.0 and provide up to 6.0 GHz differential mode 3 dB cutoff frequency and up to 30 dB common mode noise attenuation in the GHz range.
  • For noise suppression in super-high-speed signal lines (USB 3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.) and in high-speed differential signal lines (USB 2.0, IEEE1394, and LVDS). Also suitable for USB-type C specification 1.0.
  • Up to 6.5 GHz differential mode 3 dB cutoff frequency
  • Up to 35 dB common mode noise attenuation in GHz range
  • Compact, low-profile (<1.0 mm) package
  • Designed for high temperature applications up to +125°C
Refer to Designing Common Mode Filters for design guidance.
立即购买:
计数 单价
1 $0.77
200 $0.59
500 $0.41
1000 $0.32
2000 $0.27
4000 $0.25

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C470 39 (10 of each) $110.00

规格

Electrical specifications at 25°C.

零件号 1 线组数 共模
峰值阻抗 (kΩ)
截止
频率 (GHz) 2
共模
典型衰减 (dB)
最小
电感 (nH) 3
Irms (mA) 4 DCR max (Ω) 5 隔离
电压 (Vrms) 6
10 MHz 100 MHz 500 MHz
0805USBN-121MR_ 2 0.14 @ 2.6 GHz 6.4 0.04 0.50 5.00 14 500 0.110 250
0805USBN-271MR_ 2 0.30 @ 2.5 GHz 5.1 0.09 1.40 10.00 30 500 0.140 250
0805USBN-481MR_ 2 0.60 @ 3.0 GHz 3.4 0.13 3.50 14.70 53 500 0.220 250
0805USBN-701MR_ 2 0.79 @ 2.0 GHz 3.4 0.18 5.30 17.40 77 500 0.235 250
0805USBN-941MR_ 2 1.28 @ 1.4 GHz 3.5 0.30 7.60 21.10 105 500 0.270 250
0805USBN-132MR_ 2 1.61 @ 1.2 GHz 2.3 0.50 10.00 24.40 140 500 0.320 250
0805USBN-162MR_ 2 2.00 @ 1.0 GHz 1.5 0.78 12.10 27.30 182 450 0.370 250
0805USBN-222MR_ 2 2.47 @ 0.96 GHz 1.7 1.14 14.00 30.00 252 350 0.630 250
注释
  1. When ordering, please specify packaging code: e.g. 0805USBN-222MRC
  2. Frequency at which the differential mode attenuation equals 3 dB
  3. Inductance measured at 100 MHz, with windings connected in parallel, using an Agilent/HP 4286A impedance analyzer and a Coilcraft SMD-A fixture.
  4. Irms: Current per winding that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
  5. DCR is specified per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  6. 250 Vrms, 1 minute interwinding isolation (hipot).

端子:

  • Matte tin over nickel over silver-palladium-glass frit.

包装:

  • C= 7″ machine-ready reel
    EIA-481 embossed plastic tape (2000 parts per full reel).
  • B= Less than full reel
    In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
  • D= 13″ machine-ready reel
    EIA-481 embossed plastic tape (7500 parts per full reel).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C with Irms current
储存温度范围:
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
140°C
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

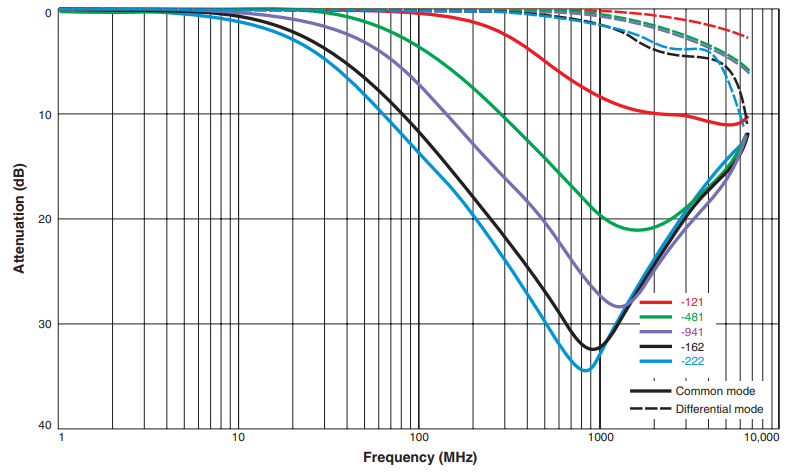

Attenuation (Ref: 50 Ohms)

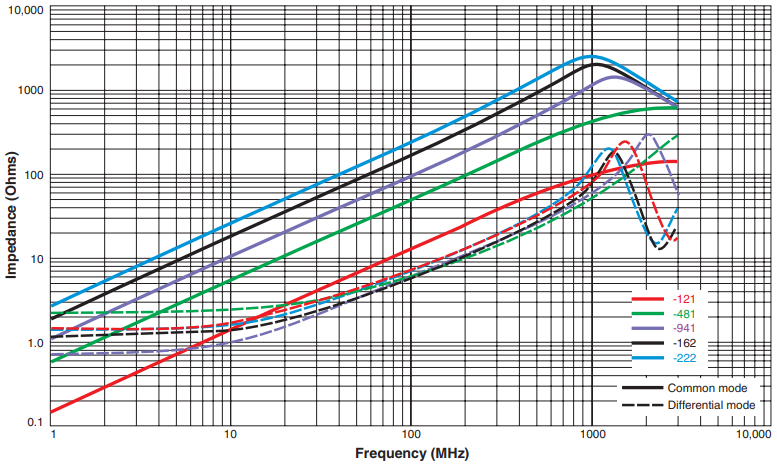

Impedance vs Frequency

原理图

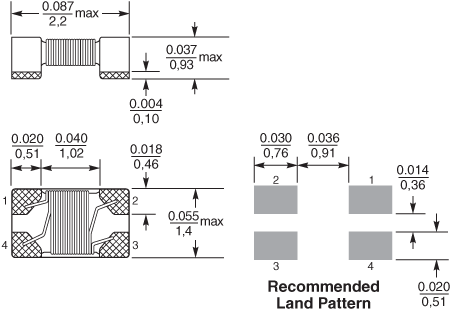

物理特性


卷装规格





Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T
2000 7500* 178/330 60/100 13 14,4 8,4 8 4 4 2 1,07 0,23
*Special order

一般规格

核心材料:
Ferrite
重量:
9.0 – 13.0 mg

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
