016008F (0402)

Ferrite Chip Inductors

The 016008F series is the world’s smallest wirewound ferrite chip inductor, designed for high-frequency applications where board space is constrained. With dimensions of just 0.5 x 0.25 x 0.38 mm, it achieves the breakthrough miniaturization without compromising high-impedance performance. The high impedance provides excellent RF isolation in cellular and wireless applications, while a DCR as low as 0.18 Ohms makes it ideal for RF choke and filtering applications. This enables compact devices such as smartphones, IoT modules, and wearables to achieve superior EMI suppression and signal integrity.

World’s smallest high-frequency-wirewound chip inductor
High inductance values in 016008 package (metric 0402)
Exceptionally low DCR – lower than all thin film type
Inductance values up to 120 nH

今すぐ購入:

部品番号

部品を検索

サンプルを依頼:

部品番号

部品を検索

デザイナーズキット:

キット	値	価格
C522	7 (20 of each)	$45.00

仕様

Electrical specifications at 25°C.

部品番号	インダクタンス (nH) 1 (公差: ±10%)	インピーダンスタイプ (Ω) 2			SRF typ (GHz) 3	DCR max (mΩ) 4	Irms (mA)
部品番号	インダクタンス (nH) 1 (公差: ±10%)	100 MHz	900 MHz	1.7 GHz	SRF typ (GHz) 3	DCR max (mΩ) 4	at 25°C 5	at 85°C 6	at 125°C 7
016008F-18NXKRW	18	10.0	80.0	140	4.5	180	550	500	140
016008F-30NXKRW	30	15.0	120	220	4.0	210	500	455	140
016008F-39NXKRW	39	25.0	170	300	3.5	320	410	375	100
016008F-56NXKRW	56	30.0	260	500	3.0	470	340	300	90
016008F-75NXKRW	75	45.0	360	700	2.7	640	290	260	70
016008F-101XKRW	100	55.0	450	900	2.5	920	240	215	50
016008F-121XKRW	120	70.0	570	1200	2.3	1100	225	200	50

メモ

Inductance measured at 7.9 MHz using a Coilcraft CCF1426 fixture in an Agilent/HP 4287 impedance analyzer with Coilcraft-provided correlation pieces.
Impedance measured using an Agilent/HP 4991 with an Coilcraft CCF1481 test fixture.
SRF measured using Agilent/HP 8722ES network analyzer and Coilcraft CCF1406 test fixture.
DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 40°C temperature rise at 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Maximum current that can be applied at 85°C.
Maximum current that can be applied at 125°C.

終端処理:

RoHS compliant, matte tin over copper over nickel over molybdenum - manganese

パッケージ:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

環境

環境:

RoHS準拠 , ハロゲンフリー

周囲温度範囲:

–40°C to +125°C with Irms current

保管温度範囲:

Component: –55°C to +140°C.
Tape and reel packaging: –55°C to +80°C

最大部品温度:

+140°C (ambient + temp rise)

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

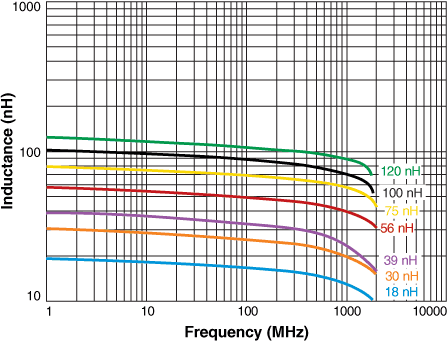

L vs Frequency

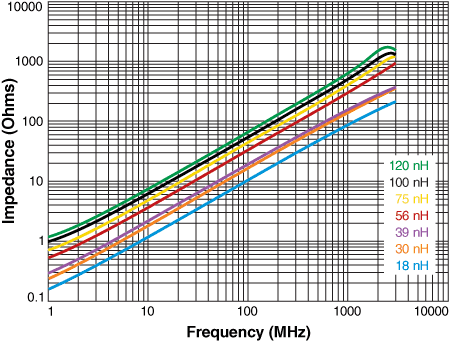

Impedance vs Frequency

物理的特徴

A max	B max	C max	D ref	E ref	F ref	G ref	H ref
0.02	0.01	0.015	0.004	0.008	0.006	0.009	0.012	inches
0,50	0,25	0,38	0,10	0,20	0,15	0,23	0,30	mm

テープ＆リール仕様


Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	178	100	13	14,4	8,4	8	2	4	2	0,42

一般仕様

コア材料:

Ferrite

重量:

0.10 – 0.16 mg

パッケージ:

2000 per 7″ reel. Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
