ZE2706 Series

Low Profile Common Mode Choke

Miniature and low profile chip-style common mode choke; only 5.3 mm tall
High current and exceptional common mode noise attenuation
AEC-Q200 qualified

Refer to Designing Common Mode Filters for design guidance.

今すぐ購入:

個数	単価
1	$3.42
100	$2.79
350	$2.09
700	$1.26
1000	$0.98

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Termination

E = Tin over nickel over silver glass frit

Packaging

C = 7" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

仕様

Electrical specifications at 25°C.

部品番号 1	コモンモードピークインピーダンス (Ω)	最小インダクタンス (µH) 2	漏れインダクタンス最大 (µH) 3	Irms (mA) 4	DCR max (Ω) 5	絶縁電圧 (Vrms) 6
部品番号 1	コモンモードピークインピーダンス (Ω)	最小インダクタンス (µH) 2	漏れインダクタンス最大 (µH) 3	Irms (mA) 4	DCR max (Ω) 5	絶縁電圧 (Vrms) 6
ZE2706-AEC	950 @ 100 MHz	4.8	0.05	3.9	0.022	415

メモ

When ordering, please specify packaging code: e.g. ZE2706-AEC
Inductance is measured at 100 kHz, 0.1 Vrms, 0 ADC on an Agilent 4263B (or equivalent).
Leakage Inductance is measured at 100 kHz, 0.1 Vrms on an Agilent 4263B (or equivalent) with Sec shorted.
Current through the windings connected in series that causes a 40°C rise from 25°C. This information is for reference only and does not represent absolute maximum ratings.
DCR is measured on a Keithley 580 Micro-ohmmeter (or equivalent). For other operating temperatures, use this DCR at Temperature calculator.
415 Vrms, one minute isolation (hipot) measured between primary and secondary.

終端処理:

RoHS compliant tin over nickel over silver glass frit.

パッケージ:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1500 parts per full reel). Factory order only, not stocked.

環境

環境:

RoHS準拠 , ハロゲンフリー

周囲温度範囲:

–40°C to +125°C with (15°C rise) Irms current.

保管温度範囲:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最大部品温度:

140°C (ambient + temp rise).

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

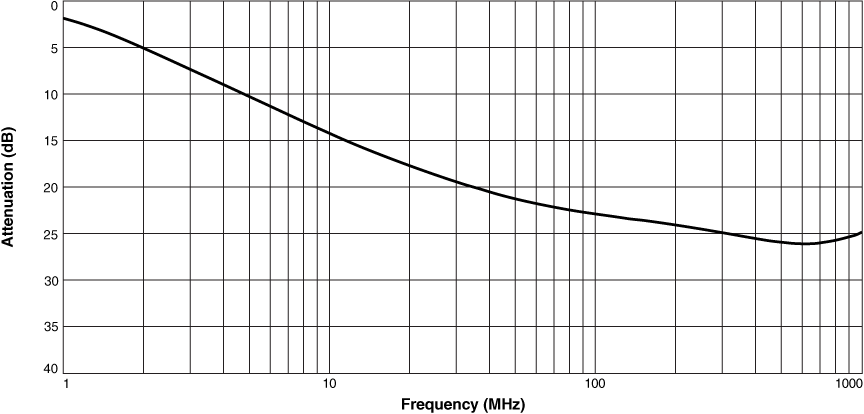

Attenuation vs Frequency (Common Mode)

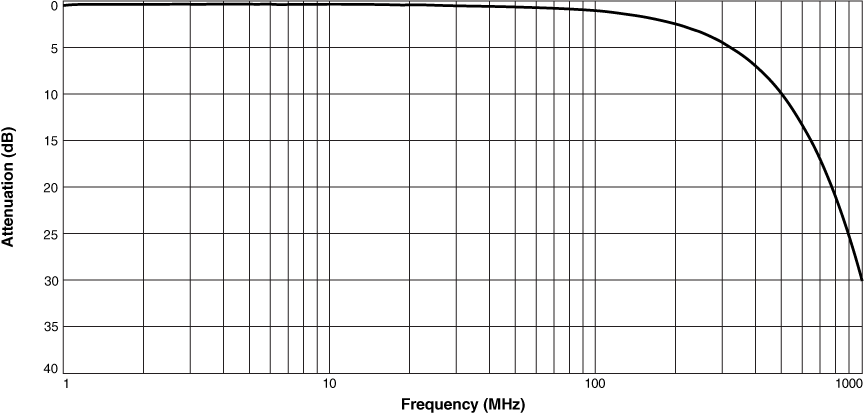

Attenuation vs Frequency (Differential Mode)

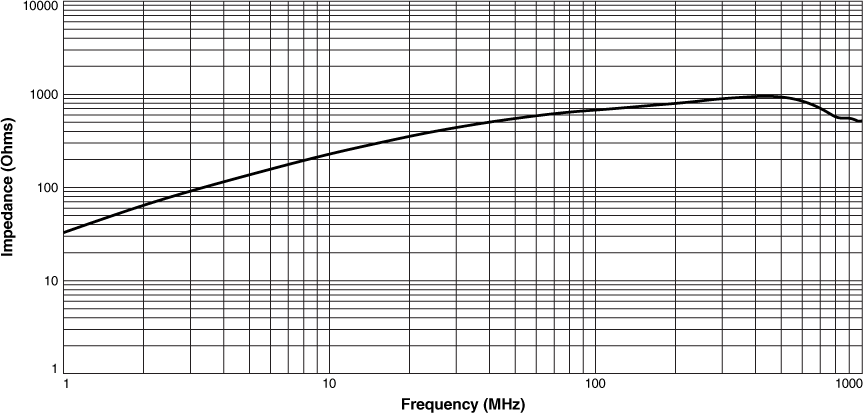

Impedance vs Frequency (Common Mode)

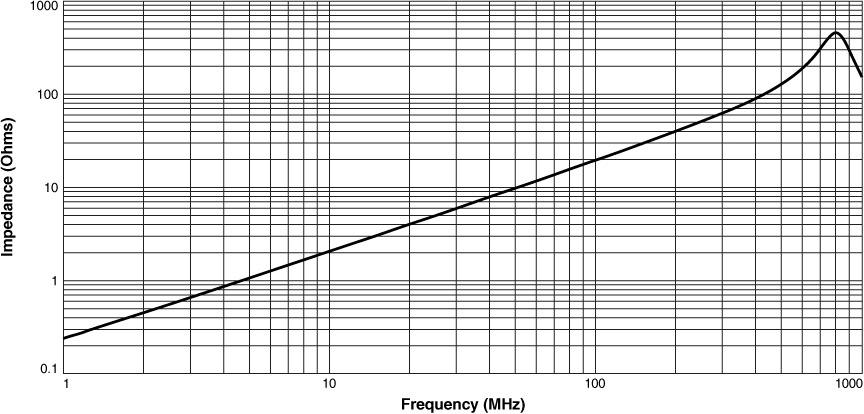

Impedance vs Frequency (Differential Mode)

回路図

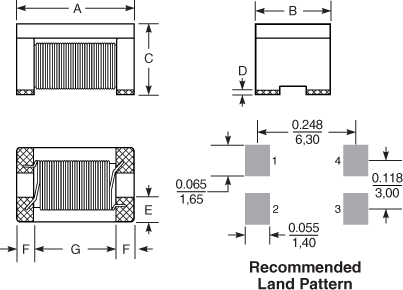

物理的特徴

A max	B max	C max	D	E	F	G
0.284	0.191	0.209	0.012	0.059	0.040	0.197	inches
7,2	4,85	5,3	0,30	1,5	1,0	5,0	mm

テープ＆リール仕様

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	1500*	178/330	60/100	13	22,4	16,4	16	8	4	2	5,5	0,40

*Special order

一般仕様

コア材料:

Ferrite

重量:

0.53 – 0.54 mg

パッケージ:

350/7″ reel; 1500/13″ reel Plastic tape: 16 mm wide, 0.4 mm thick, 8 mm pocket spacing, 5.5 mm pocket depth

Winding to Winding Isolation:

415 Vrms, one minute

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
