0402FL

Low Profile Chip Inductors

RoHS-konform Halogenfrei
Our 0402FL Series of wirewound ferrite chip inductors feature a low profile of 0.55 mm, which is 10% lower than competitive inductors. They were developed for cellular applications for use either as filter elements, as one-pole filters, or as RF chokes in the cellular bands, and are great for use in mobile and infrastructure equipment.
  • Maximum height reduced to 0.55 mm – 10% lower profile than competitive products
  • Developed for use in cellular applications:
    As a filter element in bandstop and low pass filters
    As a one pole filter or RF choke in cellular bands
  • Ideal for use in both mobile and infrastructure equipment
  • Ferrite construction for high current handling
  • Equally effective on-board or modular
  • Can also be used for ground-to-ground isolation

Jetzt kaufen:
Anzahl Einzelpreis
1 $1,12
200 $0,86
500 $0,65
1000 $0,46
2000 $0,35
4000 $0,28

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

. Auf Lager, noch heute versandbereit.
Muster anfordern:

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1 Induktivität (nH) 2
(Toleranz: ±5%)
Impedanz typ (Ω) SRF typ (MHz) 3 DCR max (Ω) 4 Irms (mA)
100 MHz 900 MHz at 25°C 5 at 85°C 6 at 125°C 7
0402FL-200XJR_ 20 11,7 95,0 2950 0,065 1300 900 680
0402FL-360XJR_ 36 22,4 185 2250 0,085 1050 900 550
0402FL-560XJR_ 56 32,5 285 1900 0,11 900 820 470
0402FL-770XJR_ 77 43,4 380 1800 0,13 850 770 440
0402FL-101XJR_ 100 58,0 525 1575 0,15 820 750 430
0402FL-121XJR_ 120 70,3 650 1950 0,17 810 740 420
0402FL-151XJR_ 150 84,8 770 1300 0,18 730 670 380
0402FL-161XJR_ 160 93,4 900 1850 0,24 630 580 330
0402FL-181XJR_ 180 102 990 1800 0,20 690 630 360
0402FL-221XJR_ 220 126 1280 1120 0,29 580 530 300
0402FL-271XJR_ 270 155 1825 975 0,30 560 510 290
0402FL-331XJR_ 330 188 2330 875 0,48 400 370 210
0402FL-391XJR_ 390 225 3150 820 0,56 360 330 190
0402FL-421XJR_ 420 243 3325 800 0,57 360 330 190
0402FL-471XJR_ 470 286 4460 750 0,80 330 300 170
0402FL-561XJR_ 560 327 5025 700 0,97 290 260 150
Hinweise
  1. When ordering, please specify packaging code: e.g. 0402FL-561XJRW
  2. Inductance measured at 7.9 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer.
  3. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
  4. DCR measured on Cambridge Technology micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  5. Current that causes a 40°C temperature rise at 25°C. This information is for reference only and does not represent absolute maximum ratings. Because of their open construction, these parts will not saturate.
  6. Maximum current that can be applied at 85°C.
  7. Maximum current that can be applied at 125°C.

Anschlüsse:

  • R = RoHS compliant matte tin over nickel over silver-platinum-glass frit.

Verpackung:

  • W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • Y = 7″ machine-ready reel. EIA-481 punched paper tape (10000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform , Halogenfrei
Umgebungstemperaturbereich:
–40°C to +125°C with Irms current
Lagertemperaturbereich:
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Maximale Bauteiltemperatur:
+140°
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

Kennlinien

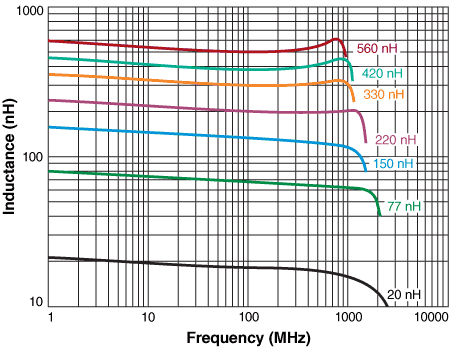

L vs Frequency

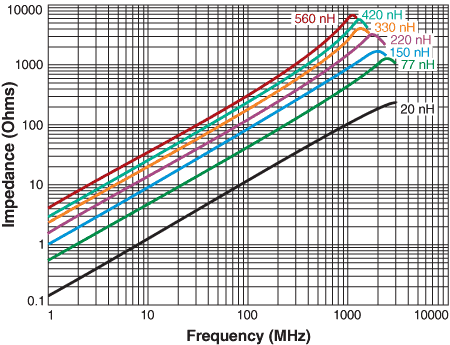

Z vs Frequency

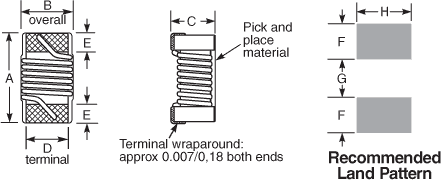

Physikalische Eigenschaften


A max B max C max D E F G H
0.044 0.028 0.022 0.022 0.007 0.014 0.025 0.026 inches
1,11 0,72 0,55 0,55 0,18 0,36 0,635 0,66 mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

Gurt/Rolle-Spezifikationen


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) A B C D E W P Po P1 H T part_or_i.gif
2000 178 100 13 14,4 8,4 8 4 4 2 N/A 0,68
10000 178 100 13 14,4 8,4 8 4 4 2 N/A 0,68

Allgemeine Spezifikation

Kernmaterial:
Ferrite
Gewicht:
0.9 – 1.1 mg
Verpackung:
2000 per 7″ reel or 10,000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 4 mm pocket spacing
Temperature coefficient of inductance:
+25 to +150 ppm/°C

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
