0603CT (1608)

Low Profile Chip Inductors

RoHS-konform Halogenfrei
Our 0603CT Series low profile ceramic chip inductors are 40% lower in height than other 0603 models. Offered in a wide range of values, this series has Q factors up to 95 at 1.7 GHz and high self-resonant frequencies – up to 16 GHz.
  • Low profile - only 60% the height of other 0603 chip inductors
  • Inductance values from 1.0 to 56 nH
  • Exceptionally high Q – up to 95 at 1.7 GHz!
  • Very high self-resonant frequencies – up to 16 GHz
Jetzt kaufen:

The part number you have selected is not available through our online store.

Please click the "Request Quote" button for pricing and more information.

. Auf Lager, noch heute versandbereit.
Muster anfordern:
Designer-Kits:
Kit Werte Preis
C423 36 (10 of each) $95,00
C423-2 36 (10 of each) $115,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1 Induktivität (nH) 2 Toleranz (%) 3 900 MHz 1.7 GHz SRF typ (GHz) 5 DCR max (Ω) 6 Irms (mA) 7
L typ Q typ 4 L typ Q typ 4
0603CT-1N0XJE_ 1,0 5 0,98 39 0,99 58 16,0 0,045 1600
0603CT-1N2XJE_ 1,2 5 1,18 35 1,19 50 16,0 0,11 1100
0603CT-2N0XJE_ 2,0 5 1,98 46 1,98 70 12,0 0,034 1900
0603CT-2N2XJE_ 2,2 5 2,1 50 2,13 74 10,7 0,046 1600
0603CT-2N3XJE_ 2,3 5 2,27 55 2,28 81 11,0 0,046 1600
0603CT-2N5XJE_ 2,5 5 2,48 52 2,5 77 11,0 0,060 1300
0603CT-3N0X_E_ 3,0 2,5 2,96 57 2,97 82 10,7 0,039 1600
0603CT-3N3X_E_ 3,3 2,5 3,27 60 3,33 83 7,0 0,039 1600
0603CT-3N6X_E_ 3,6 2,5 3,58 69 3,63 95 7,0 0,044 1600
0603CT-3N9X_E_ 3,9 2,5 3,87 68 3,95 90 6,3 0,050 1400
0603CT-4N3X_E_ 4,3 2,5 4,26 58 4,34 84 6,3 0,076 1300
0603CT-4N7X_E_ 4,7 2,5 4,66 50 4,75 70 5,6 0,12 960
0603CT-5N1X_E_ 5,1 2,5 5,12 68 5,18 93 5,5 0,050 1400
0603CT-5N6X_E_ 5,6 2,5 5,6 67 5,73 90 5,1 0,058 1300
0603CT-6N8X_E_ 6,8 2,5 6,78 60 7,0 81 4,5 0,080 1200
0603CT-7N2X_E_ 7,2 2,5 7,19 65 7,44 88 4,5 0,047 1500
0603CT-8N2X_E_ 8,2 2,5 8,18 60 8,46 78 4,3 0,075 1300
0603CT-9N5X_E_ 9,5 2,5 9,52 63 9,92 80 4,0 0,092 1100
0603CT-10NX_E_ 10 2,5 10 67 10,4 85 4,0 0,075 1300
0603CT-11NX_E_ 11 2,5 11 66 11,5 86 4,0 0,11 1000
0603CT-12NX_E_ 12 2,5 12 68 12,7 85 3,5 0,13 920
0603CT-15NX_E_ 15 2,5 15,2 65 16,1 80 3,3 0,15 800
0603CT-16NX_E_ 16 2,5 16,3 63 17,5 76 3,1 0,18 760
0603CT-18NX_E_ 18 2,5 18,1 66 19,2 80 3,0 0,20 720
0603CT-20NX_E_ 20 2,5 20,2 67 21,6 80 2,9 0,18 760
0603CT-22NX_E_ 22 2,5 22,4 60 24,3 70 2,8 0,22 700
0603CT-24NX_E_ 24 2,5 24,4 61 26,5 72 2,7 0,24 680
0603CT-27NX_E_ 27 2,5 27,4 62 29,8 75 2,6 0,27 670
0603CT-30NX_E_ 30 2,5 30,5 62 33,9 73 2,5 0,33 600
0603CT-33NX_E_ 33 2,5 34 55 39,1 61 2,2 0,33 600
0603CT-36NX_E_ 36 2,5 37,2 61 42,3 63 2,3 0,34 600
0603CT-39NX_E_ 39 2,5 40,3 60 45,3 65 2,3 0,40 570
0603CT-43NX_E_ 43 2,5 44,5 57 51,3 60 2,1 0,44 530
0603CT-47NX_E_ 47 2,5 48,2 55 57,8 57 1,9 0,54 470
0603CT-51NX_E_ 51 2,5 53 55 63,2 55 1,9 0,57 440
0603CT-56NX_E_ 56 2,5 59,4 54 75,4 48 1,8 0,70 420
Hinweise
  1. When ordering, specify tolerance, termination and packaging codes: 0603CT-56NXGEW
  2. Inductance measured at 250 MHz, 0.1 Vrms, 0 Adc using Coilcraft SMDA fixture in Agilent/HP 4287A impedance analyzer
  3. Tolerances in bold are stocked for immediate shipment.
  4. Q measured using Agilent/HP4291A with Agilent/HP 16193 test fixture.
  5. SRF measured using Agilent/HP 8722ES network analyzer and Coilcraft SMD -D test fixture
  6. DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft CCF858 test fixture.
  7. Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

Toleranz:

  • G=2%, J=5%

Anschlüsse:

  • E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit terminations.
  • L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
  • R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
  • T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) (Special order, added cost)

Verpackung:

  • W = 7" machine-ready reel
    EIA RS-481 punched paper tape. 2000 per full reel. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • U = Less than full reel
    In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform , Halogenfrei
Umgebungstemperaturbereich:
–40°C to +125°C with Irms current
Lagertemperaturbereich:
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Maximale Bauteiltemperatur:
+140°C (ambient + temp rise).
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):
One per billion hours / one billion hours, calculated per Telcordia SR-332

Kennlinien

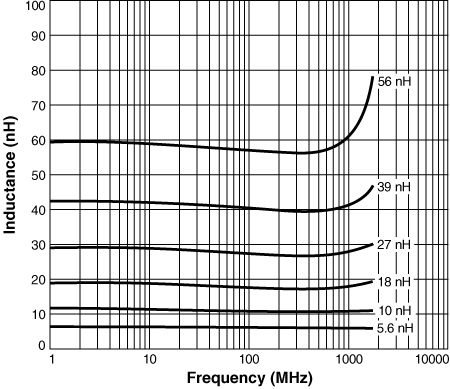

L vs Frequency

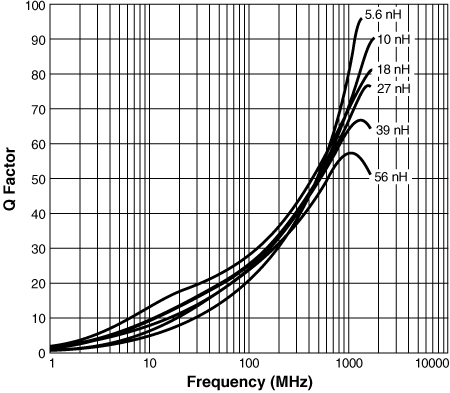

Q vs Frequency

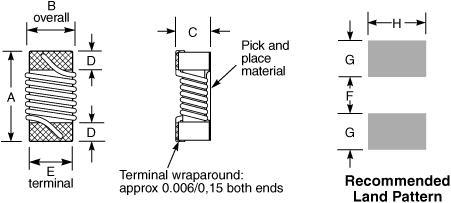

Physikalische Eigenschaften



A max B max C max D ref E F G H
0.064 0.033 0.024 0.013 0.030 0.025 0.025 0.040 inches
1,63 0,84 0,61 0,33 0,76 0,64 0,64 1,02 mm

Dimensions are before optional solder application. For maximum height and length
dimensions including solder, add 0.006 in / 0,152 mm.
For maximum width dimension including solder, add 0.0025 in / 0,0635 mm.

Gurt/Rolle-Spezifikationen


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) A B C D E W P Po P1 H T part_or_i-(9).gif
2000 178 100 13 14,4 8,4 8 4 4 2 NA 0,68

Allgemeine Spezifikation

Kernmaterial:
Ceramic
Gewicht:
1.4 – 2.3 mg
Verpackung:
2000/7″reel; Paper tape: 8 mm wide, 0.68 mm thick, 4 mm pocket spacing

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
