NA5931-AL – NA5936-AL

Air Core Inductors for Linear Technology

RoHS-konform
  • Developed for Linear Technology LT8697 monolithic step-down switching regulator designed to power 5V USB applications
  • Very tight DCR tolerance – 15.7 mΩ; tight inductance tolerace – 2%
  • Rigid package for mechanical stability and reliable pick and place operations
  • Solder coated leads ensure reliable soldering
  • RoHS-compliant. Terminations: tin-silver over copper

Jetzt kaufen:
Anzahl Einzelpreis
1 $2,11
400 $1,68
800 $1,43
1600 $1,13
2400 $0,78
4800 $0,58

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

. Auf Lager, noch heute versandbereit.
Muster anfordern:

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1 Windungen Induktivität (nH) 2
(Toleranz: ±2%)
Q @ 50,0 MHz 3 SRF min (GHz) 4 DCR (mΩ) 5 Irms (A) 6
min typ typ max
NA5931-AL_ 15 246 95 114 0,69 15,7 16,5 3,0
NA5932-AL_ 16 307 95 114 0,66 21,8 22,9 3,0
NA5933-AL_ 17 380 95 114 0,59 32,4 34,0 2,5
NA5934-AL_ 18 422 95 114 0,54 34,3 36,0 2,5
NA5935-AL_ 19 491 95 114 0,54 44,1 46,3 2,0
NA5936-AL_ 20 538 87 104 0,49 47,2 49,6 2,0
Hinweise
  1. When ordering, please specify packaging code: e.g. NA5936-ALD
  2. Inductance tested at 50 MHz on an Agilent/HP 4191A Impedance Analyzer or equivalent with a Coilcraft SMD-A fixture using Coilcraft supplied correlation.
  3. Q tested at 50 MHz on an Agilent/HP 4291A Impedance Analyzer or equivalent with a Coilcraft SMD-D fixture using Coilcraft supplied correlation.
  4. SRF tested with an Agilent/HP 8753D network analyzer and a Coilcraft CCF1248 test fixture. Details
  5. DCR tested at 25°C on a Keithley 580 Micro-ohmmeter. For other operating temperatures,use this DCR at Temperature calculator.
  6. Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

Anschlüsse:

  • RoHS compliant tin-silver (96.5/3.5) over copper.

Verpackung:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (800 parts per full reel).
  • B = Less than full reel. In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform
Umgebungstemperaturbereich:
–40°C to +125°C with Irms current, +125°C to +140°C with derated current
Lagertemperaturbereich:
Component: –40°C to +140°C
Tape and reel packaging: –40°C to +80°C
Maximale Bauteiltemperatur:
+140°C (Ambient + temperature rise)
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

Kennlinien

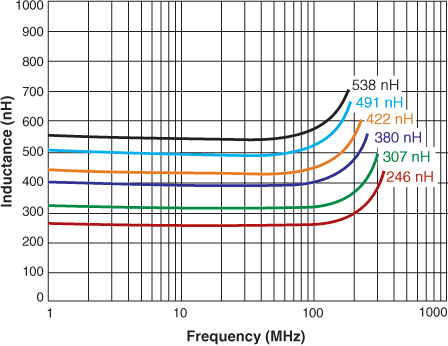

Inductance vs Frequency

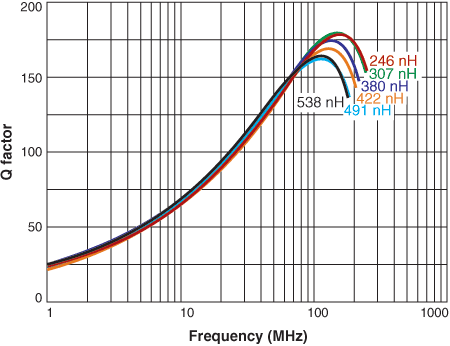

Q versus Frequency

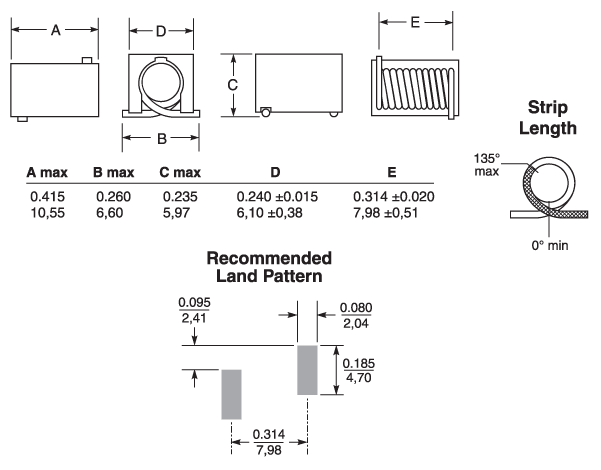

Physikalische Eigenschaften


Gurt/Rolle-Spezifikationen



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_j.gif
800 330 100 13 30,4 24,4 24 12 4 2 6,1 0,3

Allgemeine Spezifikation

Gewicht:
0.42– 0.59 g
Verpackung:
800/13″ reel Plastic tape: 24 mm wide, 0.3 mm thick, 12 mm pocket spacing, 6.1 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested with pure water or alcohol only. More info.
