PFL4517 Series

Shielded Power Inductors

RoHS-konform Halogenfrei
PFL4517 ultra-small molded power inductors offer the perfect combination of size, performance and price.  PFL inductors feature soft saturation for high peak currents and magnetic shielding for high-density packaging.
  • Tiny, cost-effective molded power inductors
  • Soft saturation for peak current handling
  • Magnetically shielded
  • No thermal aging
Jetzt kaufen:
Anzahl Einzelpreis
1 $0,75
250 $0,60
500 $0,50
1000 $0,40
2500 $0,35
5000 $0,31
10000 $0,28

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

. Auf Lager, noch heute versandbereit.
Muster anfordern:
Designer-Kits:
Kit Werte Preis
C451 15 (3 of each) $55,00

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1 Induktivität (µH) 2
(Toleranz: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
PFL4517-681ME_ 0,68 40,0 50,0 375 4,1 6,0 6,5 1,9 2,7
PFL4517-102ME_ 1,0 50,0 60,0 300 3,5 4,8 5,3 1,7 2,3
PFL4517-222ME_ 2,2 78,0 95,0 235 2,7 4,0 4,2 1,4 1,8
PFL4517-332ME_ 3,3 150 180 205 2,2 2,9 3,2 0,85 1,2
PFL4517-472ME_ 4,7 210 250 185 2,0 2,7 3,0 0,80 1,1
PFL4517-562ME_ 5,6 240 290 170 1,7 2,4 2,6 0,70 1,0
PFL4517-822ME_ 8,2 390 460 150 1,4 2,1 2,3 0,50 0,69
PFL4517-103ME_ 10 620 700 97,0 1,0 1,4 1,5 0,63 0,83
Hinweise
  1. When ordering, please specify termination and packaging codes: e.g. PFL4517-103MEC
  2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter.
  3. DCR measured  at 25°C using a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

  • E = Halogen free component. RoHS-compliant matte tin over nickel over silver-platinum-glass frit terminations.
  • Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
  • P = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (1000 parts per full reel).
  • B = Less than full reel
    On reel but not machine-ready. To have a leader and trailer added ($25 charge), use code letter C instead.
  • D13" reel, machine-ready
    EIA-481 embossed plastic tape. Factory order only, not stocked (5000 parts per full reel).
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform , Halogenfrei
Umgebungstemperaturbereich:
–40°C to +85°C with (40°C rise) Irms current
Lagertemperaturbereich:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Maximale Bauteiltemperatur:
+125°C (ambient + temp rise)
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

Kennlinien

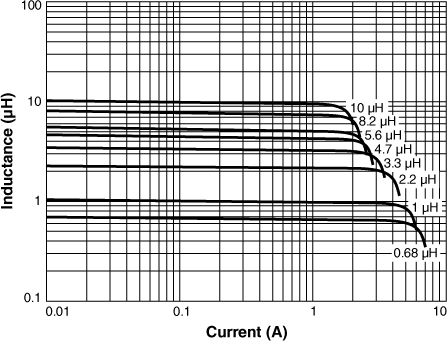

Inductance vs Current

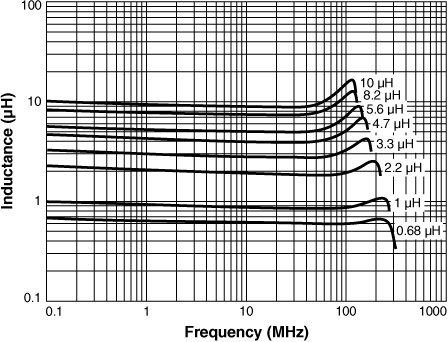

Inductance vs Frequency

Physikalische Eigenschaften


Gurt/Rolle-Spezifikationen




Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_s.gif
1000 5000* 178/330 60/100 13 18,4 12,4 12 8 4 2 1,65 0,3
* Special order

Allgemeine Spezifikation

Kernmaterial:
Composite
Gewicht:
89.8 mg
Verpackung:
1000/7″ reel; 5000/13″ reel. Plastic tape: 12 mm wide, 0.21 mm thick, 8 mm pocket spacing, 1.65 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
