SER80xx Series

High Current Shielded Power Inductors

SER80xx Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.

Two versions: Low DCR version and high Isat version
Rugged flat wire construction
Ferrite core for flat L vs. I characteristics
Magnetically shielded to minimize EMI

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$2,27
100	$2,17
250	$1,67
500	$1,22
1000	$0,99
2000	$0,86
5000	$0,79

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Tolerance

M = 20%

Termination

E = Tin-silver over nickel

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

High Isat version for high peak current applications

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
SER8050-451MEC	0,45	3,19	3,50	216	29,52	30,32	31,12	7,95	11,72
SER8050-811MEC	0,80	5,35	5,88	125	22,48	24,40	25,20	6,48	9,43
SER8052-122MEC	1,2	6,44	7,20	110	17,42	18,54	19,18	6,03	8,11
SER8052-182MEC	1,8	8,64	9,50	91,0	13,60	14,56	14,88	5,33	7,94
SER8052-242MEC	2,4	8,64	9,50	76,0	10,36	11,38	11,80	5,40	7,58
SER8052-332MEC	3,2	13,03	14,33	72,0	9,02	9,84	10,24	4,43	6,25
SER8052-402MEC	4,0	13,03	14,33	66,0	7,04	7,84	8,24	4,53	6,30

Low DCR version for high average current applications

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
SER8050-501MEC	0,50	2,22	2,50	234	19,40	22,02	22,68	9,78	13,52
SER8050-112MEC	1,1	3,19	3,50	109	12,22	13,86	14,50	8,05	11,97
SER8050-202MEC	2,0	5,35	5,88	74,0	7,94	9,22	9,78	7,83	10,79
SER8052-312MEC	3,1	6,44	7,20	63,0	6,58	7,56	8,00	6,26	8,71
SER8052-452MEC	4,5	8,64	9,50	52,0	4,76	5,74	6,14	5,37	7,68
SER8052-612MEC	6,1	8,64	9,50	45,0	3,44	4,22	4,58	5,17	7,31
SER8052-802MEC	8,0	13,03	14,33	43,0	2,90	3,58	3,86	4,57	6,31
SER8052-103MEC	10	13,03	14,33	40,0	2,24	2,80	3,10	4,61	6,32

Hinweise

When ordering, please specify termination and packaging codes: e.g. SER8052-402MED
Inductance measured at 100 kHz, 0.1 Vrms, using an Agilent/HP 4284A or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and an Agilent/HP 16193A test fixture. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

E = RoHS compliant tin-silver over tin over nickel over phos bronze (pins 1 and 2); Matte tin over nickel over phos bronze (pin 3).
T = RoHS tin-silver-copper over copper (95.5/4/0.5) on all pins. (Special order, added cost)
S = non-RoHS tin-lead (63/37) on all pins. (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

–40°C to +85°C with (40°C rise) Irms

Lagertemperaturbereich:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

Maximale Bauteiltemperatur:

+125°C (ambient + temp rise)

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

Inductance vs Current

Low DCR versions

Inductance vs Current

High Isat Versions

Inductance vs Frequency

Temperature Rise vs Current

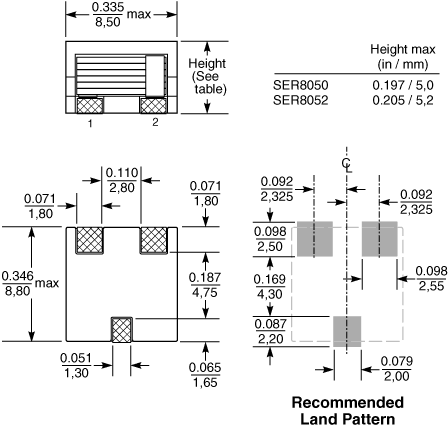

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	5,2	0,4

* Special order

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.86 – 1.0 g

Verpackung:

250/7″ reel, 1000/13″ reel; Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 5.2 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
