AGP4233 Series

TH Shielded High Current Power Inductors

RoHS-konform Halogenfrei AEC-Q flag
Coilcraft AEC-Q200 Grade-1 AGP4233 Series power inductor is ideal for automotive applications and other high-temperature environments. AGP4233 power inductors, along with VER2923 and HA3588, are designed for high-efficiency power supplies requiring high current and high inductance.
  • Flat wire windings provide extremely low DC and AC resistance.
  • Low loss ferrite cores provide flat L vs I
  • Magnetic shielding to minimize EMI
  • Through-hole (TH) mounting for rugged board attachment
  • AEC-Q200 Grade 1 (−40°C to +125°C)
Jetzt kaufen:
Anzahl Einzelpreis
1 $12,97
250 $10,36
500 $9,02
1000 $7,84
2500 $6,72
5000 $6,16

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

. Auf Lager, noch heute versandbereit.
Muster anfordern:

Technische Daten

Electrical specifications at 25°C.

Teilenummer Induktivität (µH) 1
(Toleranz: ±20%)
DCR (mΩ) 2 SRF typ (MHz) 3 Isat (A) 4 Irms (A) 5
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
AGP4233-332ME 3,3 0,67 0,75 27,7 92,0 95,0 98,0 34,0 44,0
AGP4233-562ME 5,6 0,67 0,75 22,8 63,0 65,0 67,0 34,0 44,0
AGP4233-682ME 6,8 2,8 3,0 21,7 92,0 97,8 102 24,0 34,0
AGP4233-103ME 10 2,8 3,0 18,8 56,0 60,0 63,0 24,0 34,0
AGP4233-153ME 15 2,8 3,0 15,2 45,0 47,0 49,0 24,0 34,0
AGP4233-223ME 22 2,8 3,0 12,0 32,8 35,4 36,6 24,0 34,0
AGP4233-333ME 33 2,8 3,0 10,0 22,5 24,7 25,8 24,0 34,0
AGP4233-473ME 47 2,8 3,0 8,5 16,0 17,6 18,6 24,0 34,0
AGP4233-683ME 68 2,8 3,0 6,4 10,6 12,2 13,0 24,0 34,0
AGP4233-104ME 100 2,8 3,0 5,2 6,9 7,8 8,4 24,0 34,0
AGP4233-154ME 150 2,8 3,0 4,2 4,2 5,0 5,4 24,0 34,0
AGP4233-224ME 220 10,5 11,5 5,0 6,4 7,2 7,6 12,4 17,5
AGP4233-334ME 330 10,5 11,5 4,1 4,6 5,2 5,6 12,4 17,5
AGP4233-474ME 470 10,5 11,5 3,6 3,0 3,6 3,8 12,4 17,5
Hinweise
  1. Inductance measured at 100 kHz, 0.1 Vrms, using an Agilent/HP 4192A LCR meter or equivalent.
  2. DCR measured at 25°C on a Keithley 580 micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
  3. SRF measured using an Agilent/HP 8753ES network analyzer. Details
  4. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  5. Irms: Current that causes the specified temperature rise from 25°C ambient. When Irms is greater than Isat, Isat is the more critical specification. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Anschlüsse:

  • RoHS compliant tin-silver over copper.
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform , Halogenfrei
Umgebungstemperaturbereich:
−40°C to +125°C with Irms current
Lagertemperaturbereich:
Component: −40°C to +165°C
Packaging trays: −40°C to +80°C
Maximale Bauteiltemperatur:
+165°C (Ambient + temperature rise)
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Kennlinien

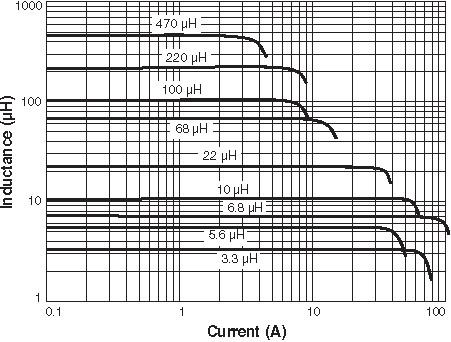

Inductance vs Current

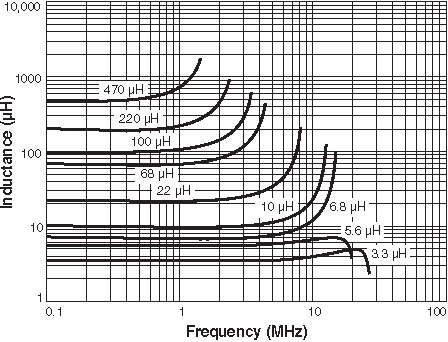

Inductance vs Frequency

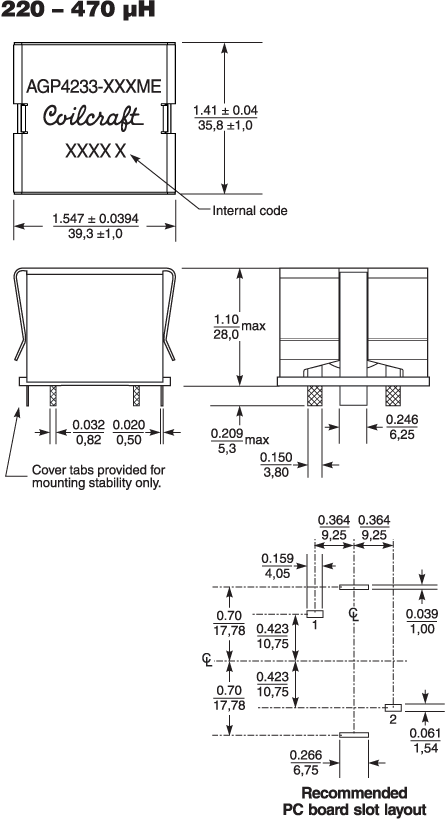

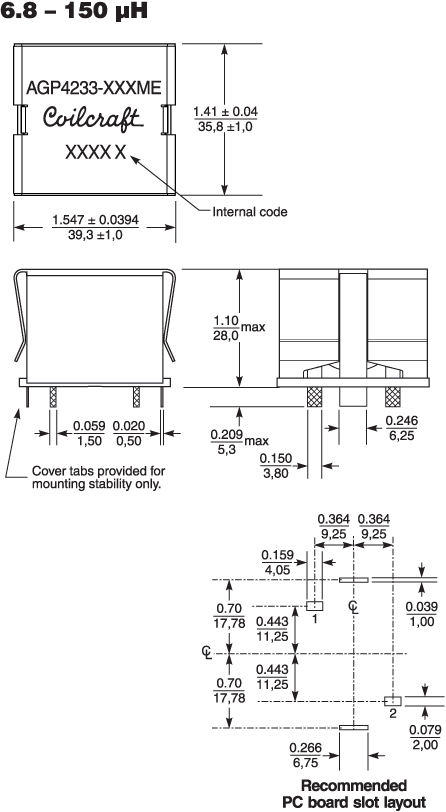

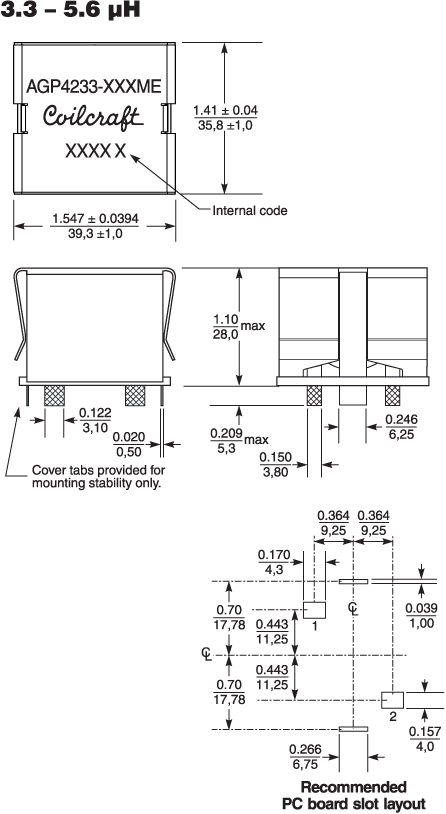

Physikalische Eigenschaften

AGP4233 TH Power Inductors








AGP4233 TH Power Inductors





AGP4233 TH Power Inductors



Allgemeine Spezifikation

Kernmaterial:
Ferrite
Gewicht:
135 g
Verpackung:
9 parts per tray

Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
