3D Model Datasheet

HA4061-AL Flyback Transformer

for LT3751

Developed for Linear Technology LT3751 Capacitor Charger Controller

立即购买:

计数	单价
1	$4.89
320	$4.36
640	$3.64
1000	$3.04
2500	$2.64
5000	$2.31

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

典型应用

与Analog Devices LT3751一起使用

输入电压	输出	Fsw
120 V — 377 V	500 V	100 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	最小电感 5 A (µH)	DCR max (Ω) 2		最大漏电感 (µH) 3	匝数比 4	电压-时间乘积 (V-µs)	隔离电压 (Vrms) 5
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	最小电感 5 A (µH)	Pri	Sec	最大漏电感 (µH) 3	Pri : Sec	电压-时间乘积 (V-µs)	隔离电压 (Vrms) 5
HA4061-AL	125.0	112.5	0.203	1.400	9.17	1 : 3	625	3000

注释

Inductance is measured at 100 kHz, 0.1 Vrms.
DCR is with the windings connected in parallel.
Leakage inductance is for both windings of the primary with the secondary windings shorted.
Turns ratios are with the primary and secondary windings connected in parallel.
3000 Vrms isolation from primary to secondary windings.

端子:

RoHS-compliant. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +125°C.
Tray packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Primary windings and secondary
windings to be connected in
parallel on the PC board

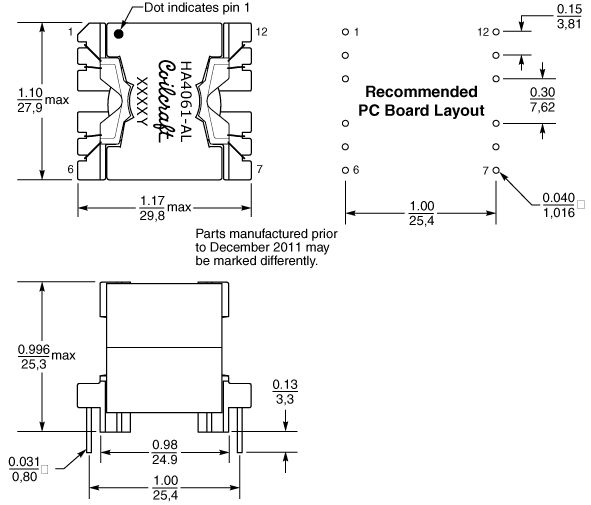

物理特性

一般规格

核心材料:

Ferrite

重量:

37.3 g

包装:

64 per tray

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
