HA4060-AL Flyback Transformer

for LT3751

符合RoHS
  • Developed for Linear Technology LT3751 Capacitor Charger Controller
立即购买:
计数 单价
1 $4.80
240 $4.10
480 $3.58
1200 $2.96
2400 $2.53
4800 $2.33

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与ADIPowerbyLinear LT3751一起使用

输入电压 输出 Fsw
120 V 377 V 500 V 100 kHz

规格

Electrical specifications at 25°C.

零件号 0A时的
电感 (µH) 1
(公差: ±10%)
最小电感
  2 A (µH)
DCR max (Ω) 2 最大
漏电感
(µH) 3
匝数比 4 电压-时间
乘积 (V-µs)
隔离
电压 (Vrms) 5
Pri Sec Pri : Sec
HA4060-AL 300 270 0.422 1.580 2.7 1 : 3 600 3000
注释
  1. Inductance is measured at 100 kHz, 0.1 Vrms.
  2. DCR is with the windings connected in parallel.
  3. Leakage inductance is for both windings of the primary with the secondary windings shorted.
  4. Turns ratios are with the primary and secondary windings connected in parallel.
  5. 3000 Vrms isolation from primary to secondary windings.

端子:

  • RoHS-compliant. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations. Other terminations available at additional cost.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C
储存温度范围:
Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

原理图


Primary windings and secondary
windings to be connected in
parallel on the PC board

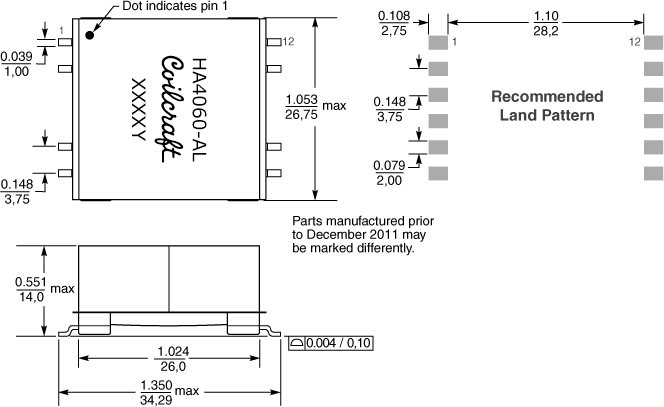

物理特性



一般规格

核心材料:
Ferrite
重量:
23.8 g
包装:
24 per tray

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
