MA5532-AE

RFID Transponder Coil

符合RoHS 无卤素
  • Developed to work with austriamicrosystems AS3935 Franklin Lightning Sensor IC
  • For antenna applications at 500 kHz to 2 MHz
  • Designed to tolerate harsh mechanical environments
  • Plastic base provides exceptional durability
  • RoHS-compliant, halogen free. 260°C compatible. Gold over nickel over phos bronze terminations
立即购买:
计数 单价
1 $1.50
100 $1.20
250 $0.96
500 $0.88
1000 $0.69
2500 $0.59

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH)
at 2.0 MHz 2
(公差: ±2%)
Q min DCR max (Ω) 3 SRF typ (MHz) 4
MA5532-AE_ 100 30 6.0 34
注释
  1. When ordering, please specify packaging code: e.g. MA5532-AED
  2. Inductance and Q measured using Agilent/HP 4287A iLCR meter or equivalent at 2 MHz. For recommended test procedures, contact Coilcraft.
  3. DCR measured on micro-ohmmeter.
  4. SRF measured using Agilent/HP 8753D network analyzer.

端子:

  • Gold over nickel over phos bronze

包装:

  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape (2500 parts per full reel).
  • B = Less than full reel
    In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):
One per billion hours / one billion hours, calculated per Telcordia SR-332

性能曲线

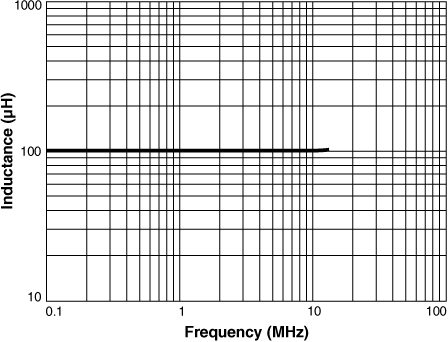

L versus Frequency

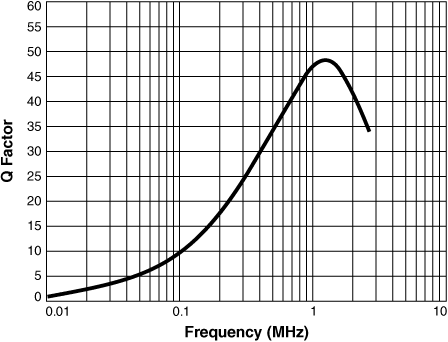

Q versus Frequency

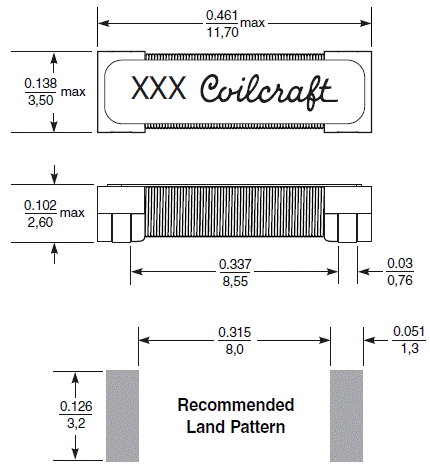

物理特性



卷装规格

Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_i.gif
2500 330 100 13 30,4 24,4 24 8 4 2 2,75 0,35

一般规格

重量:
320 mg
包装:
2500 per 13″ reel Plastic tape: 24 mm wide, 0.35 mm thick, 8 mm pocket spacing, 2.75 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf
