KA4909-AL

Bias Injection Choke

符合RoHS AEC-Q flag
Coilcraft's KA4909-AL bias injection choke was developed for use with Texas Instruments DS90UB901Q serializer and DS90UB902Q deserializer for Low-Voltage Differential Signaling (LVDS) applications. It provides more than 1 kOhm of impedance from 1 MHz – 800 MHz.
  • Provides over 1 kOhm impedance from 1 MHz – 800 MHz.
  • Developed for use with Texas Instruments DS90UB901Q serializer and DS90UB902Q deserializer for Low-Voltage Differential Signaling (LVDS) applications.
  • Can be used with additional 10 µH and 1 µH inductors to achieve even wider band differential signal rejection.
  • AEC-Q200 Grade 3 (−40°C to +85°C)
立即购买:

很抱歉,目前我们的网上商店不提供所选元件。

请点击“请求报价”联系支持部门,以获取自定义报价或了解更多信息。

. 现货,可今天发货.
索取样品:

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±25%)
DCR max (Ω) 3 Irms (mA) 4
KA4909-AL_ 169 0.46 650
注释
  1. When ordering, please specify packaging codes: e.g. KA4909-ALC
  2. Inductance measured from pin 1 to 3 at 100 kHz, 0.007 Vrms, 0 Adc
  3. DCR measured from pin 1 to 3 at 25°C. For other operating temperatures, use this DCR at Temperature calculator
  4. Irms: Current that causes 20°C temperature rise from 25°C ambient. Details

端子:

  • RoHS compliant tin-silver-copper over tin over nickel over phos bronze.

包装:

  • C = 7″ machine ready reel. EIA-481 embossed plastic tape, 250 parts per full reel. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • D = 13″ machine ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
环境
环境:
符合RoHS
环境温度范围:
−40°C to +105°C
储存温度范围:
Component: −40°C to +105°C
Tape and reel packaging: −40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

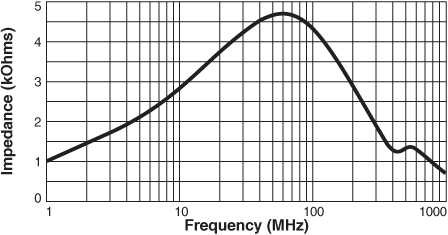

Z vs Frequency

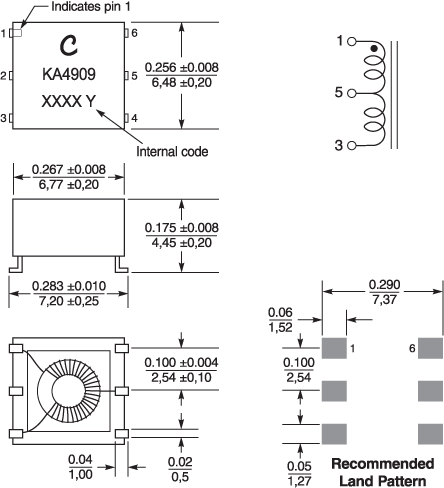

物理特性


卷装规格

Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (300mm) A B C D E W P Po P1 H T part_or_c.gif
250 1000* 178/330 60/100 13 24,4 16,4 16 12 4 2 5.0 0,35

一般规格

核心材料:
Ferrite
重量:
220 mg
包装:
250/7″reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.0 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. Other solvents.
