1205PoC Series

PoC (Power over Coax) Injection Chokes

Optimized for AEC-Q200 power over coax (PoC) applications
Small size to reduce board area of overall system solutions
Board area is only 3.87mm ²
AEC-Q200 Grade 1 (−40°C to +125°C)
High impedance (≥ 1 kOhm) maintained over a wide band frequency range
to isolate AC signal from the DC power
RoHS-compliant, halogen free. 260°C compatible. Matte tin over nickel over silver platinum-glass frit.

立即购买:

零件号

查找我的元件

计数	单价
1	$1.16
100	$1.01
250	$0.77
500	$0.47
1000	$0.36
2500	$0.31
5000	$0.29

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (mA) 5					Irms typ (mA)
零件号 1	电感 (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	25°C	85°C	105°C	125°C	140°C	at 25°C 6	at 85°C 7	at 125°C 8
1205POC-682MRC	6.8	0.36	0.41	220	780	640	580	520	470	880	800	460
1205POC-103MRC	10	0.90	1.0	165	670	520	460	410	360	560	500	300

注释

When ordering, please specify packaging code: e.g. 1205POC-103MRC
Inductance tested at 100 kHz, 0.1 Vrms, 200 mA DC using HP4263 w/SMD-B test fixture or equivalent. DCR measured using a micro-ohmmeter.
DCR measured at 25°C using a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 5071C network analyzer and a Coilcraft SMD-D test fixture.
Isat: DC current that causes 30% inductance drop from its initial value at 200 mA at specified temperature.
Temperature derating curves.
Irms: Current that causes a 40°C rise at 25°C. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms: Current that causes a 40°C rise at 85°C. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms: Current that causes a 15°C rise at 125°C. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

1205POC-103 previously named WA8506-103.

端子:

RoHS compliant matte tin over nickel over silverplatinum-glass frit.

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge). See dimensional drawing for packaging information.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked. See dimensional drawing for packaging information.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with (15°C rise) Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

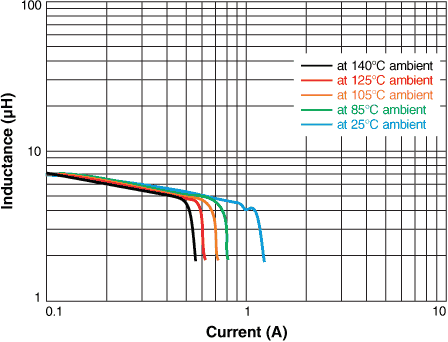

Inductance vs Current

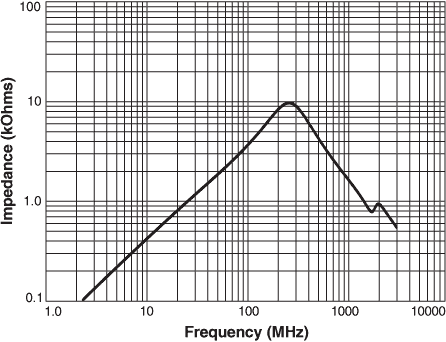

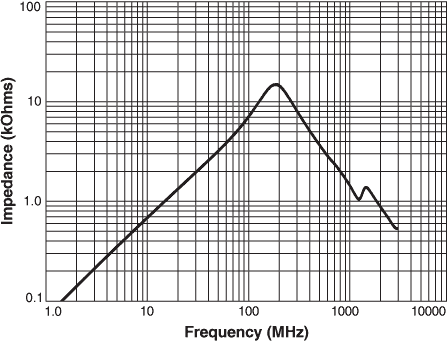

Impedance vs. Frequency

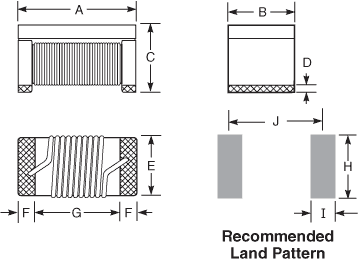

物理特性

A max	B max	C max	D	E	F	G	H	I	J
0.126	0.055	0.093	0.006	0.050	0.012	0.096	0.055	0.018	0.107	inches
3,20	1,40	2,36	0,15	1,27	0,31	2,44	1,40	0,45	2,72	mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	2,36	0,35

* Special order

一般规格

核心材料:

Ferrite

重量:

36 mg

包装:

1000/7″ reel; 3500/13″ reel; Plastic tape: 12 mm wide, 0.35 mm thick, 8 mm pocket spacing, 2.36 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
