0604HQ (1610)

High Q Ceramic Chip Inductors

符合RoHS
Our 0604HQ Series wirewound ceramic chip inductors are only slightly larger than the 0603 size, yet they have significantly higher Q factors – up to 178 at 1.7 GHz. The 0604HQ also has self-resonant frequencies up to 12.3 GHz and comes in values not covered by other 0603 series.
  • Exceptionally high Q – up to 178 at 1.7 GHz!
  • Inductance values from 1.15 to 10.4 nH
  • Very high self-resonant frequencies – up to 12.3 GHz

Need parts for space, military or other critical applications?
 - See Coilcraft CPS 319RAD series.
立即购买:
计数 单价
1 $1.03
200 $0.76
500 $0.68
1000 $0.56
2000 $0.40
4000 $0.25
10000 $0.15

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C351 7 (10 of each) $40.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (nH) 2
(公差: ± 5%)
900 MHz 1.7 GHz Q min
@ 500 MHz 3
SRF min (GHz) 4 DCR max (mΩ) 5 Irms (A) 6 色码 7
L typ Q typ 3 L typ Q typ 3
0604HQ-1N1XJL_ 1.15 1.2 40 1.2 136 25 12.3 21.0 3.0 Black
0604HQ-2N6XJL_ 2.6 2.6 78 2.6 163 45 9.3 26.0 2.0 Brown
0604HQ-4N5XJL_ 4.5 4.5 103 4.7 155 50 5.8 32.0 1.8 Red
0604HQ-5N0XJL_ 5.0 4.9 106 5.2 178 60 5.3 32.0 1.6 Orange
0604HQ-6N8XJL_ 6.8 6.9 101 7.4 172 60 4.7 35.0 1.8 Yellow
0604HQ-7N6XJL_ 7.6 7.4 109 7.9 137 60 4.4 35.0 1.5 Green
0604HQ-10NXJL_ 10.4 10.6 103 11.5 160 60 4.1 37.0 1.5 Blue
注释
  1. When ordering, please specify termination and packaging codes: 0604HQ-10NXJLC
  2. Inductance measured at 500 MHz using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
  3. Q measured at 500 MHz using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
  4. For SRF >6 GHz, measured using an Agilent/HP 8722ES network analyzer and a Coilcraft SMD-D test fixture. For SRF <6 GHz, measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture. Details
  5. DCR measured at 25°C on a Cambridge Technology Micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  6. Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
  7. Each part is marked with a single dot. The color dots are not unique identifiers and correspond to multiple inductance values. Details.

端子:

  • L = RoHS compliant silver-palladium-platinum-glass frit.
  • R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
  • T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel
    In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
环境
环境:
符合RoHS
环境温度范围:
−40°C to +125°C with Irms current.
储存温度范围:
Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C
最高元件温度:
+140°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):
Ceramic

性能曲线

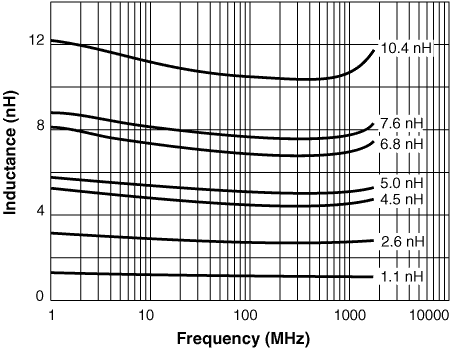

L vs Frequency

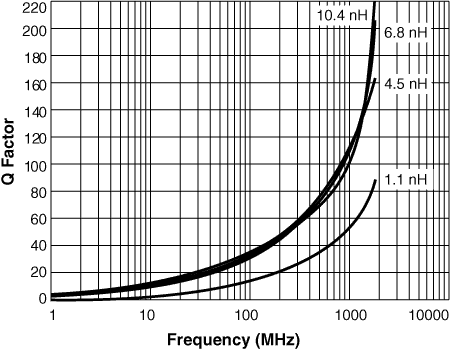

Q vs Frequency

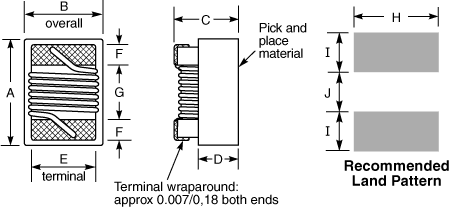

物理特性


A max B max C max D ref E F G H I J
0.073 0.054 0.047 0.025 0.040 0.013 0.034 0.053 0.025 0.025 inches
1,85 1,37 1,19 0,64 1,02 0,33 0,86 1,35 0,63 0,63 mm

卷装规格


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) A B C D E W P Po P1 H T part_or_a.gif
2000 178 60 13 14,4 8,4 8 4 4 2 1,2 0,23

一般规格

核心材料:
Ceramic
重量:
4.6 - 5.6 g
包装:
2000 per 7″ reel; Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.27 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three cycles at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. Details.
