3D Model Datasheet

0201HT (0603)

Low Profile Chip Inductor

The 0201HT is the industry’s lowest profile 0201-sized (metric 0603) chip inductor with a maximum height of just 0.28 mm. It has significantly higher Q and lower DCR than similarly sized thin-film types and is optimized for high-frequency impedance matching in applications such as cell phones, wearable devices, WiFi, Bluetooth, GPS and LTE/5G IoT networks.

0201 sized inductor with low-profile 0.28 mm maximum height
Excellent Q compared to non-wirewound alternatives at this height
Very high SRF – as high as 36 GHz

立即购买:

零件号

查找我的元件

计数	单价
1	$1.22
100	$0.86
500	$0.60
1000	$0.48
2000	$0.41
5000	$0.35

对于大批量采购或非库存产品，点击这里请求报价。

Termination

R = Matte tin over nickel over silver-glass frit

Packaging

W = 7" machine-ready reel

Tolerance

K = 10%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ± 10%)	900 MHz	1.7 GHz	2.4 GHz	SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA)
零件号 1	电感 (nH) 2 (公差: ± 10%)	Q typ 3	Q typ 3	Q typ 3	SRF typ (GHz) 4	DCR max (mΩ) 5	at 25°C 6	at 85°C 7	at 125°C 8
0201HT-0N5XKR_	0.50	31	45	60	36.0	45	650	300	180
0201HT-1N2XKR_	1.2	34	51	69	22.0	80	490	300	180
0201HT-2N2XKR_	2.2	31	45	57	15.0	120	440	300	180
0201HT-2N4XKR_	2.4	30	45	57	14.0	140	400	240	140
0201HT-3N3XKR_	3.3	32	49	62	13.0	150	380	300	180
0201HT-3N6XKR_	3.6	30	46	58	12.0	190	340	240	140
0201HT-4N7XKR_	4.7	33	51	65	10.5	190	340	300	180
0201HT-5N1XKR_	5.1	31	47	58	10.0	235	280	240	140
0201HT-5N6XKR_	5.6	29	43	52	9.0	290	280	190	100
0201HT-6N8XKR_	6.8	30	45	55	8.5	280	250	240	140
0201HT-7N5XKR_	7.5	30	46	56	8.5	450	200	170	90
0201HT-9N1XKR_	9.1	32	48	56	7.5	330	240	240	140
0201HT-11NXKR_	11	31	47	55	7.0	475	200	190	100
0201HT-13NXKR_	13	30	44	50	6.3	520	190	190	100

注释

When ordering, please specify packaging code: e.g. 0201HT-13NXKRW
Inductance measured at 250 MHz using a Coilcraft SMD-F fixture in an Agilent/HP 4287 impedance analyzer with Coilcraft-provided correlation pieces.
Q measured using an Agilent/HP 4991A with an Agilent/HP 16197 test fixture.
SRF measured using an Agilent/HP 8722ES network analyzer and a Coilcraft SMD-D test fixture. Details
DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that cause 15°C rise at 25°C. This information is for reference only and does not represent absolute maximum ratings.
Maximum current that can be applied at 85°C.
Maximum current that can be applied at 125°C.

端子:

RoHS compliant matte tin over nickel over silver-glass frit.

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 7″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +125°C with Irms current

储存温度范围:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+140°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

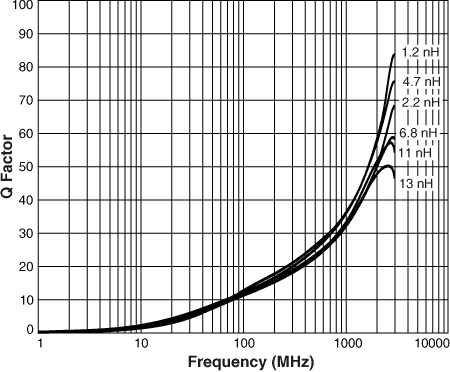

性能曲线

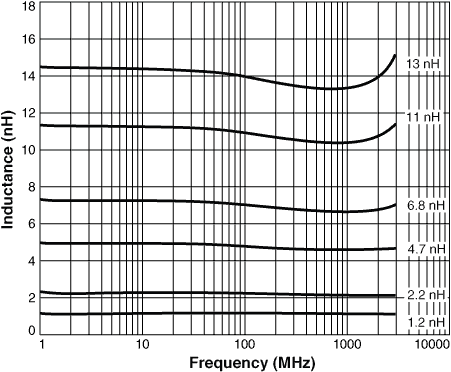

L vs Frequency

Impedance vs Frequency

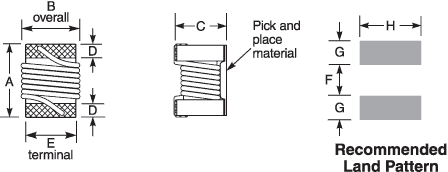

物理特性

A max	B max	C max	D	E	F	G	H
0.023	0.018	0.011	0.004	0.015	0.008	0.00095	0.0195	inches
0,58	0,46	0,28	0,10	0,38	0,20	0,24	0,50	mm

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	100	13	14,4	8,4	8	2	4	2	0,28	0,42
10000*	178	100	13	14,4	8,4	8	2	4	2	0,28	0,42

* Special order

一般规格

核心材料:

Ceramic

重量:

0.14 - 0.24 mg

包装:

2000 or 10,000 per 7″ reel; Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
