PCV-2 Series

Vertical Mount Power Chokes

符合RoHS

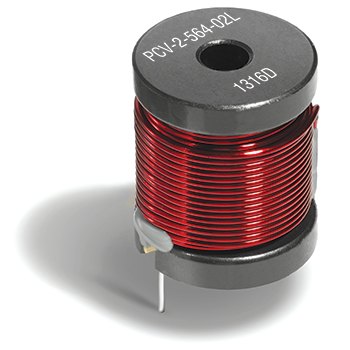

Coilcraft’s PCV-2 Series of high-current, radial-lead unshielded inductors are vertical-mount power chokes which have an open magnetic flux path for high current handling without saturation and have 130°C class insulation.

  • Ferrite bobbin core for highest possible inductance at lowest possible cost
  • All 130°C class insulation
  • RoHS-compliant. Tin-silver over copper terminations.
  • Available in a wide range of standard values
  • For parts with a plastic mounting header see PCV1 Series
  • Samples of values from these and our lower inductance PCV-0 Series are available in Coilcraft Designer's Kit P405

立即购买:
计数 单价
1 $3.66
250 $3.14
500 $2.67
1000 $2.28
2500 $2.04
5000 $1.84

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
P405 18 (48 total) $75.00

规格

Electrical specifications at 25°C.

零件号 电感 (µH) 1
(公差: ±10%)
Irms (A) 2 DCR max (mΩ) 3 A max (inch/mm) B max (inch/mm) C (inch/mm)
±0.015/0.38
D (inch/mm)
±0.004/0.10
E min (inch/mm) 重量 (g)
PCV-2-103-05L 10 10.5 15.0 0.61 / 15.49 0.83 / 21.08 0.42 / 10.67 0.04 / 1.07 0.12 / 2.95 11.8
PCV-2-103-10L 10 11.8 10.0 0.61 / 15.49 0.83 / 21.08 0.5 / 12.7 0.05 / 1.37 0.12 / 2.95 11.8
PCV-2-223-05L 22 7.6 20.0 0.61 / 15.49 0.83 / 21.08 0.42 / 10.67 0.04 / 1.07 0.12 / 2.95 13.7
PCV-2-223-10L 22 10.3 15.0 0.86 / 21.84 0.83 / 21.08 0.58 / 14.73 0.05 / 1.37 0.12 / 2.95 23.3
PCV-2-473-05L 47 5.0 35.0 0.7 / 17.78 0.83 / 21.08 0.48 / 12.19 0.04 / 0.97 0.12 / 2.95 14.8
PCV-2-473-10L 47 9.6 20.0 1.0 / 25.4 0.83 / 21.08 0.7 / 17.78 0.05 / 1.37 0.12 / 2.95 36.9
PCV-2-104-03L 100 4.4 80.0 0.84 / 21.34 0.83 / 21.08 0.58 / 14.73 0.03 / 0.79 0.12 / 2.95 19.2
PCV-2-104-05L 100 5.6 48.0 0.84 / 21.34 0.83 / 21.08 0.7 / 17.78 0.04 / 1.07 0.12 / 2.95 19
PCV-2-104-10L 100 10.1 32.0 1.05 / 26.67 1.0 / 25.4 0.88 / 22.35 0.05 / 1.37 0.12 / 2.95 46.6
PCV-2-184-05L 180 4.0 92.0 0.8 / 20.32 0.9 / 22.86 0.58 / 14.73 0.04 / 0.89 0.12 / 2.95 25.1
PCV-2-184-10L 180 8.0 48.0 1.44 / 36.58 1.05 / 26.67 1.05 / 26.67 0.05 / 1.37 0.18 / 4.45 93.8
PCV-2-224-05L 220 6.6 75.0 1.05 / 26.67 1.0 / 25.4 0.75 / 19.05 0.04 / 1.07 0.12 / 2.95 40
PCV-2-274-03L 270 4.3 130 1.0 / 25.4 0.83 / 21.08 0.75 / 19.05 0.04 / 0.89 0.12 / 2.95 35.7
PCV-2-274-05L 270 5.2 80.0 1.05 / 26.67 1.0 / 25.4 0.8 / 20.32 0.04 / 1.07 0.12 / 2.95 47.8
PCV-2-274-10L 270 7.2 60.0 1.5 / 38.1 1.05 / 26.67 1.08 / 27.43 0.05 / 1.37 0.18 / 4.45 103
PCV-2-394-05L 390 3.9 130 1.16 / 29.34 0.83 / 21.08 0.85 / 21.59 0.04 / 0.97 0.12 / 2.95 42.3
PCV-2-564-02L 560 2.6 270 0.8 / 20.32 0.9 / 22.86 0.57 / 14.48 0.03 / 0.71 0.12 / 2.95 26.8
PCV-2-564-06L 560 4.0 170 1.21 / 30.73 1.05 / 26.67 0.9 / 22.86 0.04 / 0.97 0.12 / 2.95 66.4
PCV-2-564-08L 560 7.0 90.0 1.5 / 38.1 1.43 / 36.32 1.08 / 27.43 0.05 / 1.37 0.18 / 4.45 135.6
PCV-2-684-01L 680 1.3 700 0.7 / 17.78 0.83 / 21.08 0.5 / 12.7 0.02 / 0.46 0.12 / 2.95 12.5
PCV-2-105-02L 1000 2.3 370 1.0 / 25.4 0.83 / 21.08 0.72 / 18.29 0.03 / 0.71 0.12 / 2.95 39.2
注释
  1. Tested at 15.75 kHz, 0.1 Vrms, with DC bias applied up to the Irms current.
  2. Current that causes a 40°C temperature rise from 25°C ambient.
  3. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.

端子:

  • Tin-silver over copper
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C with Irms current
储存温度范围:
Component: –40°C to +125°C
Tray packaging: –40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

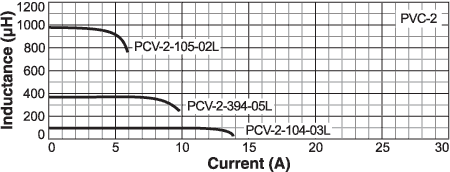

Inductance vs Current

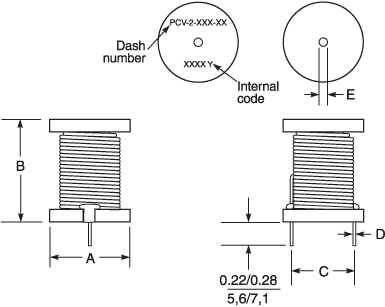

物理特性


包装

Part number Parts
per tray
Maximum parts
per carton
PCV-2-103-05L 49 245
PCV-2-103-10L 49 245
PCV-2-104-03L 49 245
PCV-2-104-05L 49 245
PCV-2-104-10L 49 245
PCV-2-105-02L 49 245
PCV-2-184-05L 49 245
PCV-2-184-10L 25 100
PCV-2-223-05L 49 245
PCV-2-223-10L 49 245
PCV-2-224-05L 49 245
Part number Parts
per tray
Maximum parts
per carton
PCV-2-274-03L 49 245
PCV-2-274-05L 49 245
PCV-2-274-10L 25 100
PCV-2-394-05L 25 125
PCV-2-473-05L 49 245
PCV-2-473-10L 49 245
PCV-2-564-02L 49 245
PCV-2-564-06L 25 100
PCV-2-564-08L 25 100
PCV-2-684-01L 49 245

一般规格

重量:
11.8 g - 135.6 g
