DC1012 Series

Power Inductors

符合RoHS AEC-Q flag

Coilcraft DC1012 Series radial-leaded power inductors provide a low-cost, high-efficiency option for choke applications. They feature industry-standard lead spacing and are available in a wide range of inductance values and current ratings up to 9.5 Amps.

  • Small and cost effective power inductors
  • Use as DC-DC converter inductors and as output ripple filter chokes
  • Vertical style helps reduce power supply size
  • AEC-Q200 Grade 3 (−40°C to +85°C)
立即购买:
计数 单价
1 $2.26
100 $1.67
200 $1.24
400 $0.95
500 $0.73
1000 $0.57
2500 $0.45
5000 $0.39

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
P410 19 (3 of each) $85.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±10%)
DCR max (mΩ) 3 SRF typ (MHz) Isat (A) 4 Irms (A) 5
10% drop 20% drop 30% drop 20°C rise 40°C rise
DC1012-103L 10 26.0 35.0 4.80 5.58 5.94 3.5 4.6
DC1012-123L 12 30.0 25.0 4.52 5.20 5.60 3.1 4.3
DC1012-153L 15 35.0 18.0 3.92 4.50 4.84 2.8 4.2
DC1012-183L 18 38.0 15.0 3.65 4.25 4.47 2.7 3.7
DC1012-223L 22 46.0 13.0 3.37 3.81 4.17 2.6 3.6
DC1012-273L 27 70.0 12.0 2.97 3.37 3.64 2.2 2.9
DC1012-333L 33 80.0 11.0 2.67 3.10 3.37 2.0 2.7
DC1012-393L 39 88.0 10.0 2.45 2.85 3.05 1.9 2.6
DC1012-473L 47 100 9.0 2.25 2.65 2.85 1.8 2.4
DC1012-563L 56 150 8.0 2.06 2.35 2.48 1.7 2.1
DC1012-683L 68 170 7.0 1.90 2.08 2.28 1.6 1.9
DC1012-823L 82 200 6.0 1.75 2.03 2.10 1.5 1.7
DC1012-104L 100 220 5.5 1.56 1.76 1.87 1.2 1.5
DC1012-124L 120 290 5.0 1.30 1.62 1.72 0.92 1.4
DC1012-154L 150 340 4.5 1.28 1.45 1.54 0.90 1.3
DC1012-184L 180 380 4.0 1.17 1.34 1.44 0.81 1.2
DC1012-224L 220 440 3.5 1.07 1.22 1.31 0.72 1.0
DC1012-274L 270 620 3.3 0.96 1.11 1.19 0.70 0.90
DC1012-334L 330 700 3.0 0.86 0.99 1.06 0.68 0.88
注释
  1. When ordering, please specify termination code: e.g. DC1012-334L
  2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
  3. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
    Temperature derating curves.
  5. Irms: Current that causes the speicified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • L = RoHS compliant tin-silver (96.5/3.5) over tin over copper over steel.
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)
环境
环境:
符合RoHS
环境温度范围:
−40°C to +85°C with Irms current.
储存温度范围:
Component: −40°C to +125°C
Packaging trays or tape: −40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)

性能曲线

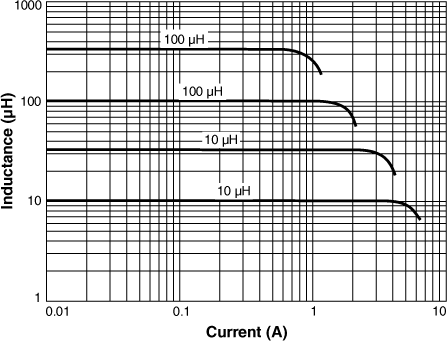

Inductance vs Current

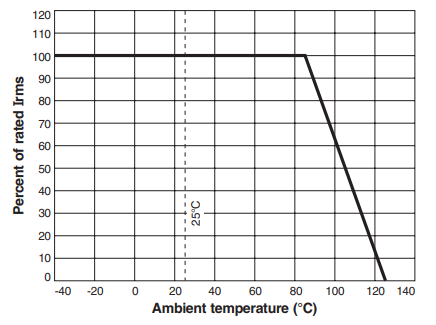

Irms Derating

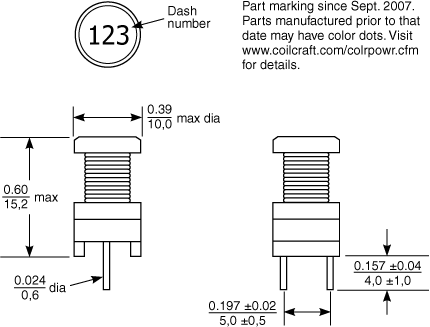

物理特性




一般规格

重量:
2.1 – 3.0 g
包装:
100 parts per tray

焊接/清洗

抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
