ME3215 Series

Surface Mount Power Inductors

符合RoHS
Coilcraft ME3215 Series unshielded surface-mount power inductors combine current ratings up to 2.8 Amps with low DC resistance on an industry-standard 3225 footprint (3.2 x 2.5 mm).
  • Cost-effective design
  • Industry-standard footprint
  • Open magnetic path
  • Low height - 1.55 mm
立即购买:
计数 单价
1 $0.73
250 $0.48
500 $0.36
1000 $0.25
2000 $0.22
5000 $0.19

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C408 11 (3 of each) $45.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2 公差 (%) DCR max (Ω) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
10% drop 20% drop 30% drop 20°C rise 40°C rise
ME3215-102ML_ 1.0 20 0.058 100 2.3 2.6 2.8 1.7 2.3
ME3215-222ML_ 2.2 20 0.11 64.0 1.6 1.8 2.0 1.3 1.7
ME3215-332ML_ 3.3 20 0.17 55.0 1.2 1.4 1.5 1.1 1.5
ME3215-472ML_ 4.7 20 0.25 43.0 1.1 1.2 1.3 0.83 1.1
ME3215-103KL_ 10 10 0.51 26.0 0.71 0.81 0.85 0.60 0.79
ME3215-153KL_ 15 10 0.77 26.0 0.58 0.65 0.70 0.48 0.65
ME3215-223KL_ 22 10 1.0 19.0 0.50 0.57 0.61 0.42 0.56
ME3215-333KL_ 33 10 1.5 17.0 0.42 0.47 0.51 35.0 0.48
ME3215-473KL_ 47 10 2.3 15.0 0.33 0.38 0.41 0.35 0.48
ME3215-683KL_ 68 10 3.4 12.0 0.28 0.31 0.34 0.24 0.32
ME3215-104KL_ 100 10 4.7 10.0 0.23 0.26 0.27 0.18 0.25
注释
  1. When ordering, please specify termination and packaging codes: e.g. ME3215-104KLC
  2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using Coilcraft SMD-A fixture in Agilent/HP 4284A impedance analyzer or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter and Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using Agilent/HP 8753D network analyzer and a Coilcraft SMD-D fixture. Details
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • L = RoHS compliant tin-silver-copper over tin over nickel over silver.
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (2000 parts per full reel).
  • B = Less than full reel
    In tape, not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
  • 13" reel, machine-ready
    EIA-481 embossed plastic tape. Factory order only, not stocked (7000 parts per full reel).
环境
环境:
符合RoHS
环境温度范围:
−40°C to +85°C with (40°C rise) Irms current
储存温度范围:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+125°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

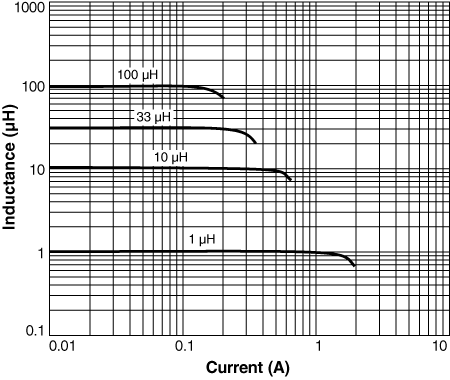

Inductance vs. Current

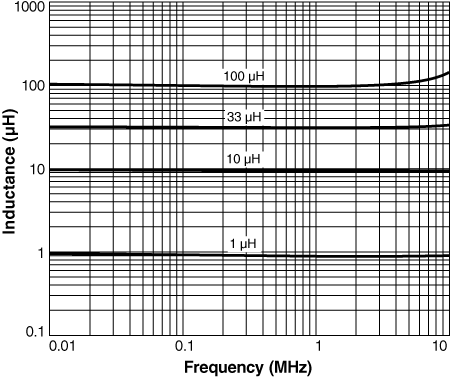

Inductance vs. Frequency

物理特性


卷装规格

Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_k.gif
2000 7000* 178/330 60/100 13 14,4 8,4 12 4 4 2 2,25 0,25
* Special order

一般规格

核心材料:
Ferrite
重量:
46 - 48 mg
包装:
2000/7″ reel; 7000/13″ reel Plastic tape: 12 mm wide, 0.25 mm thick, 4 mm pocket spacing, 2.25 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
