0603PS Series

High SRF, High Current Inductors

符合RoHS 无卤素
Coilcraft 0603PS Series shielded power inductors offer a unique construction that achieves exceptionally high self resonant frequencies (SRFs). Full magnetic shielding assures the lowest possible EMI.
  • Higher SRF series
  • High inductance with tight tolerance
  • Excellent current handling
  • Full magnetic shielding minimizes EMI​
Need parts for space, military or other critical applications?
 - See Coilcraft CPS 312PHA series.
立即购买:
计数 单价
1 $1.08
250 $0.90
500 $0.75
1000 $0.56
2000 $0.41
4000 $0.32

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C346 16 (6 of each) $50.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±10%)
DCR max (Ω) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
0603PS-781KL_ 0.78 0.24 475 0.55 1.3
0603PS-102KL_ 1.0 0.26 390 0.40 1.0
0603PS-182KL_ 1.8 0.54 155 0.39 0.70
0603PS-222KL_ 2.2 0.75 245 0.33 0.60
0603PS-272KL_ 2.7 0.75 127 0.33 0.55
0603PS-332KL_ 3.3 0.88 72.0 0.32 0.50
0603PS-392KL_ 3.9 1.0 72.0 0.27 0.48
0603PS-472KL_ 4.7 1.1 55.0 0.26 0.47
0603PS-562KL_ 5.6 1.2 43.0 0.25 0.41
0603PS-682KL_ 6.8 1.4 36.0 0.23 0.40
0603PS-822KL_ 8.2 1.4 30.0 0.22 0.39
0603PS-103KL_ 10 1.6 30.0 0.21 0.38
0603PS-153KL_ 15 1.9 22.0 0.16 0.35
0603PS-223KL_ 22 3.0 16.0 0.13 0.27
0603PS-333KL_ 33 5.6 12.0 0.10 0.20
0603PS-473KL_ 47 5.7 12.0 0.10 0.18
注释
  1. When ordering, please specify termination and packaging codes: e.g. 0603PS-473KLC
  2. Inductance measured at 100 kHz, 0.1 Vrms, using a Coilcraft SMD-A fixture in an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured at 25°C on a Cambridge Technology Micro-ohmmeter and a Coilcraft CCF840 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
  5. Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.



端子:

  • L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit terminations
  • R = Halogen free component. Matte tin over nickel over silver-platinum-glass frit terminations.

包装:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel
    In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
  • 13" reel, machine-ready
    EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +65°C with Irms current
储存温度范围:
Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+105°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

Inductance vs. Current

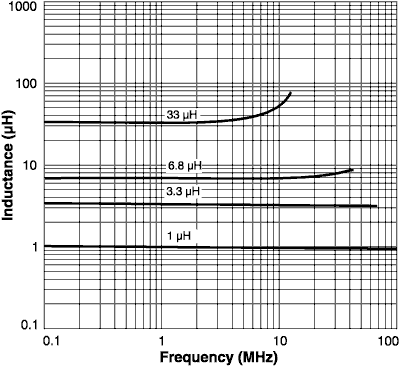

Inductance vs. Frequency

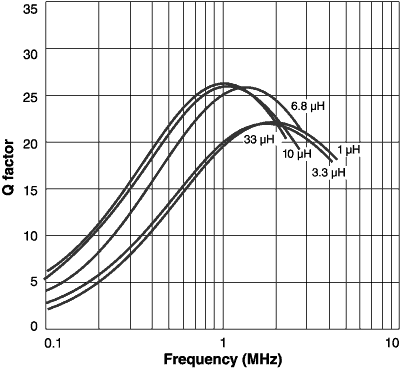

Q versus Frequency

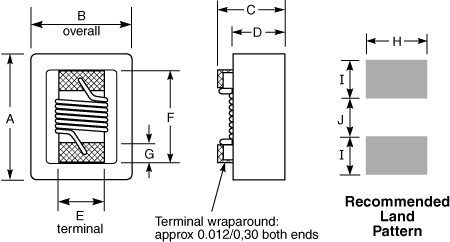

物理特性



A max B max C max D E F G H I J
0.102 0.082 0.071 0.049 0.030 0.060 0.013 0.040 0.025 0.025 inches
2,59 2,08 1,80 1,24 0,76 1,52 0,33 1,02 0,64 0,64 mm

卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_i.gif
2000 7500* 178/330 60/100 13 14,4 8,4 8 4 4 2 1,8 0,23
*Special order

一般规格

核心材料:
Ceramic/Ferrite
重量:
26.4– 27.9 mg
包装:
2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.8 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
