HA3588-BL

High Current Power Inductor

HA3588-BL Series power inductor, along with VER2923, is designed for high-efficiency power supplies requiring high current and high inductance.

Flat wire windings provide extremely low DC and AC resistance.
Low loss ferrite cores provide flat L vs I
Magnetic shielding to minimize EMI
Vertical (TH) mounting for rugged board attachment
Designed for high current power supplies

立即购买:

计数	单价
1	$5.40
200	$4.63
400	$4.02
1200	$3.50
2400	$3.00
5000	$2.75

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver

Packaging

B = Less than full reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号	电感 (µH) 1 (公差: ±20%)	DCR max (mΩ) 2	SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
零件号	电感 (µH) 1 (公差: ±20%)	DCR max (mΩ) 2	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20°C rise	40°C rise
HA3588-BL	10	2.6	17.0	30.0	34.0	37.0	19	26

注释

Inductance tested at 300 kHz, 0.1 Vrms, using an Agilent/HP 4192A or equivalent.
DCR measured at 25°C on a Keithley 580 micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753ES network analyzer or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. Temperature rise of the core is usually less than that of the winding. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

RoHS compliant tin-silver over copper. Other terminations available at additional cost.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with Irms current

储存温度范围:

Component:−40°C to +125°C
Packaging trays:−40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

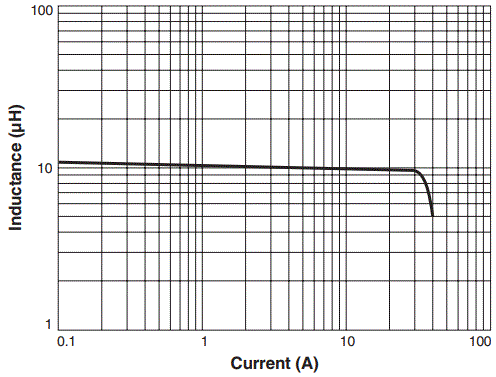

Inductance vs Current

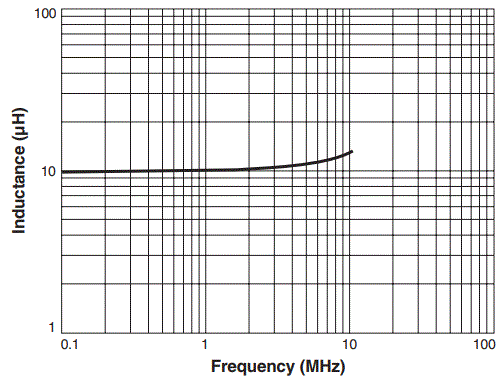

Inductance vs Frequency

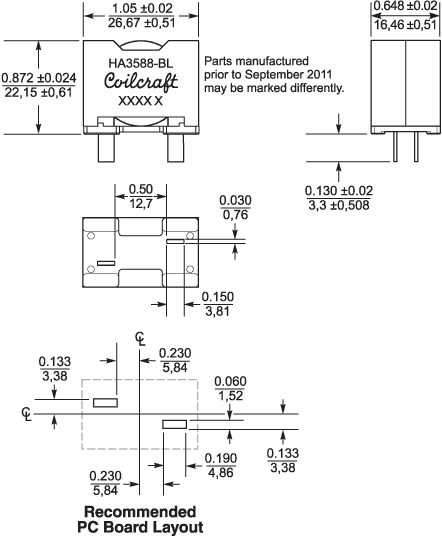

物理特性


Caution: This series is not intended for use in high vibration or mechanical shock environments. We advise using additional means of securing the part to the circuit board to ensure its adhesion.

一般规格

核心材料:

Ferrite

重量:

37 g

包装:

25 per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
