MSS1260T Series

High Temperature Power Inductors

符合RoHS AEC-Q flag
Coilcraft MSS1260T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of industry-standard footprints and inductance values, making them a cost-effective option for a variety of general-purpose applications.
  • Low-loss ferrite drum core for flat inductance vs current
  • Low DC resistance for greater efficiency
  • Excellent current handling
  • Magnetic shielding allows high-density mounting
  • AEC-Q200 Grade 1 (−40°C to +125°C)​
Need parts for space, military or other critical applications? See Coilcraft CPS 590PNB series.
立即购买:
计数 单价
1 $1.65
250 $1.31
500 $1.14
1000 $0.89
2500 $0.76
5000 $0.71

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C418 33 (3 of each) $100.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2 公差 (%) DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
MSS1260T-102NL_ 1.0 30 5.8 6.5 100 19.1 21.2 22.8 6.0 8.0
MSS1260T-152NL_ 1.5 30 8.8 9.8 80.0 14.4 16.4 17.6 5.3 7.6
MSS1260T-222NL_ 2.2 30 11.5 12.8 55.0 12.3 14.0 15.1 5.2 7.3
MSS1260T-332NL_ 3.3 30 12.6 14.0 42.0 10.9 12.2 13.1 5.0 7.0
MSS1260T-472ML_ 4.7 20 13.9 15.5 38.0 9.9 11.1 12.0 4.5 7.0
MSS1260T-562ML_ 5.6 20 14.9 16.6 30.0 8.5 9.6 10.4 4.0 6.4
MSS1260T-682ML_ 6.8 20 16.6 18.5 27.0 7.8 8.8 9.4 3.8 5.9
MSS1260T-822ML_ 8.2 20 17.0 20.0 26.0 6.4 7.4 8.0 3.4 4.8
MSS1260T-103ML_ 10 20 21.5 23.9 22.0 6.0 6.9 7.5 3.0 4.0
MSS1260T-123ML_ 12 20 24.5 27.3 20.0 5.7 6.6 7.1 2.8 3.7
MSS1260T-153ML_ 15 20 27.0 32.0 18.0 5.3 6.0 6.5 2.6 3.5
MSS1260T-183ML_ 18 20 30.0 33.0 16.0 4.8 5.5 6.0 2.5 3.3
MSS1260T-223ML_ 22 20 36.6 40.7 15.0 4.4 5.0 5.4 2.3 3.1
MSS1260T-273ML_ 27 20 48.0 52.0 13.0 3.8 4.3 4.7 2.1 2.9
MSS1260T-333ML_ 33 20 54.0 57.0 12.4 3.5 4.0 4.3 2.0 2.7
MSS1260T-393ML_ 39 20 58.0 64.5 12.0 3.3 3.8 4.1 1.9 2.6
MSS1260T-473ML_ 47 20 75.0 82.0 11.6 2.8 3.3 3.5 1.9 2.5
MSS1260T-563ML_ 56 20 85.0 89.0 10.5 2.6 3.0 3.3 1.8 2.4
MSS1260T-683ML_ 68 20 94.5 105 10.0 2.5 2.8 3.0 1.7 2.3
MSS1260T-823ML_ 82 20 120 129 8.6 2.2 2.5 2.7 1.6 2.2
MSS1260T-104ML_ 100 20 139 146 7.8 2.1 2.3 2.5 1.5 2.1
MSS1260T-124KL_ 120 10 193 195 6.8 1.8 2.1 2.3 1.4 1.9
MSS1260T-154KL_ 150 10 209 216 6.4 1.6 1.9 2.1 1.2 1.7
MSS1260T-184KL_ 180 10 234 246 6.1 1.5 1.7 1.8 1.1 1.6
MSS1260T-224KL_ 220 10 306 335 5.5 1.3 1.5 1.6 1.0 1.4
MSS1260T-274KL_ 270 10 355 400 4.3 1.2 1.4 1.5 0.90 1.5
MSS1260T-334KL_ 330 10 482 494 4.0 1.0 1.2 1.3 0.84 1.2
MSS1260T-394KL_ 390 10 515 533 3.6 1.0 1.2 1.3 0.78 1.1
MSS1260T-474KL_ 470 10 705 733 3.0 0.91 1.0 1.1 0.70 0.96
MSS1260T-564KL_ 560 10 776 800 2.8 0.87 0.98 1.0 0.64 0.88
MSS1260T-684KL_ 680 10 887 910 2.6 0.78 0.89 0.96 0.58 0.80
MSS1260T-824KL_ 820 10 1130 1152 2.5 0.69 0.78 0.85 0.53 0.73
MSS1260T-105KL_ 1000 10 1295 1335 2.4 0.59 0.67 0.73 0.48 0.68
注释
  1. When ordering, please specify termination and packaging codes: e.g. MSS1260T-105KLC
  2. Inductance measured at 100 kHz, 0.1 Vrms using a Coilcraft SMD-A fixture in an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD -D test fixture.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • L = RoHS compliant matte tin over nickel over phos bronze.
  • T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • 13" reel, machine-ready
    EIA-481 embossed plastic tape. Factory order only, not stocked (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reelIn an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C with (40°C rise) Irms current
储存温度范围:
Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+165°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):
0.48 per billion hours / 2.083E+09 hours, calculated per Telcordia SR-332

性能曲线

Inductance vs. Frequency

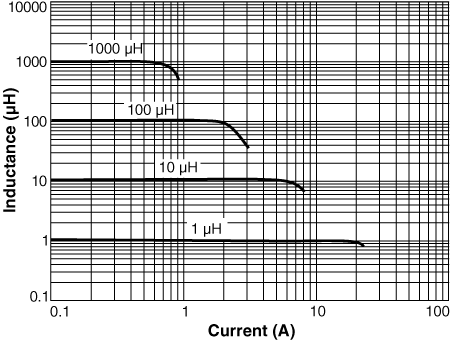

Inductance vs. Current

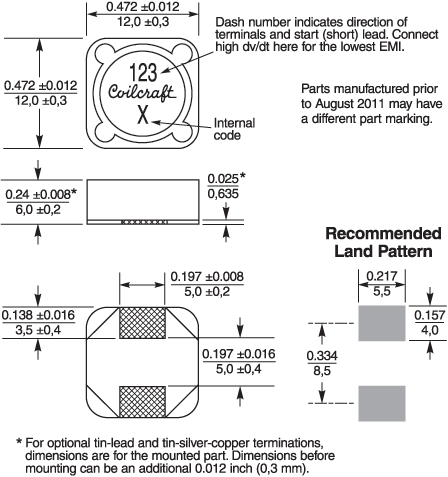

物理特性


卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation ‡
13" (330 mm) A B C D E W P Po P1 H T part_or_o.gif
500 330 100 13 30,4 24,4 24 16 4 2 6,9 0,5
‡ Part marking does not indicate polarity.

一般规格

核心材料:
Ferrite
重量:
2.8 - 3.3 g
包装:
500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.96 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
