LPS3030 Series

Shielded Power Inductors

符合RoHS 无卤素 AEC-Q flag
  • Small shielded power inductor – only 3.0 × 3.0 × 3.0 mm high
  • Handles current up to 0.70 A
  • RoHS-compliant, halogen free. 260°C compatible. Matte tin over nickel over silver terminations
  • AEC-Q200 Grade 1 (−40°C to +125°C)
  • COTS Plus tin-silver-copper and tin-lead terminations available
立即购买:
计数 单价
1 $1.39
250 $0.99
600 $0.57
1200 $0.45
2500 $0.38
5000 $0.35

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C485 17 (3 of each) $65.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR max (Ω) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
10% drop 20% drop 30% drop 20°C rise 40°C rise
LPS3030-103 10 0.15 42.8 0.64 0.68 0.70 0.90 1.2
LPS3030-153 15 0.24 35.7 0.54 0.56 0.60 0.75 1.0
LPS3030-183 18 0.27 26.1 0.50 0.52 0.54 0.70 0.90
LPS3030-223 22 0.31 26.0 0.42 0.46 0.48 0.65 0.85
LPS3030-333 33 0.39 19.6 0.36 0.40 0.42 0.60 0.80
LPS3030-473 47 0.58 14.6 0.32 0.32 0.33 0.50 0.65
LPS3030-683 68 0.73 12.1 0.24 0.26 0.27 0.45 0.62
LPS3030-104 100 1.1 9.8 0.21 0.22 0.23 0.35 0.46
LPS3030-124 120 1.4 8.7 0.19 0.20 0.21 0.32 0.42
LPS3030-154 150 1.9 7.4 0.17 0.18 0.19 0.26 0.34
LPS3030-184 180 2.1 7.0 0.16 0.16 0.17 0.24 0.32
LPS3030-224 220 2.5 6.0 0.14 0.15 0.16 0.22 0.30
LPS3030-334 330 4.3 4.9 0.11 0.12 0.13 0.18 0.23
LPS3030-474 470 5.6 4.1 0.10 0.10 0.11 0.16 0.20
LPS3030-564 560 7.9 3.3 0.080 0.090 0.10 0.12 0.16
LPS3030-684 680 8.9 2.9 0.070 0.080 0.090 0.11 0.15
LPS3030-824 820 10.9 2.9 0.060 0.070 0.080 0.10 0.14
注释
  1. When ordering, please specify termination and packaging codes: e.g. LPS3030-824MRC
  2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4192A impedance analyzer or equivalent. Inductance at 1 MHz is the same for parts with SRF >10 MHz.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 8753ES or equivalent.
  5. Isat: DC current at which the inductance drops the specified amount from its value without current. Details
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • R = RoHS compliant matte tin over nickel over silver.
  • Q = RoHS tin-silver-copper (95.5/4/0.5)(Special order, added cost)
  • P = non-RoHS tin-lead (63/37)(Special order, added cost)

包装:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (600 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape. Factory order only, not stocked (2000 parts per full reel).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C with (40°C rise) Irms current
储存温度范围:
Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+165°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

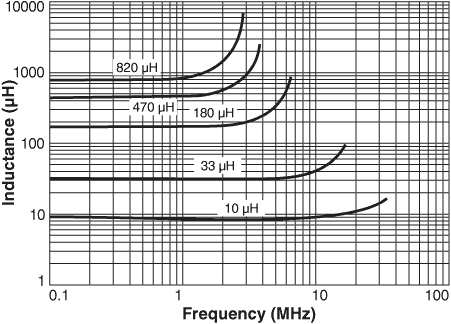

Inductance vs. Frequency

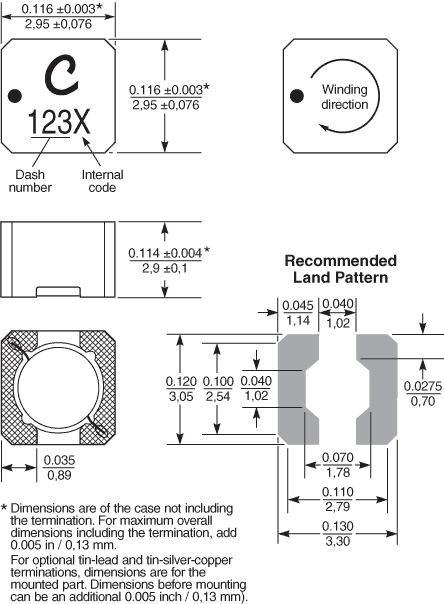

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_ad.gif
600 2000* 178/330 60/100 13 18,4 12,4 12 8 4 2 3,3 0,3
* Special order

一般规格

核心材料:
Ferrite
重量:
80 – 90 mg
包装:
600/7″ reel; 2000/13″ reel; Plastic tape: 12 mm wide, 0.30 mm thick, 8 mm pocket spacing, 3.3 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycle
焊接之前,请参阅焊接线艺元件
推荐的取放吸嘴:
OD: 3 mm; ID: ≤ 1.5 mm
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
