3D Model Datasheet

0805PB Series

Wirewound Ferrite Beads

The 0805PB Series offers exceptional impedance performance and extremely lower DCR that is optimized for high-frequency noise suppression on high current power supply lines, providing superior performance than traditional multilayer ferrite beads. It also features robust mechanical structure, and is AEC-Q200 qualified for use in automotive applications and other harsh environments.

Optimized for high-frequency noise suppression on high-current power supply lines
Current ratings as high as 4.4 Amps
AEC-Q200 Grade 1 (–40°C to +125°C)
Wider spectrum of suppression than traditional ferrite beads
Robust mechanical structure for use in automotive applications and other harsh environments

立即购买:

零件号

查找我的元件

计数	单价
1	$1.31
200	$0.98
500	$0.75
1000	$0.52
2000	$0.39
4000	$0.29

对于大批量采购或非库存产品，点击这里请求报价。

Termination

R = Matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

Tolerance

M = 20%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	典型阻抗 (Ω)			SRF typ (MHz) 4	DCR max (mΩ) 5	Irms (A)
零件号 1	电感 (µH) 2	100 MHz 3 (公差: ±20%)	900 MHz	1.7 GHz	SRF typ (MHz) 4	DCR max (mΩ) 5	at 25°C 6	at 85°C 7	at 125°C 8
0805PB-250XMR_	0.10	25	75	120	3200	12.2	4.40	3.96	2.25
0805PB-101XMR_	0.40	100	250	400	1800	19.0	3.20	2.88	1.64
0805PB-221XMR_	0.90	220	700	1000	1100	30.5	3.00	2.70	1.53
0805PB-331XMR_	1.2	330	1100	1350	950	37.8	2.40	2.17	1.23
0805PB-601XMR_	2.3	600	1700	1700	680	62.2	1.90	1.70	0.96
0805PB-102XMR_	3.6	1000	2700	1500	480	139.1	1.40	1.26	0.71

注释

When ordering, please specify termination and packaging codes: e.g. 0805PB-102XMRC
Inductance measured at 100 KHz at 0.1 Vrms, using Coilcraft SMD-A fixture on an Agilent 4263 (or equivalent) without correlation.
Impedance measured at 100 MHz at 0.5 Vrms, using E4982 (or equivalent) with correlation.
SRF is measured on an Agilent 8753ES (or equivalent) with a Coilcraft SMD-D test fixture.
DCR is measured on a Keithley 580 Micro-ohmmeter (or equivalent) with a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that cause 40°C rise at 25°C.
Current that cause 40°C rise at 85°C.
Current that cause 15°C rise at 125°C.

端子:

R = RoHS compliant matte tin over nickel over silver.
Q = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise). Derating.

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

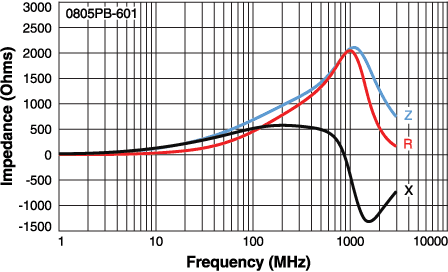

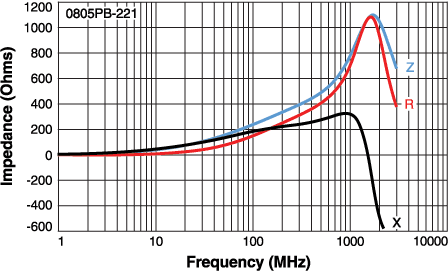

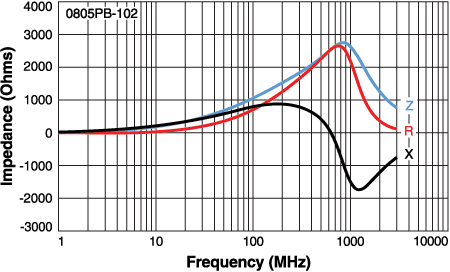

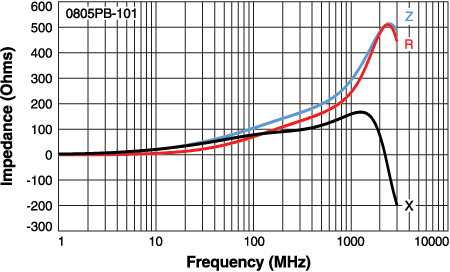

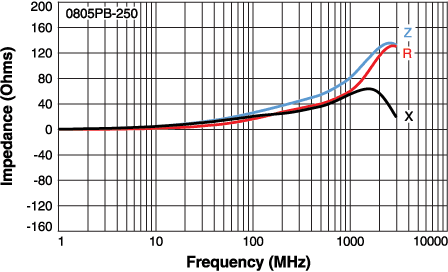

Impedance vs Frequency

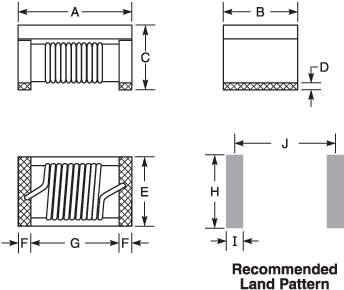

物理特性

A max	B max	C max	D ref	E ref	F ref	G ref	H nom	I nom	J nom
0.086	0.054	0.047	0.006	0.050	0.018	0.096	0.055	0.026	0.066	inches
2,18	1,37	1,20	0,15	1,27	0,46	2,44	1,40	0,66	1,68	mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,3	0,23

* Special order

一般规格

核心材料:

Ferrite

重量:

14.0 – 15.5 mg

包装:

2000/7″reel, 7500/13″reel; Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.3 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
