0201AF (0603) Series

Wirewound Ferrite Beads

符合RoHS 无卤素
Our 0201AF (0603) Series wirewound ferrite beads have higher performance than others in the market, including high impedance across a wide bandwidth (up to GHz band). Ferrite construction and heavy gage wire means high current handling for their 0201 size. Extremely low DCR assures lowest insertion loss for high efficiency in mobile applications. These tiny beads eliminate noise in small power supplies and provide isolation of RF signals.
  • Higher performance than other surface-mount ferrite beads
  • High impedance across a wide bandwidth; up to GHz band
  • Ferrite construction and heavy gauge wire for high current handling
  • Extremely low DCR for high current applications – as low as 0.15 Ohms
  • Eliminates high frequency noise in power supplies or RF signal isolation applications
立即购买:

很抱歉,目前我们的网上商店不提供所选元件。

请点击“请求报价”联系支持部门,以获取自定义报价或了解更多信息。

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C471 8 (20 of each) $45.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (nH) 2
(公差: ±10%)
典型阻抗 (Ω) SRF typ (MHz) 3 DCR max (Ω) 4 Irms (mA) 5
100 MHz 900 MHz
0201AF-330XKR_ 33 19.89 159.90 3400 0.150 340
0201AF-510XKR_ 51 29.56 238.50 2900 0.300 280
0201AF-680XKR_ 68 39.89 330.50 2600 0.330 220
0201AF-910XKR_ 91 53.12 437.40 2350 0.370 200
0201AF-111XKR_ 110 64.71 548.80 2100 0.480 170
0201AF-141XKR_ 140 81.77 706.30 2000 0.650 160
0201AF-171XKR_ 170 101.90 910.90 1850 0.860 140
0201AF-201XKR_ 200 118.60 1089.00 1700 1.250 110
注释
  1. When ordering, please specify packaging code: e.g. 0201AF-201XKRW
  2. Inductance measured at 7.9 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer.
  3. SRF is measured on an Agilent 8753D network analyser (or equivalent) with a Coilcraft SMD-D test fixture.
  4. DCR measured at 25°C on a Cambridge Technology micro-ohmmeter (or equivalent) and a Coilcraft CCF858 test fixture, For other operating temperatures, use this DCR at Temperature calculator.
  5. Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

  • RoHS compliant matte tin over nickel over silver-platinumglass frit.

包装:

  • W7" machine-ready reel
    EIA-481 punched paper tape (2000 parts per full reel).
  • U = Less than full reel
    In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter W instead.
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +85°C with Irms current
储存温度范围:
Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+100°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):
One per billion hours / one billion hours, calculated per Telcordia SR-332

性能曲线

Inductance vs. Frequency

Impedance vs. Frequency

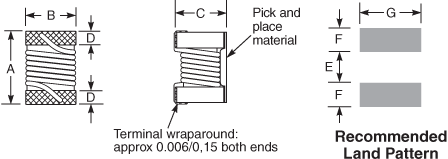

物理特性


A max B max C max D E F G
0.023 0.014 0.018 0.004 0.009 0.007 0.018 inches
0,58 0,36 0,46 0,10 0,23 0,18 0,46 mm

卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) A B C D E W P Po P1 H T part_or_i.gif
2000 178 100 13 14,4 8,4 8 2 4 2 NA 0,68



一般规格

核心材料:
Ferrite
重量:
0.12 – 0.20 mg

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
