ZA9710-AED Flyback Transformer for Texas Instruments

RoHS準拠 ハロゲンフリー
  • Designed for Texas Instruments IGBT/SiC isolated gate driver
  • Optimized for 300kHz with 4.5 – 70 V input
  • 3000 Vrms, 1 minute isolation (hipot) between primary and secondary
  • RoHS-compliant. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations
今すぐ購入:

The part number you have selected is not available through our online store.

Please click the "Request Quote" button for pricing and more information.

. 在庫あり、即日出荷可能.
サンプルを依頼:

一般的な用途

Texas Instruments IGBT/SiC isolated gate driverに対応

入力電圧 出力 電力 Fsw
Sec1 Sec2
4.5 V 70 V 15 V , 0.2 A 8 V , 0.2 A 4.6 W 300 kHz

仕様

Electrical specifications at 25°C.

部品番号 インダクタンス
@0A (µH) 1
(公差: ±10%)
Isat (A) DCR max (Ω) 漏れ
インダクタンス
最大 (µH) 3
巻数比 絶縁
電圧 (Vrms) 4
Pri Sec1 Sec2 Pri : Sec1 : Sec2
ZA9710-AED 30.0 3.3 0.169 0.324 0.190 0.350 1 : 1 : 0.53 3000
メモ
  1. Inductance is for the primary, measured at 300 kHz, 0.1 Vrms, 0 Adc.
  2. DC current that causes the primary inductance drop 30% from its value without current.
  3. Leakage inductance is for the primary and is measured with the secondary shorted.
  4. 3000 Vrms, one minute isolation (hipot) between windings.

終端処理:

  • RoHS tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

パッケージ:

  • 13" reel, machine-ready
    EIA-481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
環境
環境:
RoHS準拠 , ハロゲンフリー
周囲温度範囲:
–40°C to +85°C
保管温度範囲:
Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
時間内の障害(FIT)/平均障害間隔(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

回路図

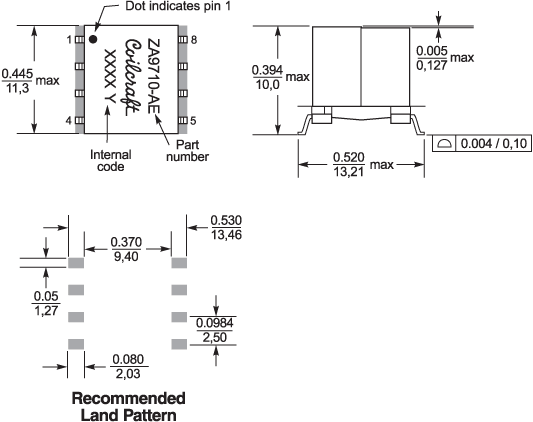

物理的特徴



テープ&リール仕様



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c-(4).gif
175 330 100 13 38,4 32,4 32 28 4 2 12,93 0,5

一般仕様

コア材料:
Ferrite
重量:
2.7 g
パッケージ:
350 per 13″ reel Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 10.4 mm pocket depth

はんだ付け/洗浄

湿度感度レベル(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
はんだに対する耐熱性:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。
PCB洗浄:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.
