Datasheet 3D Model

XGL4031-241

Name: XGL4031-241MEC
Brand: Coilcraft
SKU: XGL4031-241MEC
Price: 0.01 USD
Availability: InStock

XGL4031-241MEC

部品の詳細情報と仕様について

シリーズへ移動

今すぐ購入:

個数	単価
1	$0.01

大量のご注文または在庫のない商品については、お見積もりをご依頼ください。

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. 在庫あり、即日出荷可能.

サンプルを依頼:

仕様

Electrical specifications at 25°C. Operating voltage 80 V**

部品番号 1	インダクタンス (µH) 2 (公差: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
部品番号 1	インダクタンス (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XGL4031-241MEC	0.24	2.2	2.4	170	8.7	13.9	19.1	21.5	29.5

メモ

When ordering, please specify termination and packaging codes: e.g. XGL4031-561MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, air flow, and proximity to other components. Therefore temperature rise should be verified in application conditions. Temperature derating curves.

終端処理:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

パッケージ:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked.

環境

環境:

RoHS準拠 , ハロゲンフリー

周囲温度範囲:

–40°C to +125°C with (40°C rise) Irms current

保管温度範囲:

Component: –55°C to +165°C
Tape and reel packaging: –55°C to +80°C

最大部品温度:

+165°C (ambient + temp rise)

時間内の障害（FIT）/平均障害間隔（MTBF）:

See FIT/MTBF Calculations

性能曲線

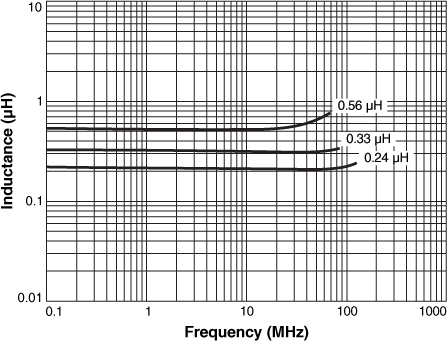

L vs Frequency

L vs Current

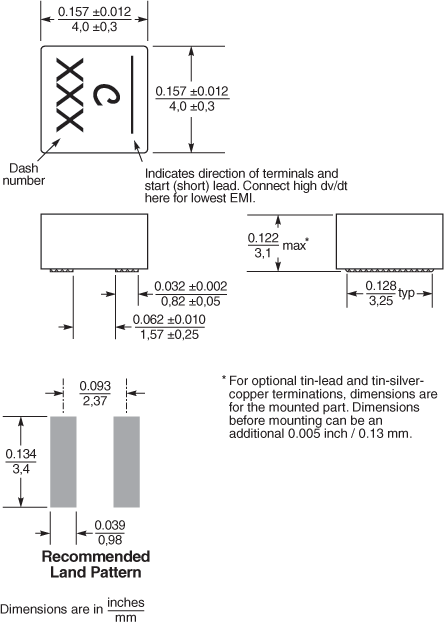

物理的特徴

テープ＆リール仕様

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2000*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,25	0,23

* Special order

一般仕様

コア材料:

Composite

重量:

0.27– 0.29 g

パッケージ:

500/7 ″ reel; 2000/13 ″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth

はんだ付け/洗浄

湿度感度レベル（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

はんだに対する耐熱性:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

はんだ付けする前に、 Coilcraftコンポーネントのはんだ付けを参照してください。

PCB洗浄:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
