Coilcraft LC Filter Designer Software

Coilcraft has teamed with Nuhertz Technologies to offer this customized version of their powerful FilterSolutions® software.

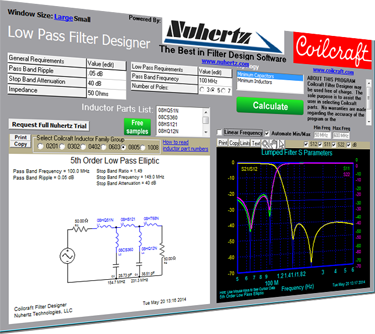

You can create elliptic low pass filters using actual Coilcraft inductance values, not just ideal components. Then request free inductor samples with the push of a button. This helps ensure that your simulated filter comes close to the performance of the real-world filter.

New in Version 3.4

Includes new 0402DF high inductance, low DCR inductors

Links from Parts List to web pages

64 and 32 bit versions

  • DesignLow Pass Elliptic filters
  • Select 3,  5, or 7 poles
  • 50 Ohm terminations
  • S-Parameter analysis in log and linear frequency scale
  • Minimum capacitor or minimum inductor topologies
  • Uses actual Coilcraft inductor data
  • Request free inductor samples
