DA2257-AL PoE Transformer

for TI LM5071 and LM5072

Developed for Texas Instruments LM5071 and LM5072 PD Controllers
Specified in TI application note AN-1430
Designed to operate in continuous mode at 250 kHz with input voltage of 14 – 60 V
Can accept 12 V input from auxiliary sources.
Dual secondaries, separate aux and gate windings
Industry standard EP13 surface mount package
Coilcraft's DA2383-AL and FA2519-AL are also specified by TI for LM5071 and LM5072
The FA2677-AL is specified by TI for LM5072

지금 구매:

개수	단품 가격
1	$2.70
175	$2.48
700	$2.25
1400	$1.88
2800	$1.67
5000	$1.53

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Texas Instruments LM5071와(과) 호환

입력 전압	출력				전력	FSW
입력 전압	Sec1	Sec2	Gate	Aux	전력	FSW
14 V — 60 V	3.3 V , 2 A	5 V , 1 A	5.5 V , 0.05 A	10 V , 0.05 A	11.6 W	250 kHz

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±10%)	인덕턴스 최소 @ 2.7 A (µH)	DCR max 3					누설 인덕턴스 최대 (µH) 4	권수비	절연 전압 (Vrms) 5
부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±10%)	인덕턴스 최소 @ 2.7 A (µH)	Pri (Ω)	Sec1 (mΩ)	Sec2 (mΩ)	Gate (mΩ)	Aux (mΩ)	누설 인덕턴스 최대 (µH) 4	Pri : Sec1 : Sec2 : Gate : Aux	절연 전압 (Vrms) 5
DA2257-ALD	35.0	30.0	0.062	10.000	18.000	138.000	225.000	0.95	1 : 0.167 : 0.278 : 0.278 : 0.5	2000

메모

When ordering, please specify packaging code: e.g. DA2257-ALD
Inductance is for the primary, measured at 250 kHz, 0.2 Vrms, 0 Adc.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary winding with all other pins shorted.
2000 Vrmsisolation from primary and aux to secondaries.

종단 처리:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C

보관 온도 범위:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

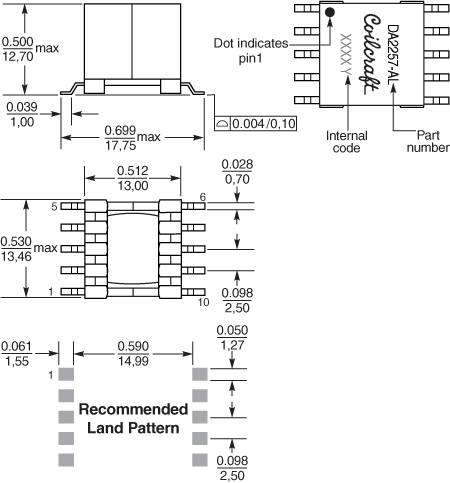

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	38,4	32,4	32	28	4	2	12,93	0,5

일반 사양

코어 소재:

Ferrite

중량:

6.35g

패키지:

175 per 13″ reel. Plastic tape: 32 mm wide, 0.5 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested with pure water or alcohol only. More Info.
