ZE2413-AE Isolated Buck Transformer

for STMicroelectronics A6986I and L6986I

Optimized for STMicroelectronics automotive Iso-Buck converter A6986I and L6986I
Compact footprint, only 11.7 x 10 mm
Suitable for automotive isolated IGBT/SiC gate driver, Onboard charger for HEV/EV, Electric Traction Systems, and similar applications
3300 Vrms, one minute isolation (hipot) from primary to secondary
AEC-Q200 qualified

지금 구매:

샘플 신청:

통상적인 적용 분야

STMicroelectronics A6986I and L6986I와(과) 호환

입력 전압	출력	FSW
5 V	8 V , 0.2 A	400 kHz

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) (허용 오차: ±10%)	인덕턴스 최소 @ 2 A (µH) 1	Isat (A) 2	DCR max		누설 인덕턴스 최대 (µH) 3	권수비	절연 전압 (Vrms) 4
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) (허용 오차: ±10%)	인덕턴스 최소 @ 2 A (µH) 1	Isat (A) 2	Pri (Ω)	Sec (mΩ)	누설 인덕턴스 최대 (µH) 3	Pri : Sec	절연 전압 (Vrms) 4
ZE2413-AED	18	14	2.6	0.056	352.000	0.18	1 : 2	3300

메모

Inductance is for the primary, measured on at 400 kHz, 0.2 Vrms, 2 Adc.
Isat: DC current that causes the primary inductance to drop 30% from its value without current.
Leakage Inductance is for the primary, measured at 400 kHz, 0.2 Vrms with secondary windings shorted together.
3300 Vrms, one minute isolation (hipot) measured between primary and secondary.

Designed per IEC 61558-1 to meet the following requirements. Please contact [email protected] for questions about suitability for use in other application conditions.

Reinforced insulation example	Basic insulation example
Working voltage 350 Vrms	Working voltage 800 Vrms
Altitude 3000 m	Altitude 3000 m
Overvoltage category II	Overvoltage category II
Pollution degree 2	Pollution degree 2

7 mm creepage and clearance between primary and secondary windings with Material Group I.

종단 처리:

RoHS tin-silver-copper over tin over nickel over phos bronze.

패키지:

D = 13" machine-ready reel
EIA 481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

−40°C to +125°C

보관 온도 범위:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

최고 부품 온도:

+165°C (Ambient + temperature rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

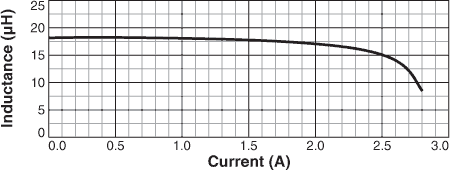

L vs Current

회로도

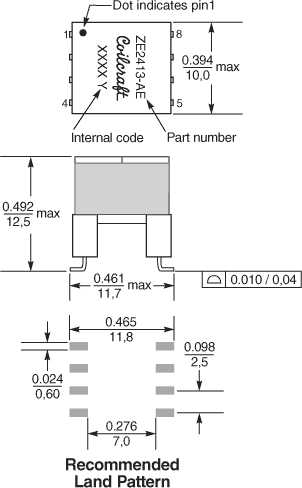

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	38,4	32,4	32	20	4	2	12,3	0,5

일반 사양

코어 소재:

Ferrite

중량:

2.4 − 2.7 g

패키지:

200/13″ reel Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 4.3 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
