DFC7045 Series

Common Mode Chokes

The DFC7045 Series automotive-grade common mode chokes feature a compact chip-style construction, manufactured with a highly automated process to ensure exceptional quality, reliability, and cost-effectiveness.
Optimized for high frequency common mode noise suppression, the DFC7045 offers a small footprint with high current capability, making it an excellent choice for EMI filtering in power lines.

Automotive-qualified, this series is ideal for automotive DC/DC converters and power supplies that require compact, high-performance EMI suppression in space-constrained designs.

Miniature, low-profile common mode choke; only 3.3 mm tall
Smaller footprint and higher current capability than typical parts on the market
Provides exceptional high-frequency common mode noise attenuation
Designed and fabricated for systems mounted in harsh automotive conditions
AEC-Q200 qualified

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$1.42
100	$1.33
250	$1.23
500	$1.13
1000	$1.03

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

R = Tin over nickel over silver glass frit

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

사양

Electrical specifications at 25°C.

부품 번호 1	라인	공통 모드 피크 임피던스 (Ω)	인덕턴스 (µH) 2 (허용 오차: ±25%)	누설 인덕턴스 최대 (µH) 3	Irms (A) 4	DCR max (mΩ) 5	절연 전압 (Vrms) 6
부품 번호 1	라인	공통 모드 피크 임피던스 (Ω)	인덕턴스 (µH) 2 (허용 오차: ±25%)	누설 인덕턴스 최대 (µH) 3	Irms (A) 4	DCR max (mΩ) 5	절연 전압 (Vrms) 6
DFC7045-222RC	2	250 @ 100 MHz	2.2	0.20	9.1	10	1060
DFC7045-372RC	2	450 @ 100 MHz	3.7	0.35	7.8	17	1060
DFC7045-502RC	2	710 @ 100 MHz	5.0	0.44	6.7	21	1060

메모

When ordering, please specify termination and packaging codes: e.g. DFC7045-502RC
Inductance is measured at 100 kHz, 0.1 Vrms, 0 ADC on an Agilent 4263B (or equivalent).
Leakage Inductance LL is measured at 100 kHz, 0.1 Vrms on an Agilent 4263B (or equivalent) with pins 3,4 shorted.
Irms: Current that causes a 40°C temperature rise from 25°C.
DCR is measured on a Keithley 580 Micro-ohmmeter (or equivalent). For other operating temperatures, use this DCR at Temperature calculator.
1500 VDC / 1060 Vrms, one minute isolation (hipot) measured between primary and secondary.

종단 처리:

R = RoHS compliant tin over nickel over silver glass frit.

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2200 parts per full reel).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C with Irms current

보관 온도 범위:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+140°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

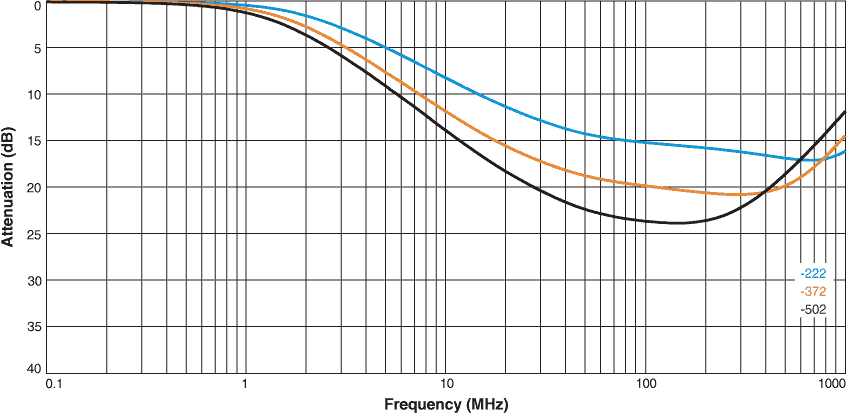

Attenuation vs Frequency

Common Mode

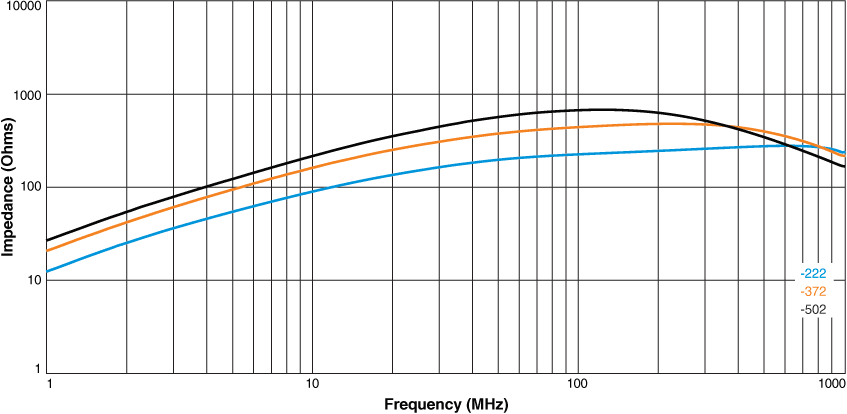

Impedance vs Frequency

Common Mode

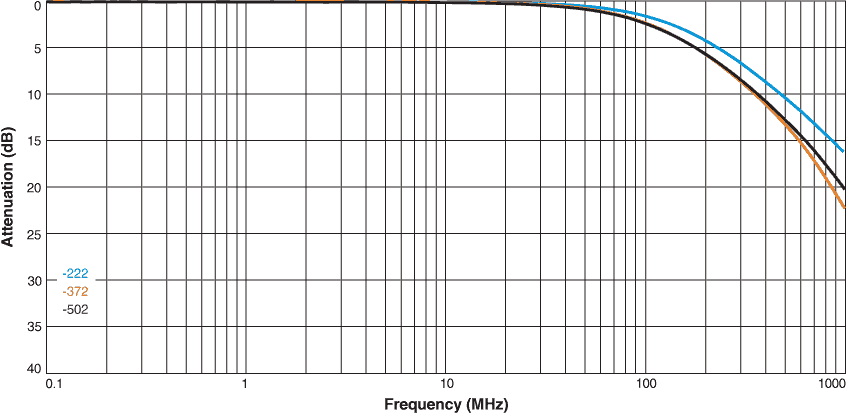

Attenuation vs Frequency

Differential Mode

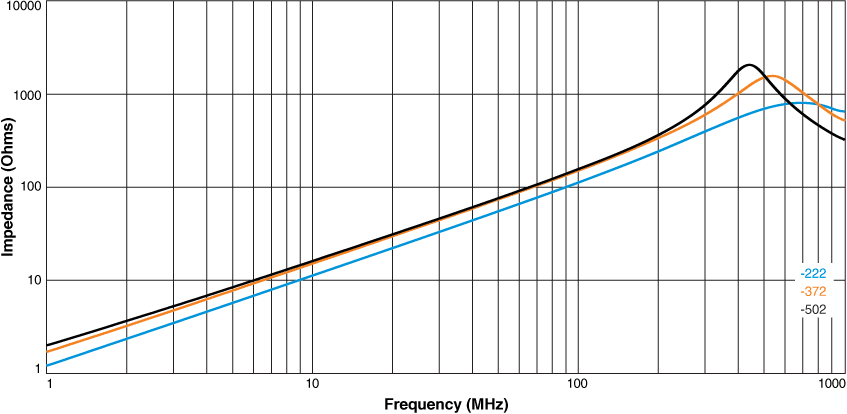

Impedance vs Frequency

Differential Mode

회로도

물리적 특성

A max	B max	C max	D	E	F	G
0.281	0.181	0.134	0.008	0.059	0.053	0.169	inches
7,15	4,60	3,40	0,203	1,50	1,35	4,30	mm

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2200*	178/330	60/100	13	22,4	16,4	16	8	4	2	3,5	0,4

*Special order

일반 사양

코어 소재:

Ferrite

중량:

0.53 – 0.54 g

패키지:

500/7″ reel; 2200/13″ reel; Plastic tape: 16 mm wide, 0.4 mm thick, 8 mm pocket spacing, 3.5 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
