CD1480-BL Common Mode Choke

for Power Line Applications

Low profile toroid construction
Surface mount, magnetically shielded package
Up to 4.53 kOhms impedance at 2.2 MHz
1000 Vrms isolation (hipot) between windings
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. 260°C compatible. Tin-silver-copper over copper terminations.

지금 구매:

개수	단품 가격
1	$6.02
100	$5.85
250	$4.38
500	$2.64
1000	$2.07
2500	$1.77
5000	$1.62

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

L = Tin-silver-copper

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1	라인	공통 모드 피크 임피던스 (kΩ)	인덕턴스 최소 (mH) 2	Irms (A) 3	DCR max (mΩ) 4	절연 전압 (Vrms) 5
부품 번호 1	라인	공통 모드 피크 임피던스 (kΩ)	인덕턴스 최소 (mH) 2	Irms (A) 3	DCR max (mΩ) 4	절연 전압 (Vrms) 5
CD1480-BLD	2	4.53 @ 2.2 MHz	0.85	3.5	60.0	1000

메모

When ordering, please specify packaging code: e.g. CD1480-BLD
Inductance shown for each winding, measured at 1 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Isolation (hipot) measured for two seconds

종단 처리:

RoHS compliant tin-silver-copper over copper.

패키지:

D = 13" machine-ready reel
EIA-481 embossed plastic tape (250 per full reel).
B = Less than full reel
In tape, not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C with Irms current

보관 온도 범위:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+125°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

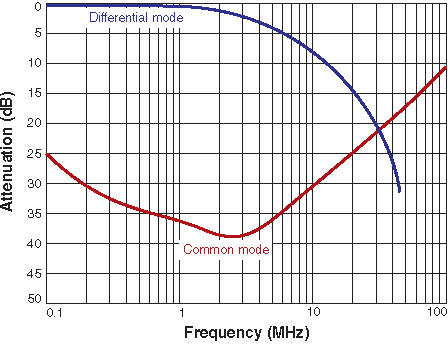

Attenuation (Ref: 50 Ohms)

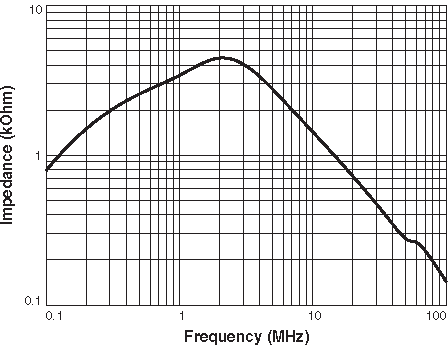

Impedance

회로도

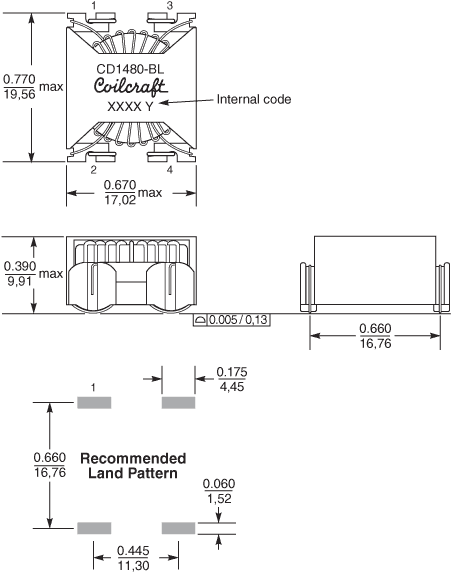

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	330	100	13	38,4	32,4	32	24	4	2	10,1	0,5

일반 사양

코어 소재:

Ferrite

중량:

4.5 g

패키지:

250/13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 10.1 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
