Datasheet 3D Model

NA5730-AL

Name: NA5730-ALD
Brand: Coilcraft
SKU: NA5730-ALD
Price: 3.27 USD
Availability: InStock

NA5730-ALD

부품에 대한 추가 정보 및 사양.

시리즈로 이동

지금 구매:

개수	단품 가격
1	$4.38
175	$3.75
700	$3.27
1400	$2.77
2800	$2.37
5000	$2.17

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Texas Instruments TPS23751/2와(과) 호환

입력 전압	출력 1		전력	FSW
입력 전압	Sec	Bias	전력	FSW
33 V — 57 V	5 V , 4.5 A	12 V , 0.02 A	22.5 W	250 kHz

사양

Electrical specifications at 25°C.

부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 2.1 A (µH) 4	DCR max 5				누설 인덕턴스 최대 (µH) 6	권수비 7	절연 전압 (Vrms) 8
부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 2.1 A (µH) 4	Pri (Ω)	Sec (mΩ)	Drive (mΩ)	Bias (mΩ)	누설 인덕턴스 최대 (µH) 6	Pri : Sec : Drive : Bias	절연 전압 (Vrms) 8
NA5730-ALD	62.0	55.8	0.107	4.000	60.000	122.000	2.0	1 : 0.125 : 0.125 : 0.29	1500

메모

Output of the secondary is with the windings connected in parallel. Bias winding output is 12 V, 20 mA. Drive winding output is 5 V, 10 mA.
When ordering, please specify packaging code: e.g. NA5730LD
Inductance is for the primary, measured at 250 kHz, 0.1 Vrms, 0 Adc
Peak primary current drawn at minimum input voltage.
DCR for the primary and the secondary is with windings connected in parallel. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary, measured with the windings connected in parallel and with the secondary windings shorted.
Turns ratio is with the primary windings and the secondary windings connected in parallel.
1500 Vrms, one minute isolation, primary and bias to secondary and drive.

종단 처리:

RoHS-compliant 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

Primary windings and secondary
windings to be connected
in parallel on the PC board

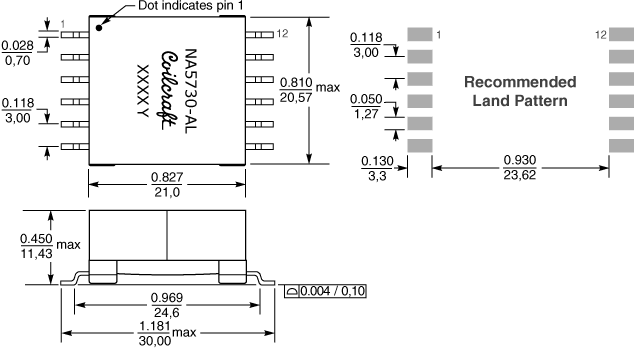

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	28	4	2	11,9	0,4

일반 사양

코어 소재:

Ferrite

중량:

11.3 g

패키지:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 11.9 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested with pure water or alcohol only. More info.
