YA9219 Surface Mount

Wideband RF Transformer

The YA9219-AL Wideband Transformer with an integrated common-mode choke combines high-speed signal transmission, isolation, and effective common-mode noise filtering in a single compact component. This integrated design helps simplify PCB layout, save valuable board space, and ensure compliance with EMI/EMC requirements, while maintaining the high performance required for 10GBASE-T1 Ethernet applications.

Cost effective surface mount wideband transformer
300 V one minute isolation (hipot) from primary to secondary
AEC-Q200 qualified

지금 구매:

샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	권선당 최소 L (µH) 1		DCR max (mΩ) 2		대역폭 (MHz)	절연 전압 (Vrms) 3	권수비
부품 번호 (Hover for schematics)	Pri	Sec	Pri	Sec	대역폭 (MHz)	절연 전압 (Vrms) 3	권수비
YA9219-ALD	127	65	350	150	- — -	300	1 : 0.714

메모

Inductance tested at 10 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
300 Vrms, one minute isolation (hipot) from primary to secondary.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

종단 처리:

Terminations RoHS compliant tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

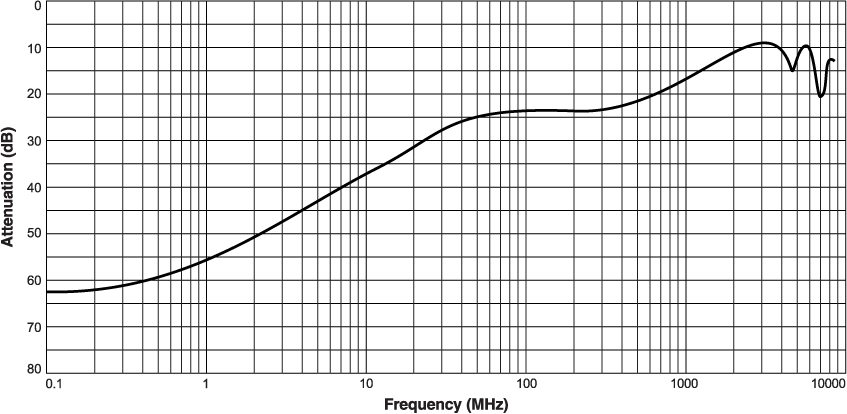

Attenuation vs Frequency (Scc21)

Insertion Loss (Sdd21)

Return Loss (Sdd11)

회로도

Connect pin 6 and pin 4 on PC board.

물리적 특성

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
	1000	330	100	13	22,4	16,4	16	12	4	2	5,0	0,35

일반 사양

코어 소재:

Ferrite

중량:

250 – 270 mg

패키지:

1000/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.0 mm pocket depth

납땜/세척

수분 민감도(MSL):

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCBt_Washing.pdf.
