RFC1010B Series

Power Inductors

RoHS 준수 할로겐 프리 AEC-Q flag
For values <68 µH, please consider the RFB1010 series. The RFB1010 is the same size and has the same PC board layout.
Coilcraft RFC1010B Series unshielded, radial-leaded inductors are a low-cost option for general-purpose applications. RFC1010B Series are cost-reduced higher inductance versions.
  • Open magnetic path
  • Rugged through-hole (TH) mount construction
  • High saturation current ratings
  • Ferrite core gives flat L vs I curve
  • AEC-Q200 Grade 3 (−40°C to +85°C)

지금 구매:
개수 단품 가격
1 $1.32
150 $1.08
300 $0.81
600 $0.48
1050 $0.38
2550 $0.32
5100 $0.30
10000 $0.27

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1 인덕턴스 (mH) 2
(허용 오차: ±10%)
DCR (Ω) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
RFC1010B-683KE 0.068 0.10 0.12 5.6 3.2 3.7 3.9 1.8 2.4
RFC1010B-823KE 0.082 0.11 0.13 5.4 3.0 3.4 3.7 1.7 2.3
RFC1010B-104KE 0.100 0.13 0.15 4.7 2.7 3.0 3.3 1.6 2.2
RFC1010B-124KE 0.12 0.17 0.20 4.3 2.4 2.8 3.0 1.4 1.9
RFC1010B-154KE 0.15 0.20 0.23 4.0 2.2 2.5 2.7 1.3 1.8
RFC1010B-184KE 0.18 0.26 0.30 3.4 2.0 2.3 2.4 1.1 1.6
RFC1010B-224KE 0.22 0.29 0.34 3.1 1.9 2.1 2.3 1.1 1.5
RFC1010B-274KE 0.27 0.38 0.44 2.8 1.7 1.9 2.0 0.90 1.3
RFC1010B-334KE 0.33 0.44 0.50 2.6 1.5 1.7 1.8 0.85 1.2
RFC1010B-394KE 0.39 0.49 0.56 2.4 1.4 1.6 1.7 0.82 1.1
RFC1010B-474KE 0.47 0.63 0.73 2.1 1.3 1.4 1.5 0.72 1.0
RFC1010B-564KE 0.56 0.70 0.81 1.9 1.2 1.3 1.4 0.68 0.92
RFC1010B-684KE 0.68 0.97 1.1 1.7 1.1 1.2 1.3 0.58 0.78
RFC1010B-824KE 0.82 1.1 1.2 1.6 0.95 1.1 1.2 0.54 0.74
RFC1010B-105KE 1.0 1.2 1.4 1.5 0.90 1.0 1.1 0.50 0.70
RFC1010B-125KE 1.2 1.6 1.9 1.3 0.75 0.90 0.96 0.43 0.61
RFC1010B-155KE 1.5 1.8 2.1 1.2 0.70 0.81 0.86 0.41 0.58
RFC1010B-185KE 1.8 2.4 2.8 1.1 0.64 0.71 0.77 0.36 0.50
RFC1010B-225KE 2.2 2.8 3.2 0.99 0.58 0.65 0.70 0.33 0.47
RFC1010B-275KE 2.7 3.7 4.2 0.82 0.53 0.59 0.63 0.29 0.41
RFC1010B-335KE 3.3 4.2 4.8 0.75 0.48 0.53 0.57 0.28 0.38
RFC1010B-395KE 3.9 4.7 5.3 0.71 0.45 0.49 0.53 0.26 0.36
RFC1010B-475KE 4.7 6.1 7.0 0.61 0.41 0.45 0.48 0.22 0.32
RFC1010B-565KE 5.6 6.8 7.8 0.57 0.37 0.41 0.44 0.21 0.30
RFC1010B-685KE 6.8 8.9 10.0 0.49 0.34 0.38 0.40 0.18 0.26
RFC1010B-825KE 8.2 10.0 11.0 0.46 0.32 0.35 0.37 0.17 0.25
RFC1010B-106KE 10 14.0 15.5 0.43 0.29 0.31 0.33 0.15 0.21
RFC1010B-126KE 12 16.0 17.5 0.41 0.25 0.28 0.30 0.14 0.18
RFC1010B-156KE 15 18.0 19.5 0.38 0.23 0.26 0.28 0.13 0.17
RFC1010B-186KE 18 23.0 25.0 0.33 0.21 0.23 0.24 0.12 0.15
메모
  1. When ordering, please specify lead length and termination codes: e.g. RFC1010B-186KE
  2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc; measured on an Agilent/HP 4284A LCR meter or equivalent.
  3. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4191A or equivalent. Details
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

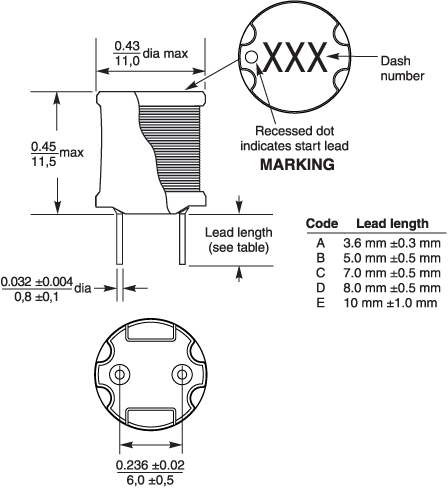

리드 길이:

  • A = 3.6 mm ±0.3 mm (special order)
  • B = 5.0 mm ±0.5 mm
  • C = 7.0 mm ±0.5 mm (special order)
  • D = 8.0 mm ±0.5 mm (special order)
  • E = 10.0 mm ±1.0 mm (special order)

종단 처리:

  • E = RoHS compliant tin-silver over tin over copper over steel.
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)
환경
환경:
RoHS 준수 , 할로겐 프리
주변 온도 범위:
–40°C to +85°C with (40°C rise) Irms current
보관 온도 범위:
Component: –40°C to +125°C.
Tray or tape packaging: –40°C to +80°C
최고 부품 온도:
+125°C (ambient + temp rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

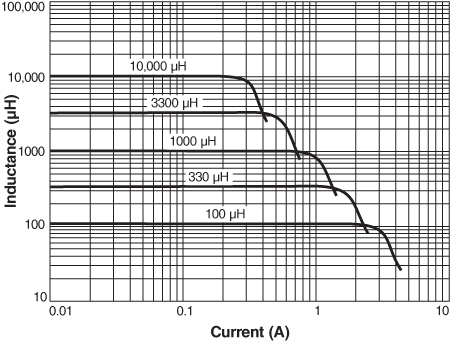

Inductance vs. Current

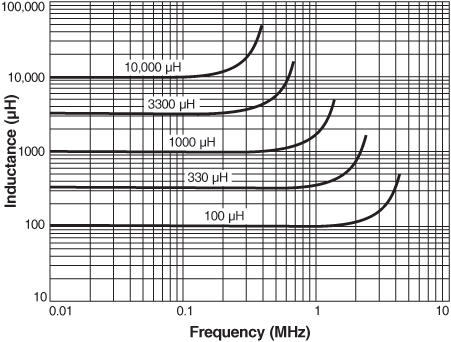

Inductance vs. Frequency

물리적 특성




일반 사양

코어 소재:
Ferrite
중량:
3.2 – 3.7 g
패키지:
150 parts per tray

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
