SD54 Series

Surface Mount Power Inductors

RoHS 준수
Coilcraft SD54 Series unshielded surface-mount power inductors are mechanically rugged and affordably priced. They offer high current ratings and low DC resistance for  greater efficiency.
  • Open magnetic path design
  • Cost-effective solution
  • Ferrite core construction
  • High saturation current ratings and low DCR
지금 구매:
개수 단품 가격
1 $1.10
400 $0.88
800 $0.52
1600 $0.41
3200 $0.36
4800 $0.33

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1 인덕턴스 (µH) 2 허용 오차 (%) DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
SD54-103ML_ 10 20 - 78.6 28.0 2.0 2.3 2.4 1.7 2.3
SD54-123ML_ 12 20 80.2 88.2 26.0 1.8 2.0 2.2 1.6 2.2
SD54-153ML_ 15 20 94.0 103 23.0 1.5 1.8 1.9 1.5 2.1
SD54-183ML_ 18 20 103 113 21.0 1.4 1.6 1.8 1.4 2.0
SD54-223ML_ 22 20 119 130 19.0 1.3 1.5 1.6 1.3 1.8
SD54-273ML_ 27 20 134 147 18.0 1.2 1.4 1.4 1.2 1.7
SD54-333ML_ 33 20 150 165 16.0 1.1 1.2 1.3 1.2 1.6
SD54-393ML_ 39 20 195 214 13.0 1.0 1.1 1.2 1.0 1.4
SD54-473ML_ 47 20 222 244 12.0 0.92 1.0 1.1 0.97 1.3
SD54-563KL_ 56 10 251 276 11.0 0.83 0.96 1.0 0.92 1.3
SD54-683KL_ 68 10 335 368 9.3 0.76 0.88 0.95 0.80 1.1
SD54-823KL_ 82 10 379 416 8.4 0.69 0.80 0.85 0.74 1.1
SD54-104KL_ 100 10 503 553 7.4 0.62 0.72 0.77 0.64 0.88
SD54-124KL_ 120 10 579 636 7.0 0.56 0.66 0.71 0.58 0.80
SD54-154KL_ 150 10 654 719 6.3 0.51 0.60 0.64 0.57 0.77
SD54-184KL_ 180 10 874 961 5.5 0.46 0.53 0.57 0.49 0.67
SD54-224KL_ 220 10 996 1095 5.0 0.43 0.50 0.54 0.47 0.66
메모
  1. When ordering, please specify packaging code: e.g.SD54-224-KLC
  2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4284A impedance analyzer or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

  • RoHS compliant tin-silver over tin over nickel over silver.

패키지:

  • C = 7″ machine-ready reel. EIA-481 embossed plastic tape (400 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1500 parts per full reel).
  • B = In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
환경
환경:
RoHS 준수
주변 온도 범위:
−40°C to +85°C with (40°C rise) Irms
보관 온도 범위:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
최고 부품 온도:
+125°C (Ambient + temperature rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

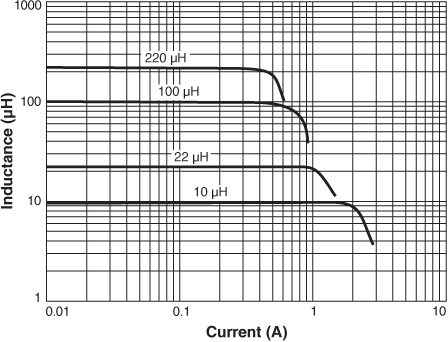

Inductance vs. Current

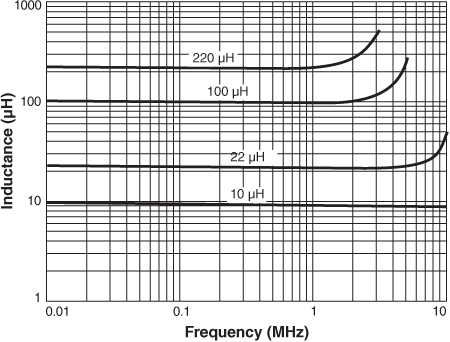

Inductance vs. Frequency

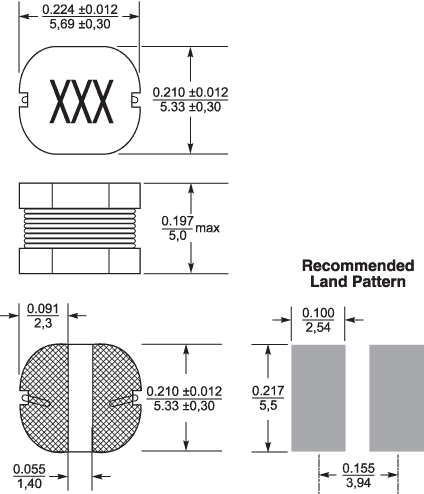

물리적 특성



테이프 및 릴 사양



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_q-(1).gif
400 1500* 178/330 60/100 13 18,4 12,4 12 8 4 2 4,7 0,4
* Special order


일반 사양

코어 소재:
Ferrite
중량:
0.35 – 0.43 g
패키지:
400/7″ reel; 1500/13″ reel; Plastic tape: 12 mm wide, 0.4 mm thick, 8 mm pocket spacing, 4.7 mm pocket depth

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
