EPL2010 Series

Shielded Power Inductors

RoHS 준수 할로겐 프리 AEC-Q flag

EPL2010 molded surface mount power inductors are cost effective and ideal for applications requiring a miniature footprint. Their magnetic shielding allows for high-density mounting, and soft saturation assures peak current handling.

  • Compact, cost-effective molded power inductors
  • Soft saturation for peak current handling
  • Magnetically shielded
  • AEC-Q200 Grade 3 (-40°C to +85°C) with no thermal aging
Need parts for space, military or other critical applications? See Coilcraft CPS 338PWA series.
지금 구매:
개수 단품 가격
1 $0.68
250 $0.56
500 $0.34
1000 $0.26
2000 $0.23
4000 $0.21

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:
설계자용 키트:
키트 가격
C412 14 (5 of each) $45.00

사양

Electrical specifications at 25°C.

부품 번호 1 인덕턴스 (µH) 2
(허용 오차: ±20%)
DCR (Ω) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
EPL2010-181ML_ 0.18 0.024 0.029 615 1.3 2.2 2.9 2.4 3.2
EPL2010-271ML_ 0.27 0.032 0.038 412 1.2 2.1 2.6 1.8 2.3
EPL2010-421ML_ 0.42 0.040 0.048 283 1.0 1.6 2.2 1.7 2.2
EPL2010-681ML_ 0.68 0.058 0.070 214 0.80 1.3 2.0 1.5 1.9
EPL2010-821ML_ 0.82 0.068 0.082 173 0.70 1.2 1.6 1.3 1.7
EPL2010-102ML_ 1.0 0.099 0.12 145 0.65 1.0 1.4 1.0 1.4
EPL2010-152ML_ 1.5 0.14 0.16 102 0.60 0.95 1.3 0.80 1.0
EPL2010-222ML_ 2.2 0.20 0.22 80.0 0.43 0.78 1.1 0.75 0.98
EPL2010-332ML_ 3.3 0.27 0.30 63.0 0.35 0.63 0.85 0.67 0.88
EPL2010-472ML_ 4.7 0.43 0.47 50.0 0.30 0.47 0.65 0.53 0.68
EPL2010-682ML_ 6.8 0.51 0.56 46.0 0.24 0.43 0.57 0.44 0.58
EPL2010-822ML_ 8.2 0.83 0.91 42.0 0.22 0.40 0.53 0.42 0.52
EPL2010-103ML_ 10 0.91 1.0 33.0 0.20 0.35 0.47 0.39 0.50
EPL2010-123ML_ 12 0.94 1.1 32.0 0.15 0.26 0.35 0.38 0.48
메모
  1. When ordering, please specify termination and packaging codes: e.g. EPL2010-103MLC
  2. Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4395A or equivalent.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

  • L = Tin-silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum.
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

패키지:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
환경
환경:
RoHS 준수 , 할로겐 프리
주변 온도 범위:
−40°C to +85°C with (40°C rise) Irms
보관 온도 범위:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
최고 부품 온도:
+125°C (Ambient + temperature rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

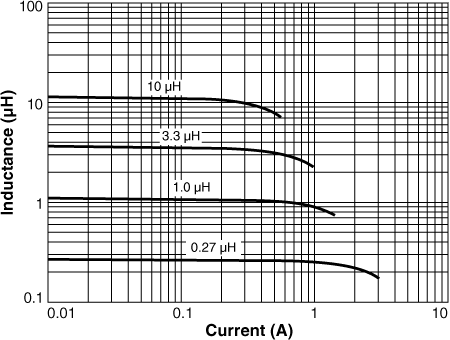

Inductance vs Current

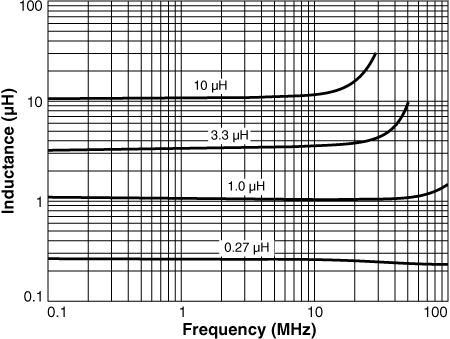

Inductance vs Frequency

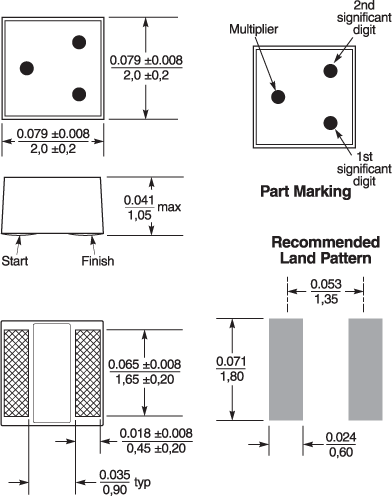

물리적 특성



For optional tin-lead and tin-silver-copper terminations, dimensions are for the mounted part. Dimensions before mounting can be an
additional 0.005 inch / 0.13 mm.

Small surface blemishes are not unusual and do not adversely affect performance.
Wire may be visible inside the voids.
Acceptable void sizes:
Top: 0.01 in / 0,254 mm × 0.01 in / 0,254 mm
Sides: 0.02 in / 0,5 mm × 0.047 in / 1,2 mm



부품 표식

(Parts manufactured prior to October 20, 2009 may not be marked.)

  Part number Value 1st digit 2nd digit Multiplier
epl_marking-(1).gif EPL2010-181 0.18 µH Brown Gray Brown
EPL2010-271 0.27 µH Red Violet Brown
EPL2010-421 0.42 µH Yellow Red Brown
EPL2010-681 0.68 µH Blue Gray Brown
EPL2010-821 0.82 µH Gray Red  Brown
EPL2010-102 1.0 µH Brown Black Red
EPL2010-152 1.5 µH Brown Green Red
EPL2010-222 2.2 µH Red Red Red
EPL2010-332 3.3 µH Orange Orange Red
EPL2010-472 4.7 µH Yellow Violet  Red
EPL2010-682 6.8 µH Blue Gray Red
EPL2010-822 8.2 µH Gray Red Red
EPL2010-103 10 µH Brown Black Orange
EPL2010-123 12 µH Brown Red Orange
Note: All marked parts have three dots. Black dot, used only on -102 and -103 as the second significant digit, may be very difficult to see.

테이프 및 릴 사양


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_am.gif
2000 7500* 178/330 60/100 13 14,4 8,4 8 4 4 2 1,3 0,28
* Special order

일반 사양

코어 소재:
Ferrite
중량:
13 – 18 mg
패키지:
2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.28 mm thick, 4 mm pocket spacing, 1.3 mm pocket depth

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
