3D Model Datasheet

GA3252 Series

SMT High Current Power Inductor for TI LM3433 LED Driver

This high-current toroidal inductor was developed for Texas Instruments LM3433 High Brightness LED Driver and is specified by Texas Instruments for 2 A to 14 A output applications.

Developed for Texas Instruments LM3433 High Brightness LED Driver
Specified by Texas Instruments for 2 A to 14 A output applications
SER1360-602 specified for output applications up to 6 A
Magnetic shielding to minimize EMI
Ferrite core for flat L vs I

지금 구매:

개수	단품 가격
1	$5.74
200	$4.91
600	$4.28
1200	$3.34
2400	$2.88
4800	$2.64

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

L = Tin-silver

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
부품 번호 1	인덕턴스 (µH) 2 (허용 오차: ±20%)	DCR max (mΩ) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
GA3252	12	17.0	20.0	6.5	8.0	13.0	6.5	10.0

메모

When ordering, please specify termination and packaging codes: e.g. GA3252-ALD
Inductance measured at 100 kHz, 0.1 V, 0 Adc using an Agilent/HP 4192A impedance analyzer or equivalent.
DCR measured on Keithley 580 micro-ohmmeter or equivalent
SRF measured on an Agilent/HP 8753ES network analyzer
Isat: DC current at 25°C that causes the specified inductance drop from its value without current
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings

종단 처리:

L = RoHS compliant tin-silver (96.5/3.5) over copper.
T = RoHS tin-silver-copper (95.5/4/0.5) over copper. (Special order, added cost)
S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

패키지:

D = 13" reel, machine-ready
EIA-481 embossed plastic tape (200 per full reel).
B = Less than full reel
On tape not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C with Irms current, +85°C to +125°C with derated current

보관 온도 범위:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+125°C (Ambient + temperature rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

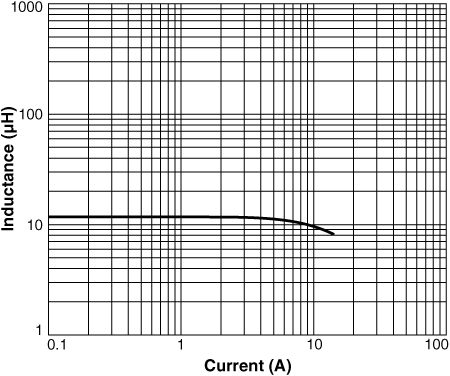

Inductance vs. Current

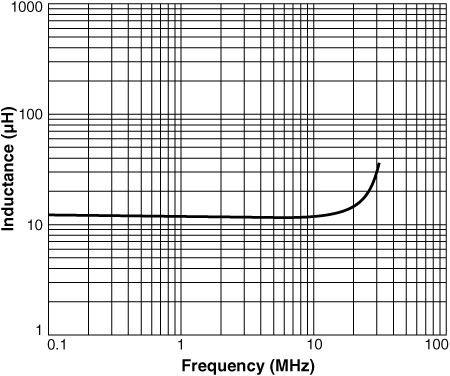

Inductance vs. Frequency

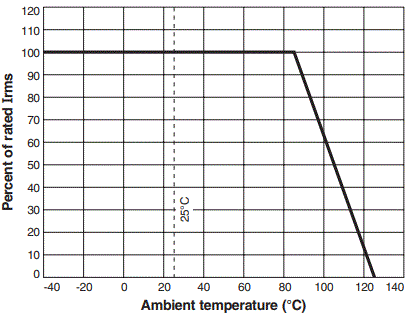

Irms Derating

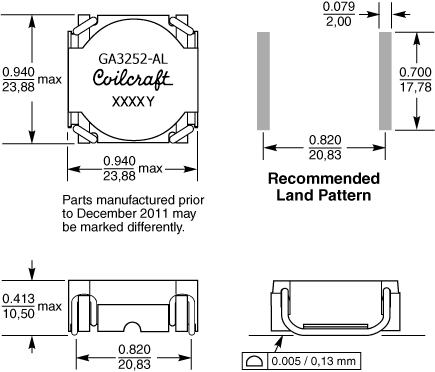

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	10,4	0,5

일반 사양

코어 소재:

Ferrite

중량:

11.6 g

패키지:

200 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 10.4 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Only pure water or alcohol recommended

GA3252 Series

SMT High Current Power Inductor for TI LM3433 LED Driver
