ED0006-AL

Toroidal Power Filter Inductor

RoHS 준수
Coilcraft's ED0006-AL toroidal power choke has flat inductance vs current characteristics.  It was developed as a Class-D low-pass filter element.
  • Developed for the Zetex ZXCD1210 analog input Class-D modulator
  • Also recommended by Zetex for their ZXCD1000 high fidelity Class- D amplifier solution
  • Acts as a low pass filter for the high frequency switching PWM signal
지금 구매:
개수 단품 가격
1 $4.77
250 $4.08
500 $3.55
1000 $2.80
2500 $2.42
5000 $2.23

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 인덕턴스 (µH) 1
(허용 오차: ±20%)
DCR max (mΩ) 2 SRF typ (MHz) Isat (mA) 3 Irms (A) 4
20°C rise 40°C rise
ED0006-AL 20 42.0 13.0 36000 5.1 7.2
메모
  1. Inductance measured at 100 kHz, 100 mVrms, 0 A using an Agilent/HP 4132 impedance analyzer or equivalent.
  2. DCR measured at 25°C on a Valhalla 4105 ATC digital ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
  3. Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current.
    Temperature derating curves.
  4. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.



종단 처리:

  • Tin-silver-copper over copper.
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +125°C with Irms current. +125°C to +165°C with derated current
보관 온도 범위:
Component: −40°C to +165°C
Packaging trays: −40°C to +80°C
최고 부품 온도:
+165°C (Ambient + temperature rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

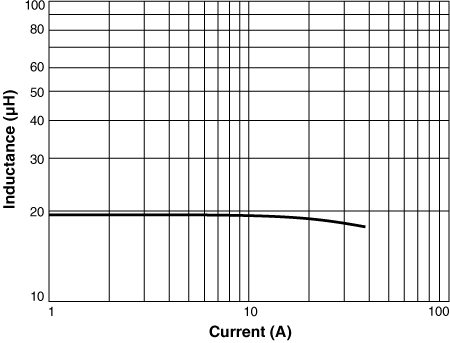

Inductance vs Current

ESR vs. Frequency

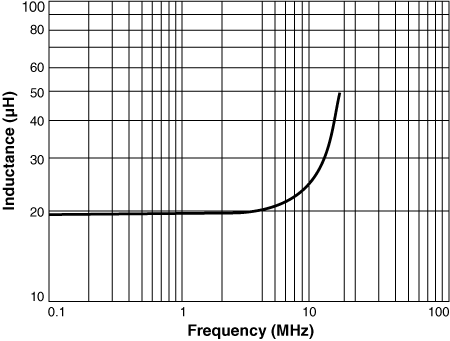

Inductance vs Frequency

Temperature Rise vs. Current

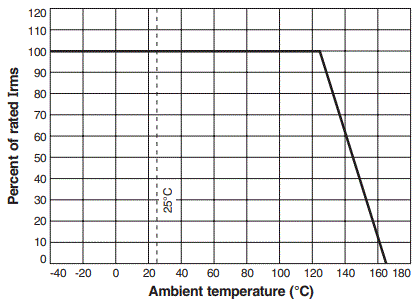

Irms Derating

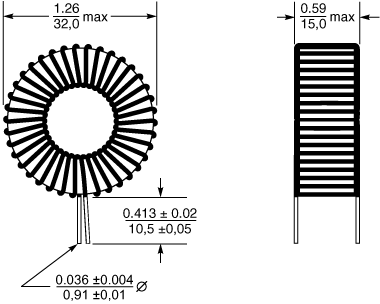

물리적 특성


일반 사양

중량:
30.8 g
패키지:
25 per tray

납땜/세척

납땜 열 내성:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
